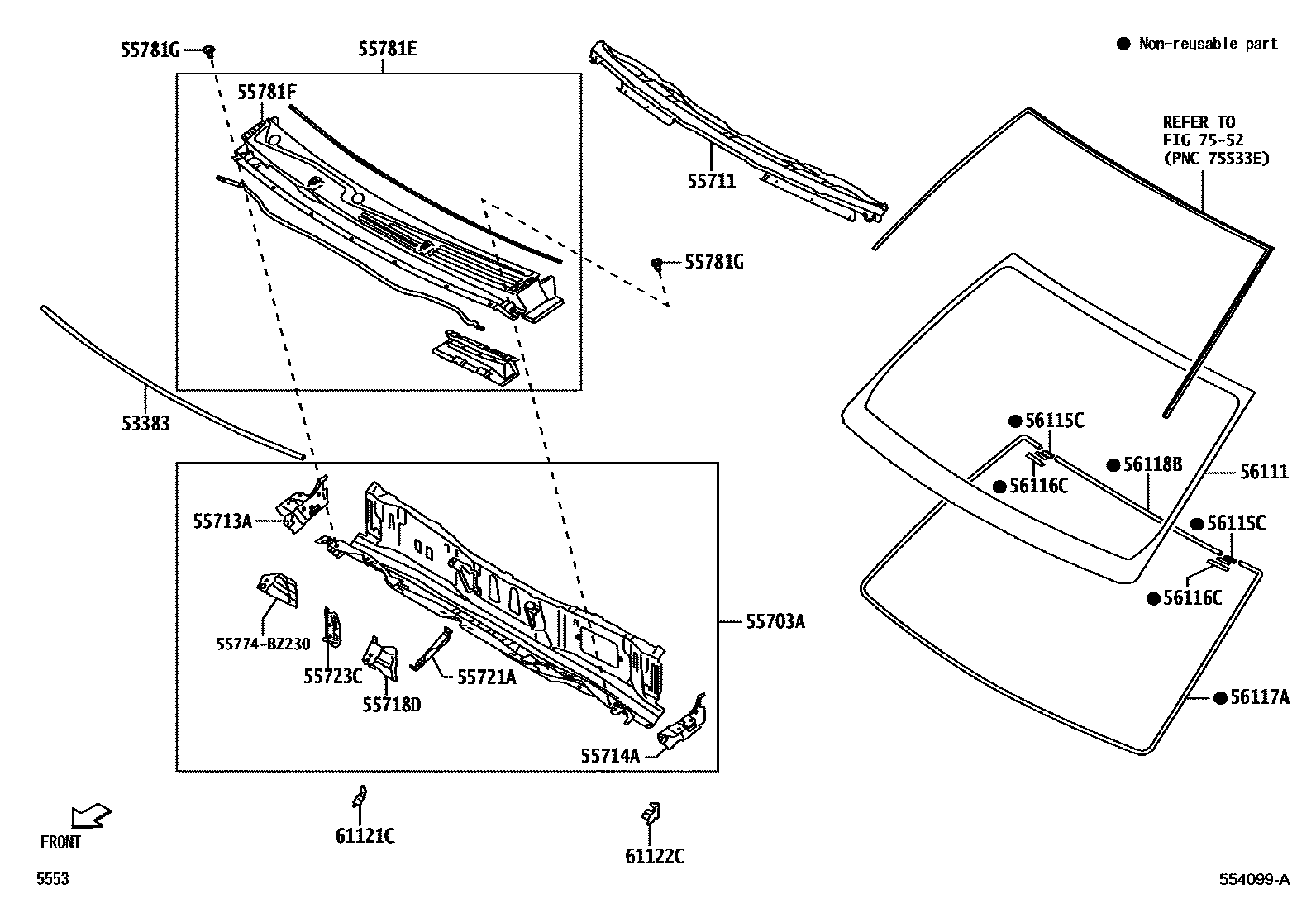

Toyota RUSH — COWL PANEL & WINDSHIELD GLASS

0001 1RHD 0002 1LHD

53383SEAL, HOOD TO COWL TOP

main53383-BZ090iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ660iF800..RHD201712

main55703-BZ670iF800..MID..PH201804-202305

55711PANEL, COWL TOP, OUTER

main55711-BZ290iF800..RHD201712

main55711-BZ300iF800..MID..PH201804-202305

55713APANEL, COWL TOP SIDE, RH

main55713-BZ210iF800..MID..PH201712-202305

55714APANEL, COWL TOP SIDE, LH

main55714-BZ180iF800..MID..PH201712-202305

55718DBRACKET, COWL TOP OUTER PANEL, NO.1

main55747-BZ140iF800..RHD201712

55721ABRACE, COWL TOP TO COWL, INNER NO.1

main55721-BZ140iF800..MID..PH201712-202305

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-BZ170iF800..RHD201712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-BZ080iF800..RHD201712

main55708-BZ130iF800..MID..PH201804-202305

55781FLOUVER, COWL TOP VENTILATOR

main55781-BZ250iF800..RHD201712

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67579-C2×2iF800..MID..PH201712-202305

BLACK

56111GLASS, WINDSHIELD

main56111-BZ530iF800201712-201812

L/IDN MARK

main56111-BZ531iF800..MID..PH201812-202305

W/IDN MARK

56115CSTOPPER, WINDSHIELD GLASS

main56115-97402×2iF800..MID..PH201712-202305

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iF800..MID..PH201712-202305

56117ADAM, WINDOW GLASS ADHESIVE

main56117-BZ210iF800..MID..PH201712-202305

L=2966

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-BZ230iF800..MID..PH201712-202305

L=760

61121CPANEL, COWL SIDE, OUTER RH

main61121-BZ050iF800..MID..PH201712-202305

61122CPANEL, COWL SIDE, OUTER LH

main61122-BZ050iF800..MID..PH201712-202305

7552

55774BZ230RETAINER, WIPER SHAFT SIDE

main55774-BZ230

20 parts on this diagram · 2 diagrams in section
