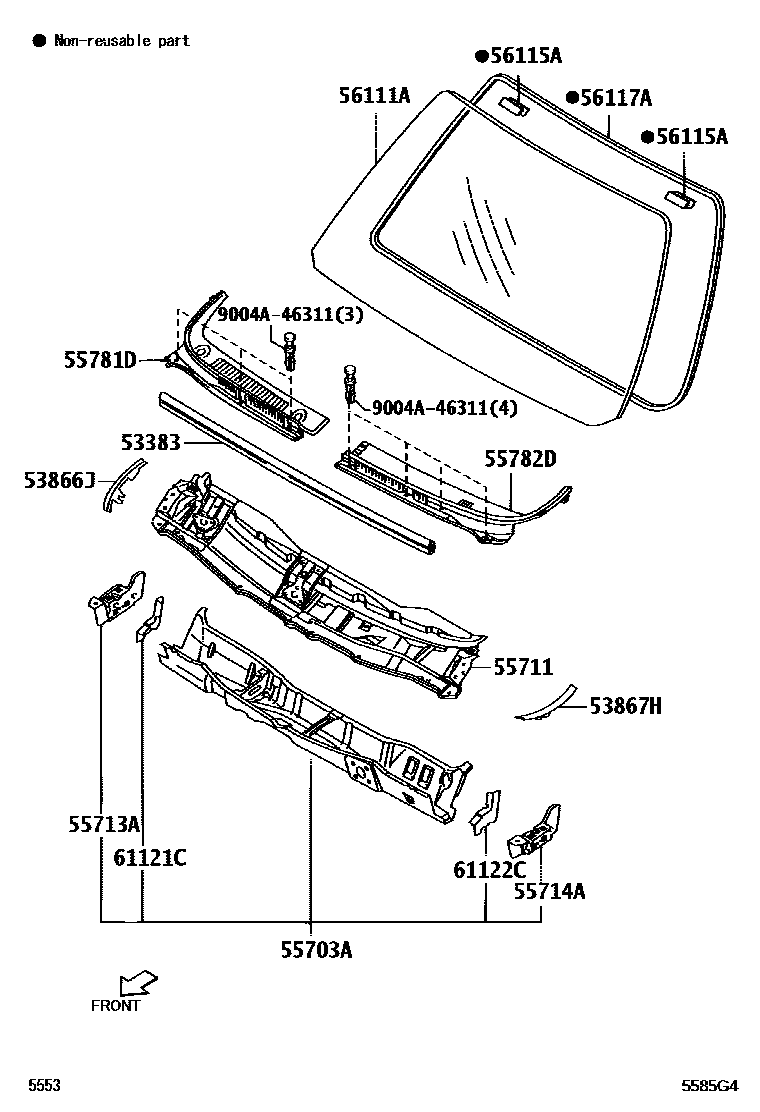

Toyota RUSH — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-BZ040iF700201010-201503

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53868-BZ020iF700201503

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53869-BZ020iF700200612-201009

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-BZ110iF700..IDN200612-201009

main55703-BZ120iF700..MA201010-201503

main55703-BZ470iF700..IDN201503

main55703-BZ480iF700..MA201503

55711PANEL, COWL TOP, OUTER

main55701-BZ060iF700200612-201009

55713APANEL, COWL TOP SIDE, RH

main55713-BZ060iF700200612-201009

55714APANEL, COWL TOP SIDE, LH

main55714-BZ060iF700200612-201009

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-BZ050iF700201010-201503

main55781-BZ051iF700201606

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-BZ050iF700200612-201009

56111AGLASS, WINDSHIELD

main56111-BZ110iF700200612-200710

CLEAR ASAHIMAS

main56111-BZ130iF700..MA200712-201009

GREEN ASAHIMAS

main56111-BZ200iF700..IDN201010-201503

GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-BZ010×2iF700200612-200801

main56115-BZ080×2iF700200801-201009

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B1010iF700200612-201009

main56117-BZ020iF700201010-201503

61121CPANEL, COWL SIDE, OUTER RH

main61121-BZ020iF700200612-201009

61122CPANEL, COWL SIDE, OUTER LH

main61122-BZ020iF700200612-201009

9004A46311

main9004A-46311

15 parts on this diagram · 1 diagram in section
