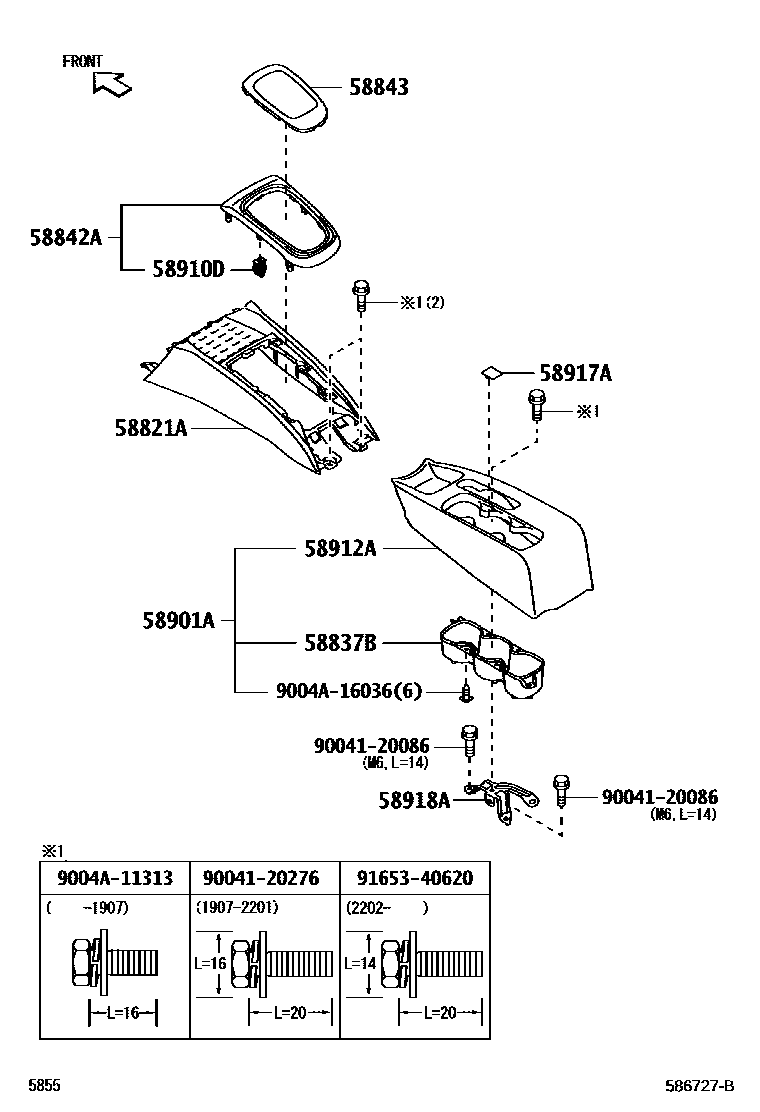

Toyota RUSH — CONSOLE BOX & BRACKET

58821APANEL, CONSOLE

main58821-BZ270-C0iF850201812-202310

BLACK,TRIM1#

58837BBOX, CONSOLE CUP HOLDER

main58837-BZ020-C0iF850201812-202310

BLACK,TRIM1#

58842AFRAME, SHIFTING HOLE

main58842-BZ150-B0iF850201812-202310

SILVER,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-BZ300-C0iF850201812-202310

BLACK,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-BZ060-C0iF850201812-202310

BLACK,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main90467-05171×2iF850201812-202310

58912ABOX, REAR CONSOLE

main58911-BZ150-C0iF850201812-202310

BLACK,TRIM1#

58917ACOVER, CONSOLE BOX, REAR

main55423-BZ030-C0iF850201812-202310

BLACK,TRIM1#

58918ABRACKET, BOX SUPPORT

main58918-BZ030iF850201812-202310

9004120086

main90041-20086

9004120276

main90041-20276

9004A11313

main9004A-11313

9004A16036

main9004A-16036

9165340620

main91653-40620

14 parts on this diagram · 1 diagram in section
