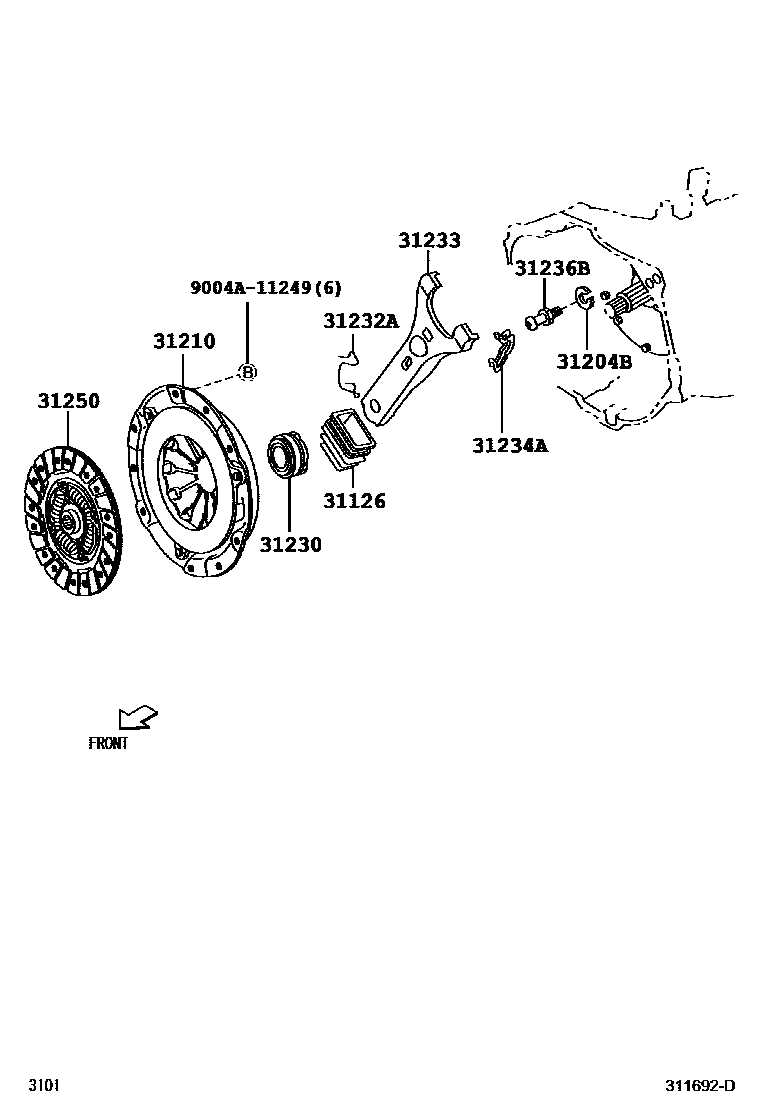

Toyota RUSH — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-BZ010iF700..5F200612-201009

main31126-BZ020iF700..5F201104-201503

31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)

main94531-00800iF700..5F200612-201009

31210COVER ASSY, CLUTCH

main31210-BZ080iF700..5F200612-201009

main31210-BZ081iF700..5F201011-201503

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ010iF700..5F200612-201009

main31230-BZ060iF700..5F201103-201503

31232ACLIP, RELEASE BEARING HUB

main31232-BZ020iF700..5F200612-201009

main31232-BZ080iF700..5F201104-201503

31233FORK, CLUTCH RELEASE

main31233-BZ030iF700..5F200612-201009

main31233-BZ050iF700..5F201510

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ010iF700..5F200612-201009

main31234-BZ030iF700..5F201104-201503

main31234-BZ031iF700..5F201503

31236BSUPPORT, RELEASE FORK

main31236-BZ010iF700..5F200612-201009

31250DISC ASSY, CLUTCH

main31250-BZ080iF700..5F200612-201009

9004A11249

main9004A-11249

10 parts on this diagram · 1 diagram in section
