Toyota RUSHCLEARANCE & BACK SONAR

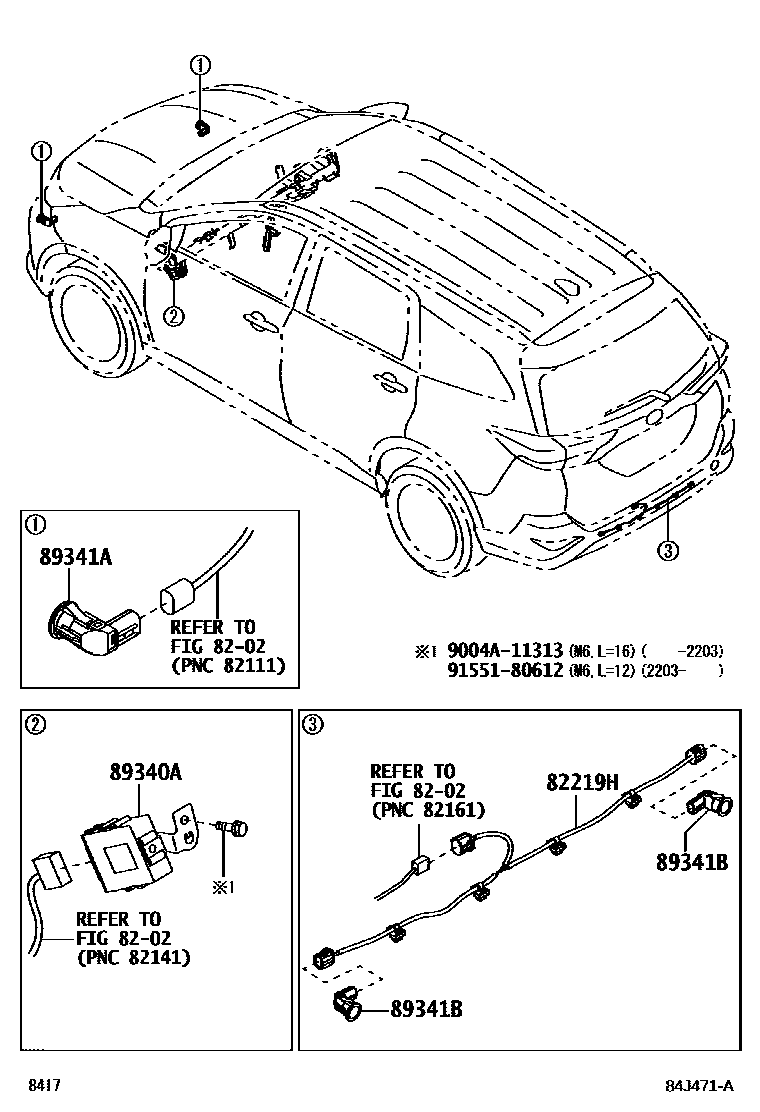

Parts diagram
8202WIRING & CLAMP
82219HWIRE, SENSOR
main82219-BZ090i201812-202310
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-BZ260i201812-202310
89341ASENSOR, ULTRASONIC, NO.1
main89341-BZ280-A0×2i201812-202310
WHITE,W09
main89341-BZ280-B0×2i201812-202310
SILVER ME.,S28
main89341-BZ280-B1×2i201812-202310
GRAY ME,S43
main89341-BZ280-D0×2i202104-202304
RED ME.,R68
main89341-BZ280-D1×2i202304-202310
RED ME.,R67
main89341-BZ280-J0×2i201812-202310
BLUE ME.,B77
main89341-BZ280-J1×2i201812-202104
BLUE MICA,B85
89341BSENSOR, ULTRASONIC, NO.2
main89341-BZ240×2i201812-202310
9004A11313
9155180612

7 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota RUSH

This section contains 7 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota RUSH. Key components include: WIRING & CLAMP, WIRE, SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1, SENSOR, ULTRASONIC, NO.2.
