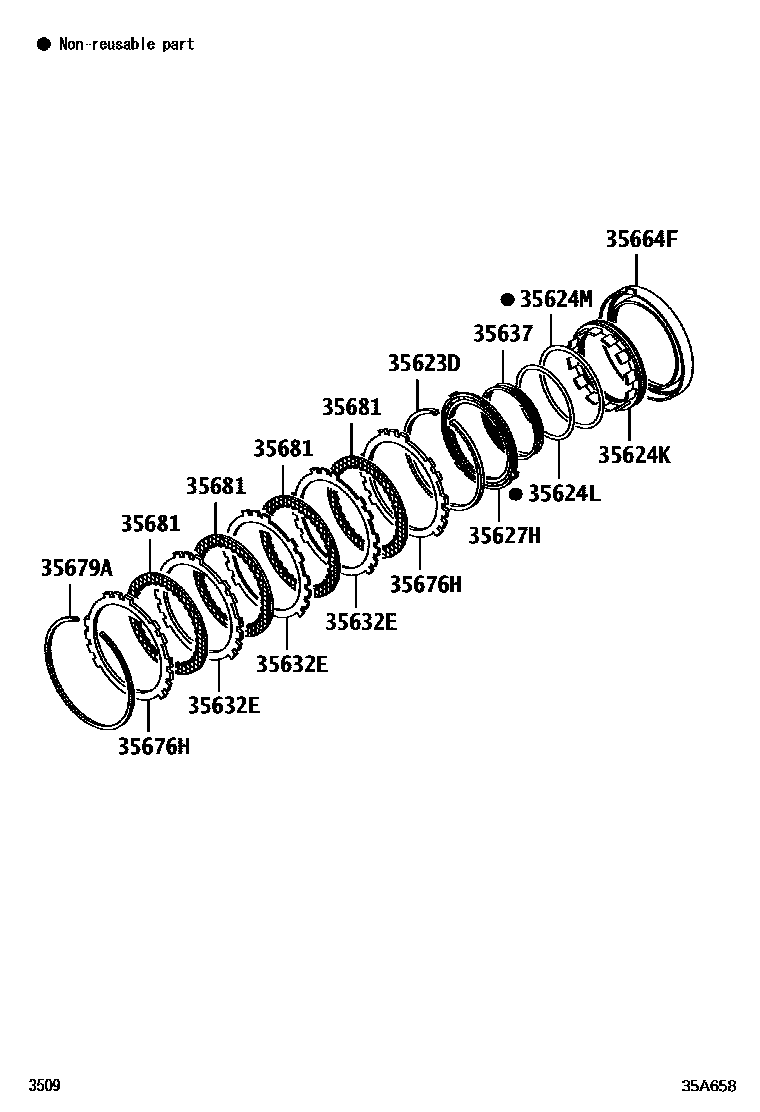

Toyota RUSH — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35623DRING, SHAFT SNAP (FOR BRAKE)

main90045-21185i201712-202305

35624KBRAKE PISTON, 2ND & 4TH

main35624-97206i201712-202305

35624LRING, O (FOR 2ND & 4TH BRAKE PISTON, NO.1)

main90043-01296i201712-202305

35624MRING, O (FOR 2ND & 4TH BRAKE PISTON, NO.2)

main90043-01295i201712-202305

35627HBRAKE SEAT, 2ND & 4TH

main35627-97202i201712-202305

35632EPLATE, BRAKE

main35632-97201×3i201712-202305

35637SPRING, 2ND & 4TH BRAKE PISTON RETURN

main35637-97201i201712-202305

35664FCYLINDER, 2ND & 4TH BRAKE

main35664-97205i201712-202305

35676HFLANGE, BRAKE, NO.1

main35676-97202×2i201712

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90045-21176i201712

T=1.5

main90045-21177i201712-202305

T=1.75

main90045-21178i201712-202305

T=2.0

main90045-21179i201712

T=2.25

35681DISC, BRAKE, NO.1

main35681-97201×4i201712

11 parts on this diagram · 1 diagram in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota RUSH

This section contains 11 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota RUSH. Key components include: RING, SHAFT SNAP (FOR BRAKE), BRAKE PISTON, 2ND & 4TH, RING, O (FOR 2ND & 4TH BRAKE PISTON, NO.1), RING, O (FOR 2ND & 4TH BRAKE PISTON, NO.2), BRAKE SEAT, 2ND & 4TH.
