Toyota RUSH — BACK DOOR PANEL & GLASS

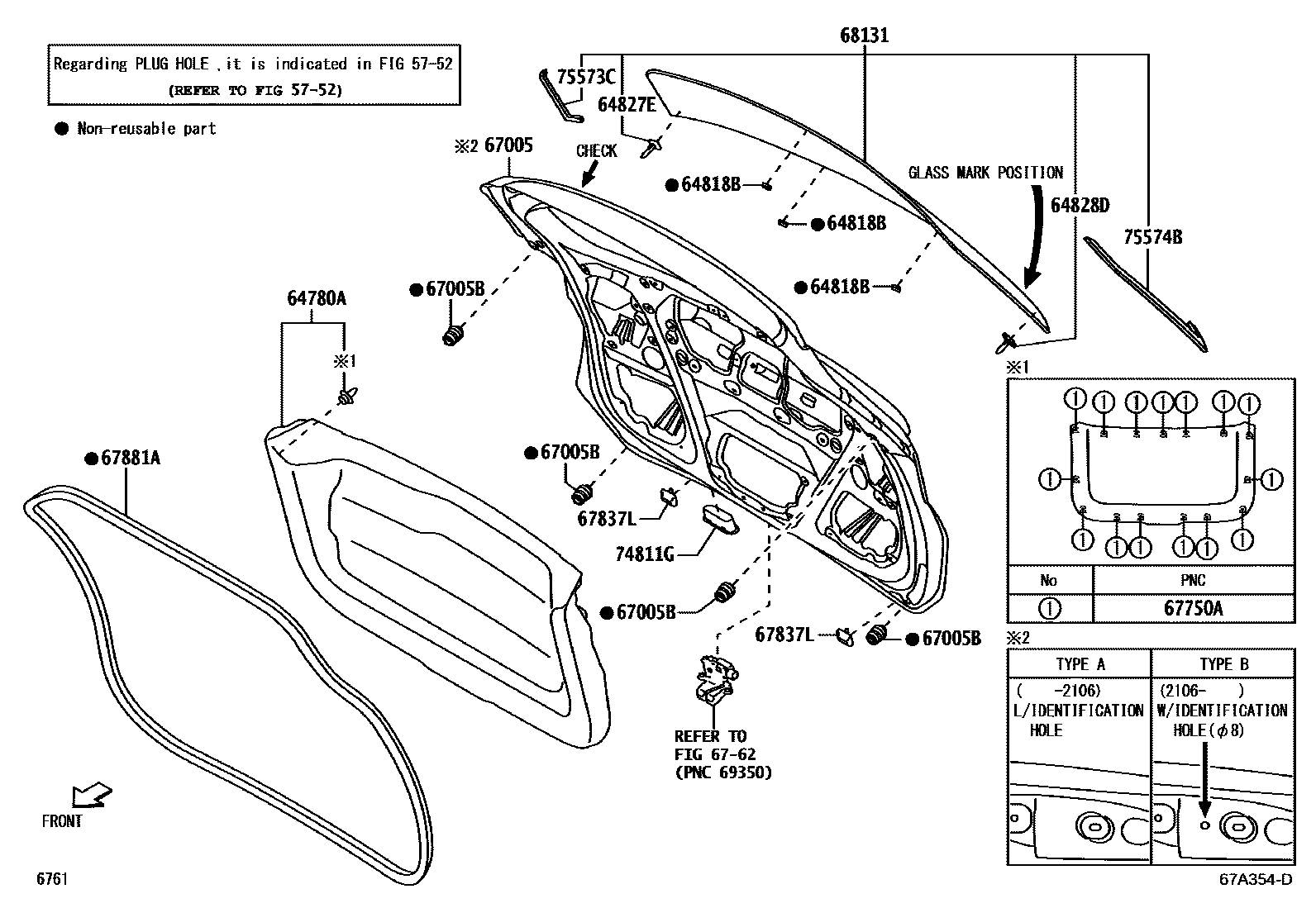

Parts diagram
5752HOLE PLUG
→ Go to FIG 57-52
64780APANEL ASSY, BACK DOOR TRIM
main64780-BZ160-C0i201712
BLACK,TRIM1#
64818BSPACER, BACK DOOR GLASS, NO.1
main64818-BZ090×3i201712
64827ECLIP, BACK WINDOW GLASS, RH
main64827-BZ110i201712-202305
64828DCLIP, BACK WINDOW GLASS, LH
main64828-BZ080i201712-202305
67005PANEL SUB-ASSY, BACK DOOR
main67005-BZB70i201804
main67005-BZB90i202011-202106
TYPE A
main67005-BZD10i202106
TYPE B W/HOLE CAMERA
67005BCUSHION(FOR BACK DOOR PANEL)
main9004A-54016×4i201712-202305
6762BACK DOOR LOCK & HINGE
→ Go to FIG 67-62
67750ACLIP(FOR BACK DOOR TRIM)
main9004A-46338×15i201910
main90467-10161×15i201712-201910
67837LSEAL, DOOR DUST PROOF
main67837-BZ030×2i201712-202305
67881AWEATHERSTRIP, BACK DOOR
main67881-BZ180i201712-202305
68131GLASS, BACK DOOR
main68105-BZ330i201712-201905
L/IDN MARK
main68105-BZ331i201905
W/IDN MARK
74811GHANDLE, DOOR PULL
main74811-BZ030i201712-202305
75573CMOULDING, BACK WINDOW, OUTSIDE
main75573-BZ040i201905-202305
75574BMOULDING, BACK WINDOW, OUTSIDE LH
main75574-BZ010i201905-202305

15 parts on this diagram · 2 diagrams in section

BACK DOOR PANEL & GLASS for Toyota RUSH

This section contains 23 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota RUSH. Key components include: HOLE PLUG, PANEL ASSY, BACK DOOR TRIM, SPACER, BACK DOOR GLASS, NO.1, CLIP, BACK WINDOW GLASS, RH, CLIP, BACK WINDOW GLASS, LH.
