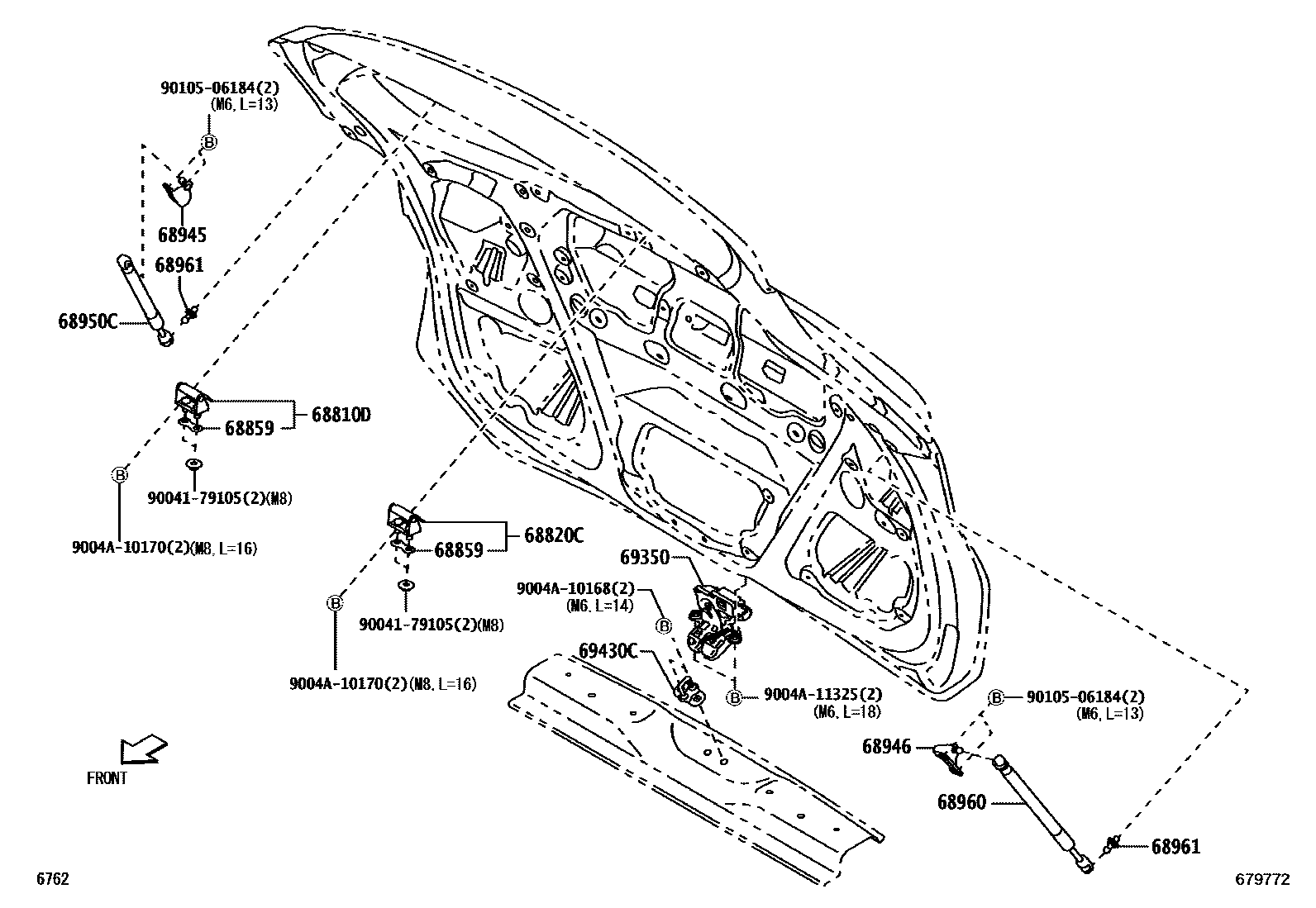

Toyota RUSH — BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68801-BZ140iF800..MID..PH201712-202305

68820CHINGE ASSY, BACK DOOR, LH

main68801-BZ140iF800..MID..PH201712-202305

68859PACKING, BACK DOOR HINGE

main68859-87101×2iF800..MID..PH201712-202305

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-BZ010iF800..MID..PH201712-202305

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-BZ010iF800..MID..PH201712-202305

68950CSTAY ASSY, BACK DOOR, RH

main68950-BZ280iF800201712-201804

TYPE A

main68950-BZ281iF800..MID..PH201804-202305

TYPE B

68960STAY ASSY, BACK DOOR, LH

main68960-BZ280iF800201712-201804

TYPE A

main68960-BZ281iF800..MID..PH201804-202305

TYPE B

68961BOLT, BACK DOOR STAY

main68459-87202×2iF800..MID..PH201712-202305

69350LOCK ASSY, BACK DOOR

main69350-BZ170iF800..MID..PH201712-202305

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B2070iF800..MID..PH201712-202305

9004179105

main90041-79105

9004A10168

main9004A-10168

9004A10170

main9004A-10170

9004A11325

main9004A-11325

9010506184

main90105-06184

15 parts on this diagram · 1 diagram in section
