Toyota RUSH — ARMREST & VISOR

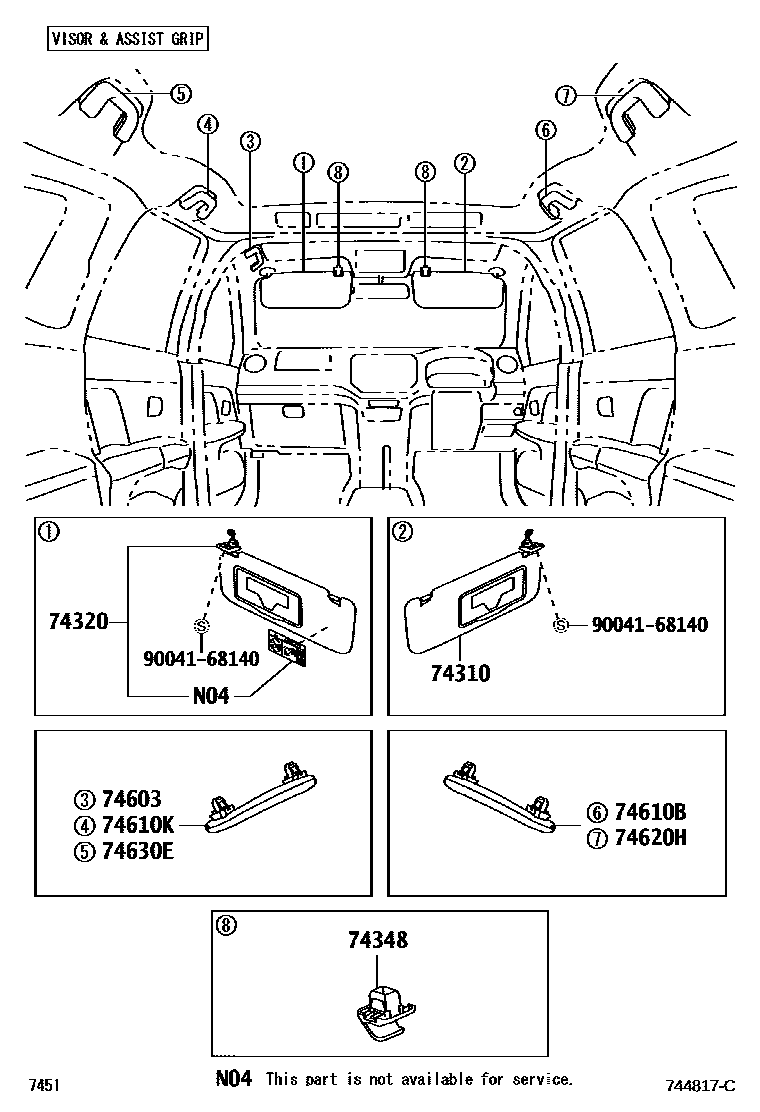

0001 1VISOR & ASSIST GRIP 0002 1ARMREST

74310VISOR ASSY, RH

main74310-BZA00-B0iF850201812-202310

LT.GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-BZ810-B0iF850201812-202310

LT.GRAY,TRIM1#

74348HOLDER, VISOR

main74348-BZ030-B0×2iF850201812-202310

LT.GRAY,TRIM1#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-BZ040-B0iF850201812-202310

LT.GRAY,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-BZ040-B0iF850201812-202310

LT.GRAY,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-BZ040-B0iF850201812-202310

LT.GRAY,TRIM1#

74620HGRIP ASSY, ASSIST, REAR RH

main74610-BZ040-B0iF850201812-202310

LT.GRAY,TRIM1#

74630EGRIP ASSY, ASSIST, REAR LH

main74610-BZ040-B0iF850201812-202310

LT.GRAY,TRIM1#

9004168140

main90041-68140

9 parts on this diagram · 2 diagrams in section
