Toyota RUSH — ANTENNA

8504REAR WASHER

→ Go to FIG 85-04

86101CORD SUB-ASSY, ANTENNA

main86316-BZ290i201812-202310

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-BZ260-A0i201812-202310

WHITE,W09

main86300-BZ260-B0i201812-202310

SILVER ME.,S28

main86300-BZ260-B1i201812-202310

GRAY ME,S43

main86300-BZ260-D0i202104-202304

RED ME.,R68

main86300-BZ260-D1i202304-202310

RED ME.,R67

main86300-BZ260-J0i201812-202310

BLUE ME.,B77

main86300-BZ260-J1i201812-202104

BLUE MICA,B85

86316CABLE, ANTENNA

main86316-BZ430i201812-202310

9011906A06

main90119-06A06

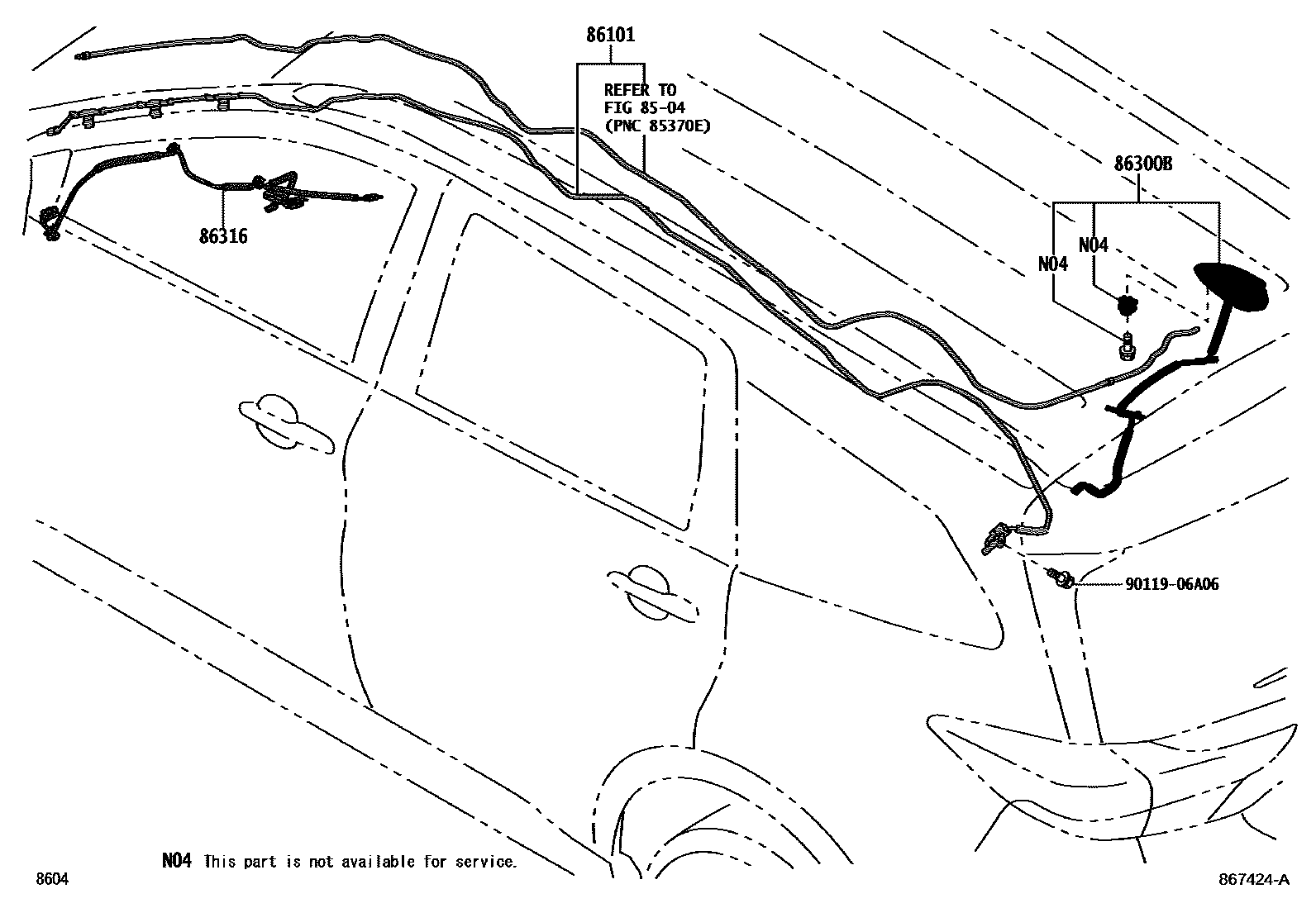

5 parts on this diagram · 1 diagram in section

ANTENNA for Toyota RUSH

This section contains 5 genuine Toyota parts for the ANTENNA system of the Toyota RUSH. Key components include: REAR WASHER, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.1, CABLE, ANTENNA.
