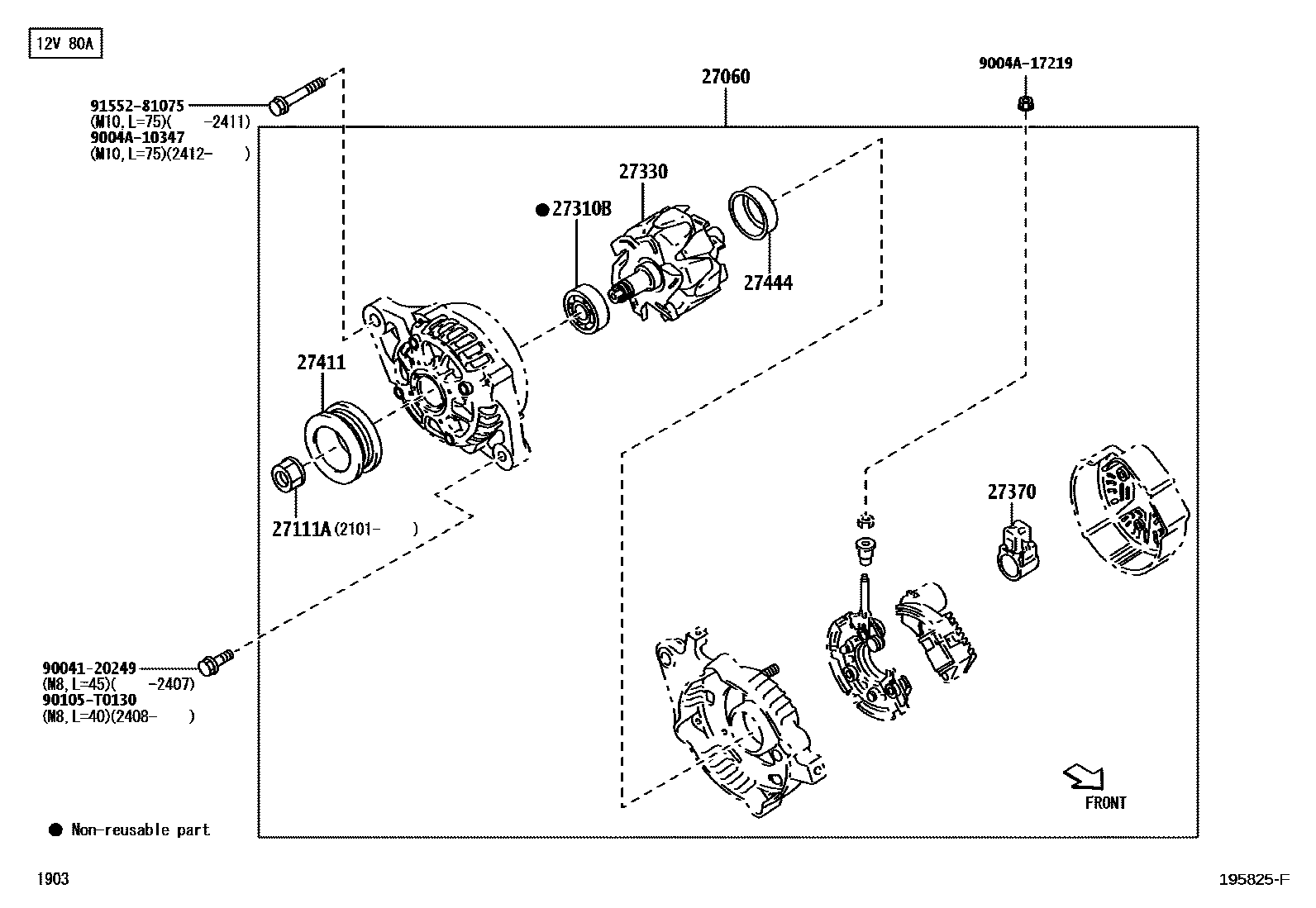

Toyota RUSH — ALTERNATOR

27060ALTERNATOR ASSY, W/REGULATOR

main27060-BZ310i2NRVE..F800..MID..PH201712-202305

27111ANUT, ALTERNATOR

main90099-05171i2NRVE..F800..MID..PH202101-202305

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004B-37016i2NRVE..F800201712-202012

main9004C-37008i2NRVE..F800..MID..PH202101-202305

27330ROTOR ASSY, ALTERNATOR

main27330-BZ060i2NRVE..F800..MID..PH201712-202305

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1020i2NRVE..F800..MID..PH201712-202305

27411PULLEY, ALTERNATOR

main27411-BZ100i2NRVE..F800..MID..PH201712-202305

27444PACKING, ALTERNATOR BEARING COVER

main27444-BZ010i2NRVE..F800..MID..PH201712-202305

9004120249

main90041-20249

9004A10347

main9004A-10347

9004A17219

main9004A-17219

90105T0130

main90105-T0130

9155281075

main91552-81075

12 parts on this diagram · 1 diagram in section
