Toyota RUSH — ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

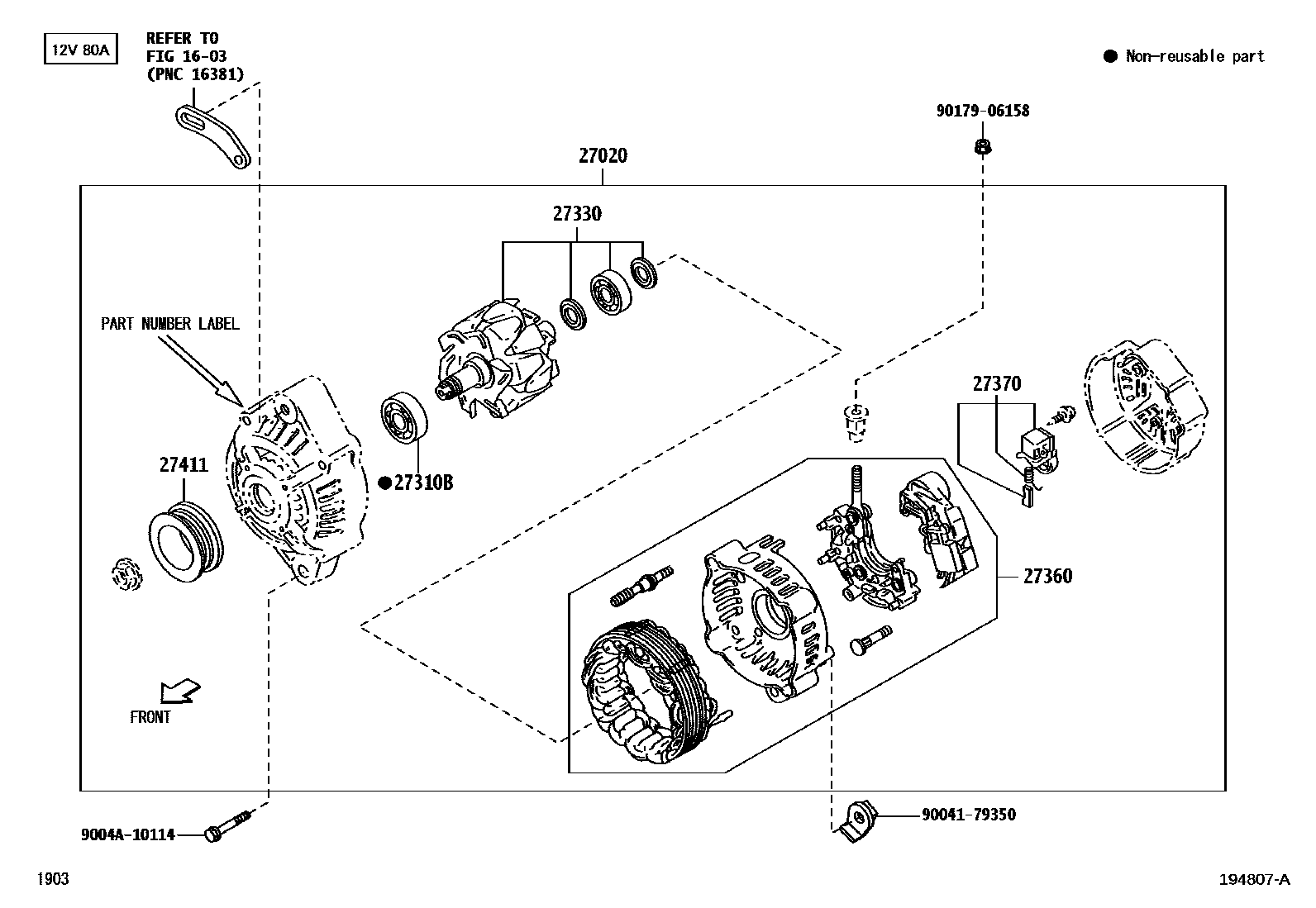

27020ALTERNATOR ASSY

main27060-BZ110i200612-201009

12V 80A

main27060-BZ270i201404-201503

12V 80A,W/PART NUMBER LABEL

main27060-BZ280i201609

12V 80A,W/PART NUMBER LABEL

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main27791-87703i200612-201009

main9004C-37002i201103-201404

ASSY,NO.27060BZ110

main9004C-37008i201404-201503

ASSY,NO.27060BZ270

27330ROTOR ASSY, ALTERNATOR

main27330-BZ030i200612-201009

main27330-BZ060i201404-201503

ASSY,NO.27060BZ270

27360COIL ASSY, ALTERNATOR

main27360-BZ010i200612-201009

main27360-BZ040i201404-201503

ASSY,NO.27060BZ270

main27360-BZ100i201609

ASSY,NO.27060BZ280

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-BZ020i200612-201009

27411PULLEY, ALTERNATOR

main27411-BZ030i200612-201009

9004179350

main90041-79350

9004A10114

main9004A-10114

9017906158

main90179-06158

10 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota RUSH

This section contains 11 genuine Toyota parts for the ALTERNATOR system of the Toyota RUSH. Key components include: RADIATOR & WATER OUTLET, ALTERNATOR ASSY, BEARING(FOR ALTERNATOR DRIVE END FRAME), ROTOR ASSY, ALTERNATOR, COIL ASSY, ALTERNATOR.
