Toyota RUSH — ACCELERATOR LINK

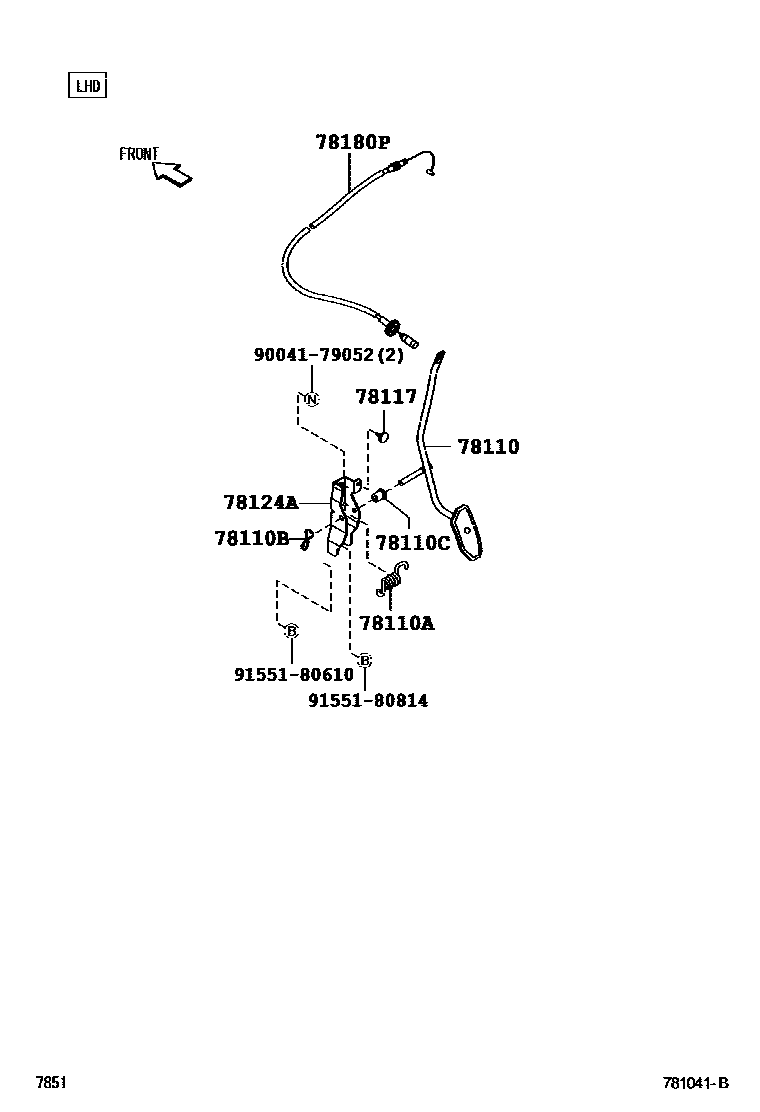

Parts diagram

78110ROD ASSY, ACCELERATOR PEDAL

main78101-B4020i200811

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-B4020i200811

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207i200811

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112i200811

78117CUSHION (FOR ACCELERATOR ROD)

main90045-40158i200811

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-B4020i200811

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-B4020i200811-200911

main78180-B4021i201605

9004179052

main90041-79052

9155180610

main91551-80610

9155180814

main91551-80814

10 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota RUSH

This section contains 10 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota RUSH. Key components include: ROD ASSY, ACCELERATOR PEDAL, SPRING (FOR ACCELERATOR PEDAL ROD), CLIP, ACCELERATOR BELLCRANK, BUSH (FOR ACCELERATOR PEDAL ROD), CUSHION (FOR ACCELERATOR ROD).
