Toyota RUSH — ABS & VSC

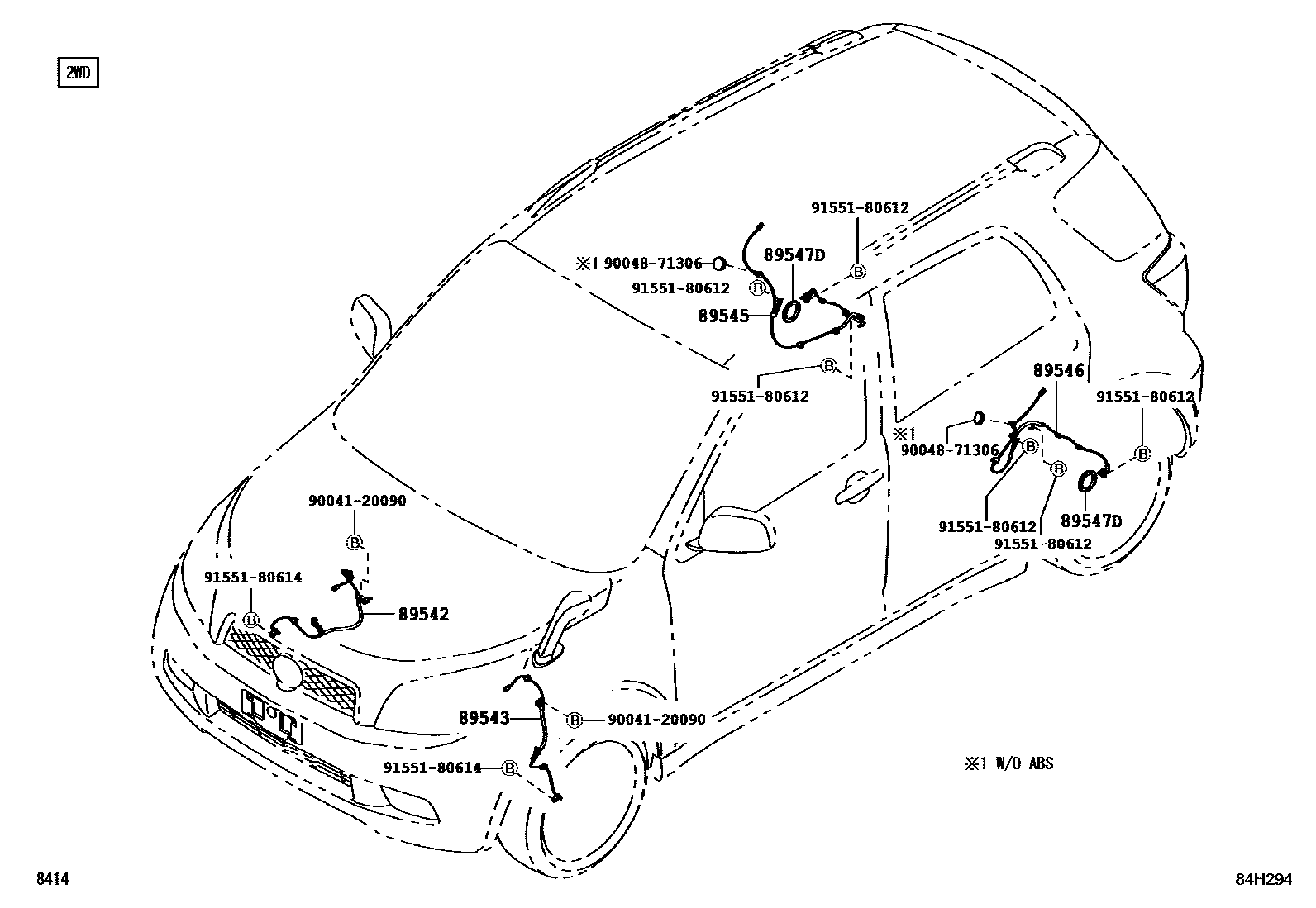

Parts diagram

89542SENSOR, SPEED, FRONT RH

main89542-B4010i201605

89543SENSOR, SPEED, FRONT LH

main89543-B4010i201605

89545SENSOR, SPEED, REAR RH

main89545-B4010i201605

89546SENSOR, SPEED, REAR LH

main89546-B4010i201605

89547DROTOR, SKID CONTROL SENSOR

main89547-97506×2i201605

9004120090

main90041-20090

9004871306

main90048-71306

9155180612

main91551-80612

9155180614

main91551-80614

9 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota RUSH

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota RUSH. Key components include: SENSOR, DECELERATION, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH, SENSOR, SPEED, REAR LH.
