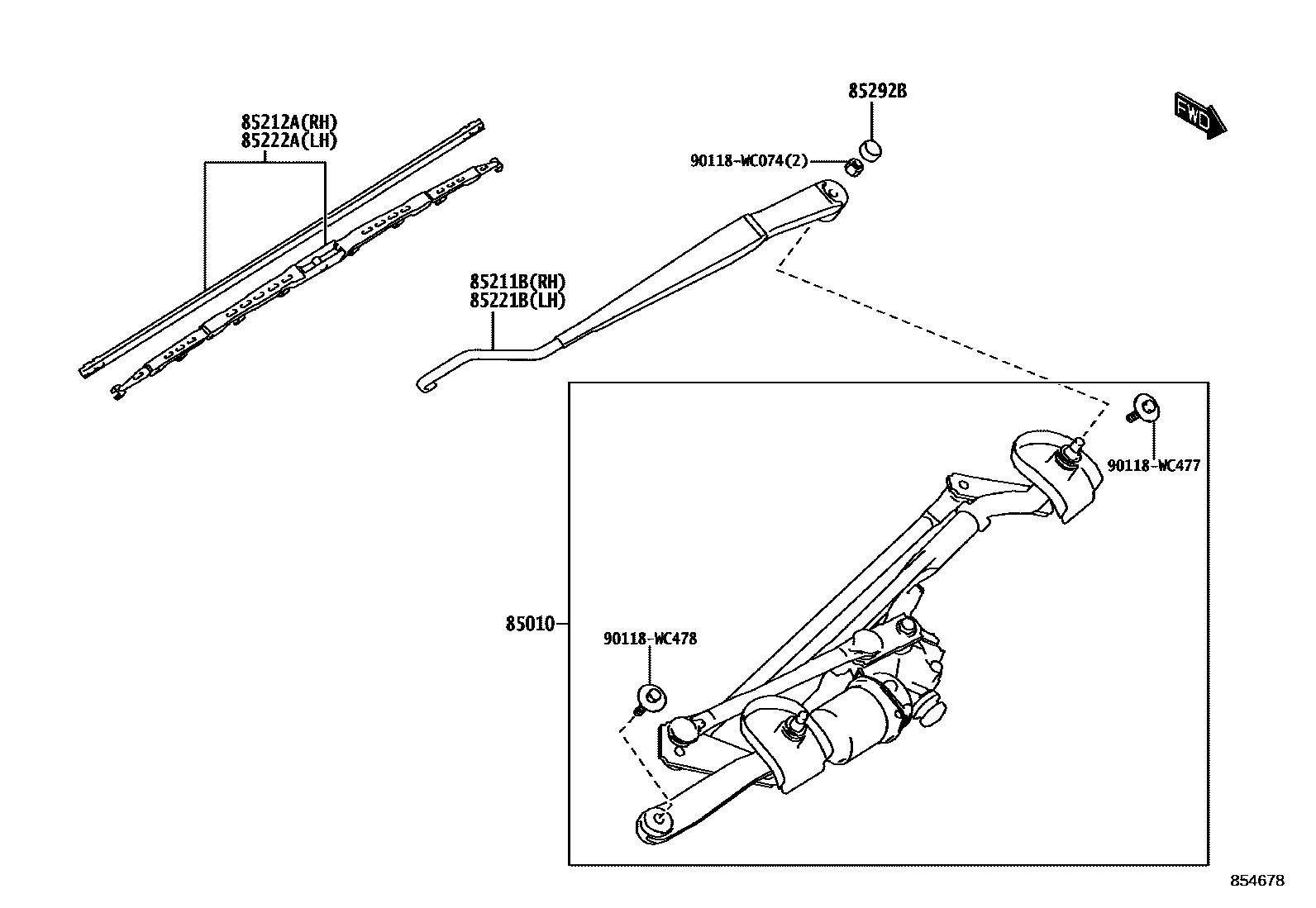

Toyota RUMION — WINDSHIELD WIPER
85010MOTOR & LINK ASSY, FR WIPER
POS.11; POS.17; POS.23; POS.31
main85010-WC008iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
85211BARM, FRONT WIPER, RH
main85211-WC007iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
main85221-WC006iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
85212ABLADE, FR WIPER, RH
main85212-WC013iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
main85212-WC014iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
85221BARM, FRONT WIPER, LH
POS.11; POS.17; POS.23; POS.31
main85221-WC007iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
85222ABLADE, FR WIPER, LH
main85212-WC012iK15B..4FC..R..AFR; K15B..4FC..S..AFR; K15B..5F..R..AFR; K15B..5F..S..AFR; K15B..I..AFR202108
POS.1; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.28; POS.29; POS.3; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5
main85212-WC015iK15B..4FC..R..SA; K15B..4FC..S..SA; K15B..5F..R..SA; K15B..5F..S..SA; K15B..I..SA202108
POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.24; POS.25; POS.26; POS.27; POS.30; POS.6; POS.7; POS.8; POS.9
85292BCAP, FRONT WIPER ARM HEAD
POS.11; POS.17; POS.23; POS.31
90118WC074
main90118-WC074
90118WC477
main90118-WC477
90118WC478
main90118-WC478
9 parts on this diagram · 2 diagrams in section
WINDSHIELD WIPER for Toyota RUMION
This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RUMION. Key components include: MOTOR & LINK ASSY, FR WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, ARM, FRONT WIPER, LH, BLADE, FR WIPER, LH.
