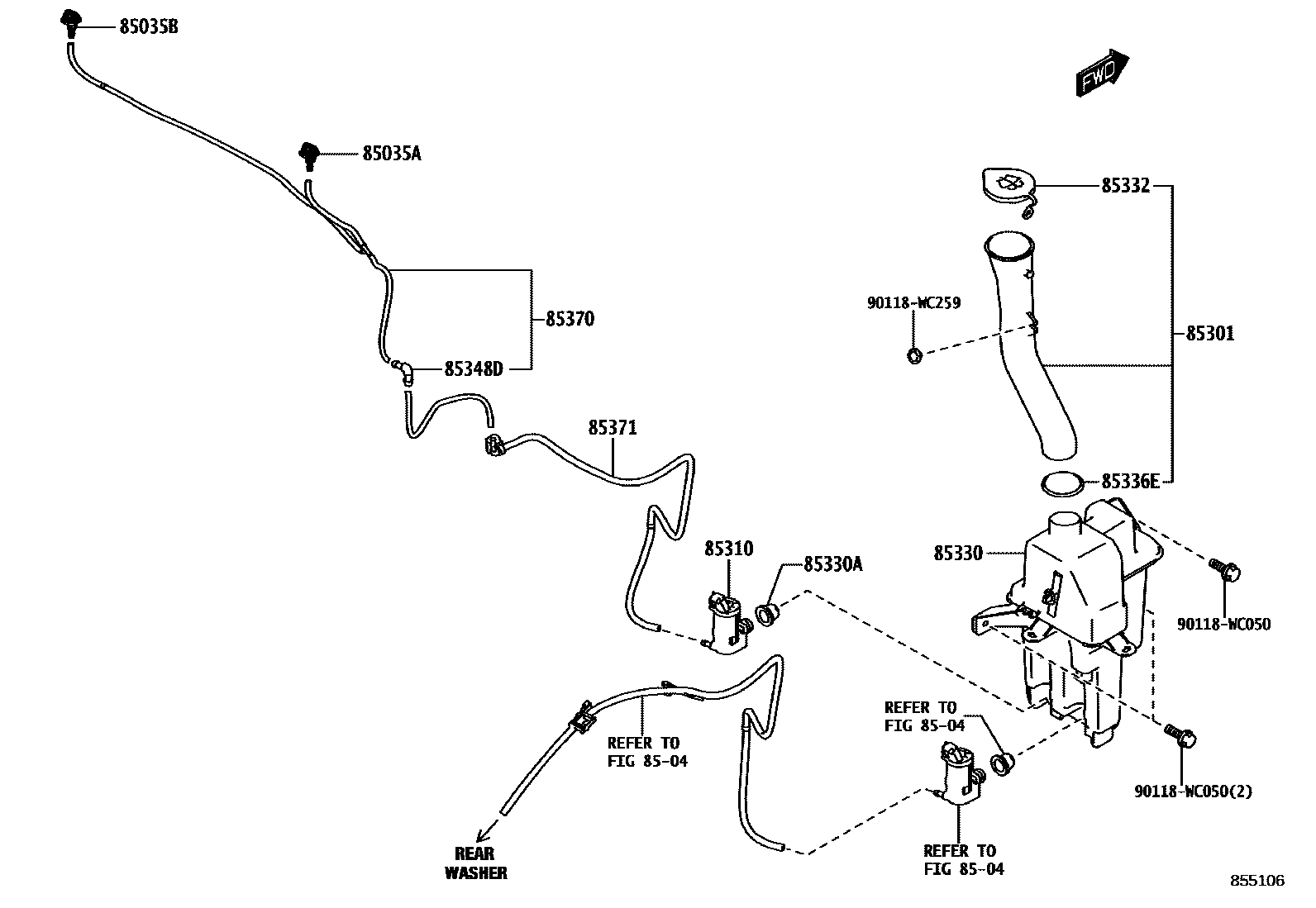

Toyota RUMION — WINDSHIELD WASHER

85035ANOZZLE, FR WASHER, RH

main85381-WC007iK15C202308

85035BNOZZLE, FRONT WASHER, LH

main85381-WC006iK15C202308

8504

85301INLET SUB-ASSY, WASHER

main85301-WC001iK15C202308

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-WC010iK15C202308

85330JAR ASSY, WINDSHIELD WASHER

main85330-WC011iK15C..E202308

POS.10

main85330-WC012iK15C..5F..V202308

POS.2

85330ABUSH, WINDSHIELD WASHER JAR

main85336-WC004iK15C202308

85332CAP, WINDSHIELD WASHER JAR

main85316-WC003iK15C202308

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-WC005iK15C202308

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-WC006iK15C202308

85370HOSE ASSY, WINDSHIELD WASHER

main90118-WCF04iK15C..E202308

POS.10

main90118-WCF05iK15C..5F..V202308

POS.2

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90118-WCF07iK15C202308

90118WC050

main90118-WC050

90118WC259

main90118-WC259

14 parts on this diagram · 1 diagram in section
