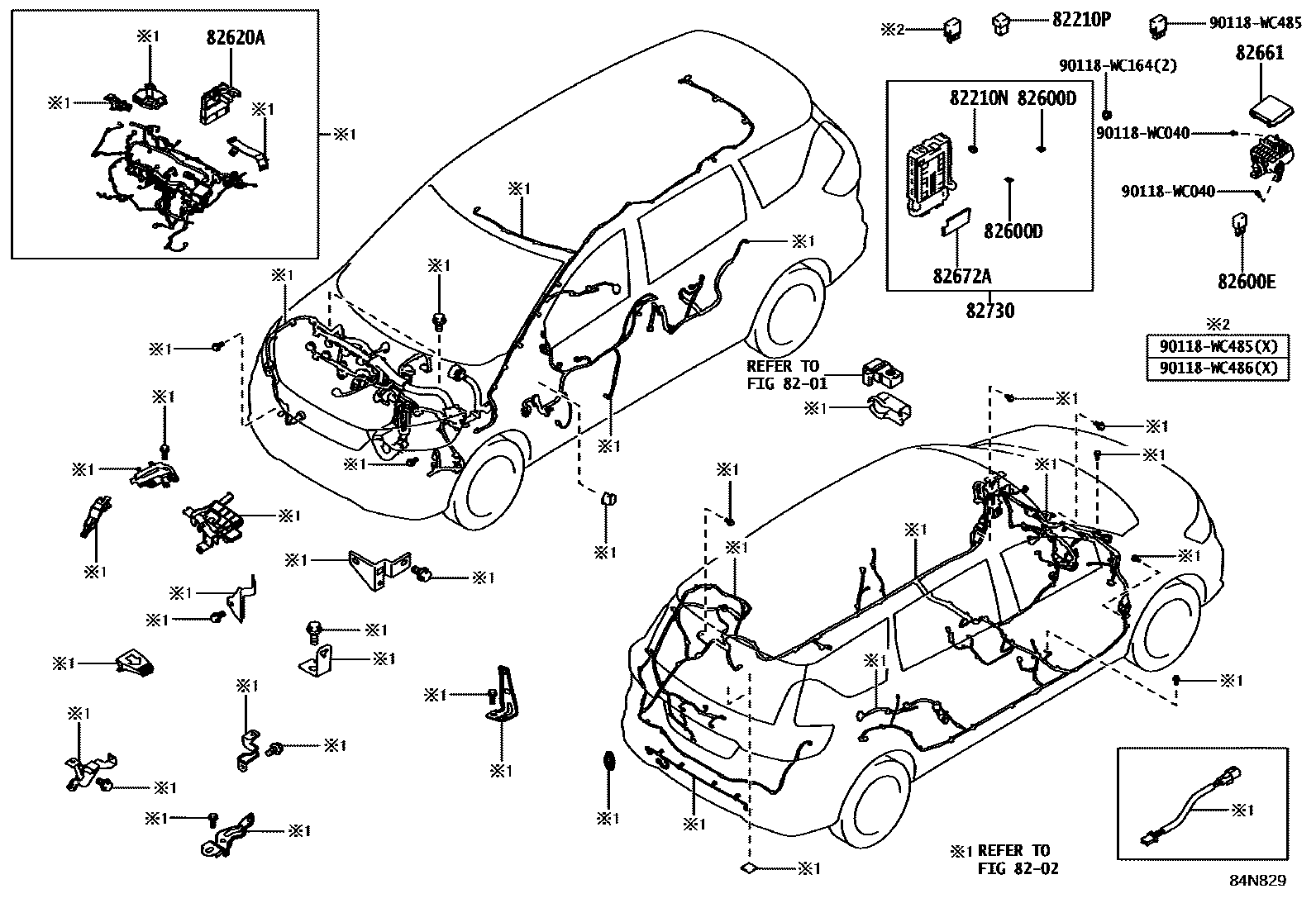

Toyota RUMION — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1W(TUNER) 0016 1W/O(TUNER) 0017 1 0018 1

8201

8202

82210NINSTRUMENT PANEL FUSIBLE LINK

main90118-WCA37iK15B..SUD202205-202311

30A,POS.11

82210PENGINE ROOM FUSIBLE LINK

main90118-WCA37iK15B..5F..S..SA202108

30A,POS.27

main90118-WCA39iK15B..5F..S..SA202108

40A,POS.33

main90118-WCA40iK15B..5F..S..SA202108

50A,POS.21

82600DINSTRUMENT PANEL FUSE

main90118-WCA31iK15B..5F..S..SA202108

5A,POS.10

main90118-WCA33iK15B..5F..S..AFR202108

10A,POS.2

main90118-WCA34iK15B..5F..S..SA202108

15A,POS.7

main90118-WCA35iK15B..5F..S..SA202108

20A,POS.33

main90118-WCA36iK15B..SUD202205-202311

25A,POS.23

82600EENGINE ROOM FUSE

main90118-WCA31iK15B..5F..S..SA202108

5A,POS.10

main90118-WCA32iK15B..SUD202205-202311

7.5A,POS.11

main90118-WCA33iK15B..5F..S..SA202108

10A,POS.2

main90118-WCA34iK15B..5F..S..SA202108

15A,POS.32

main90118-WCA35iK15B..5F..S..SA202108

20A,POS.33

main90118-WCA36iK15B..5F..S..SA202108

25A,POS.14

main90118-WCA38iK15B..5F..S..SA202108

30A,#,POS.39

82620ABLOCK ASSY, FUSIBLE LINK

main82620-WC002iK15B..5F..S..AFR202108

POS.30

82661COVER, RELAY BLOCK, NO.1

main82611-WC008iK15B..5F..S..SA202108

POS.14

main82611-WC018iK15B..SUD202207-202311

POS.31

82672ACOVER, JUNCTION BLOCK

main82672-WC003iK15B..5F..S..SA202108

POS.14

main82672-WC010iK15B..4FC..S..SA202207

POS.33

82730BLOCK ASSY, INSTRUMENT PANEL JUNCTION

main82730-WC003iK15B..5F..S..SA202108

POS.14

main82730-WC014iK15B..5F..S..SA202207

POS.33

90118WC040

main90118-WC040

90118WC164

main90118-WC164

90118WC485

main90118-WC485

90118WC486

main90118-WC486

14 parts on this diagram · 18 diagrams in section
