Toyota RUMION — PARKING BRAKE & CABLE

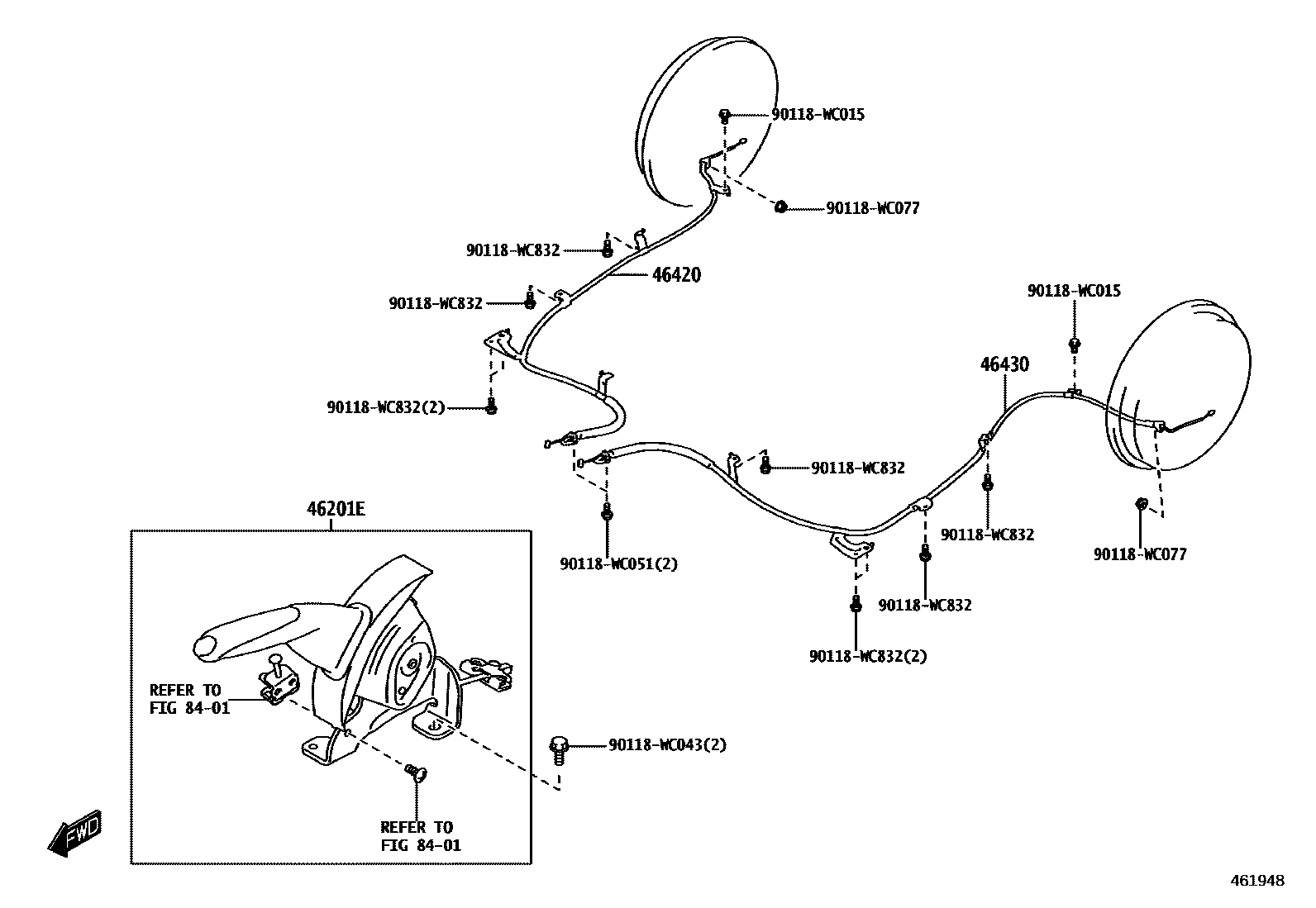

Parts diagram

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-WC010i202308

POS.1; POS.10; POS.11; POS.12; POS.13; POS.14; POS.15; POS.16; POS.2; POS.3; POS.4; POS.5; POS.6; POS.7

main46210-WC011i202308

POS.8; POS.9

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-WC006i202308

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-WC006i202308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90118WC015

main90118-WC015

90118WC043

main90118-WC043

90118WC051

main90118-WC051

90118WC077

main90118-WC077

90118WC832

main90118-WC832

9 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota RUMION

This section contains 9 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota RUMION. Key components include: LEVER SUB-ASSY, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.2, CABLE ASSY, PARKING BRAKE, NO.3, SWITCH & RELAY & COMPUTER.
