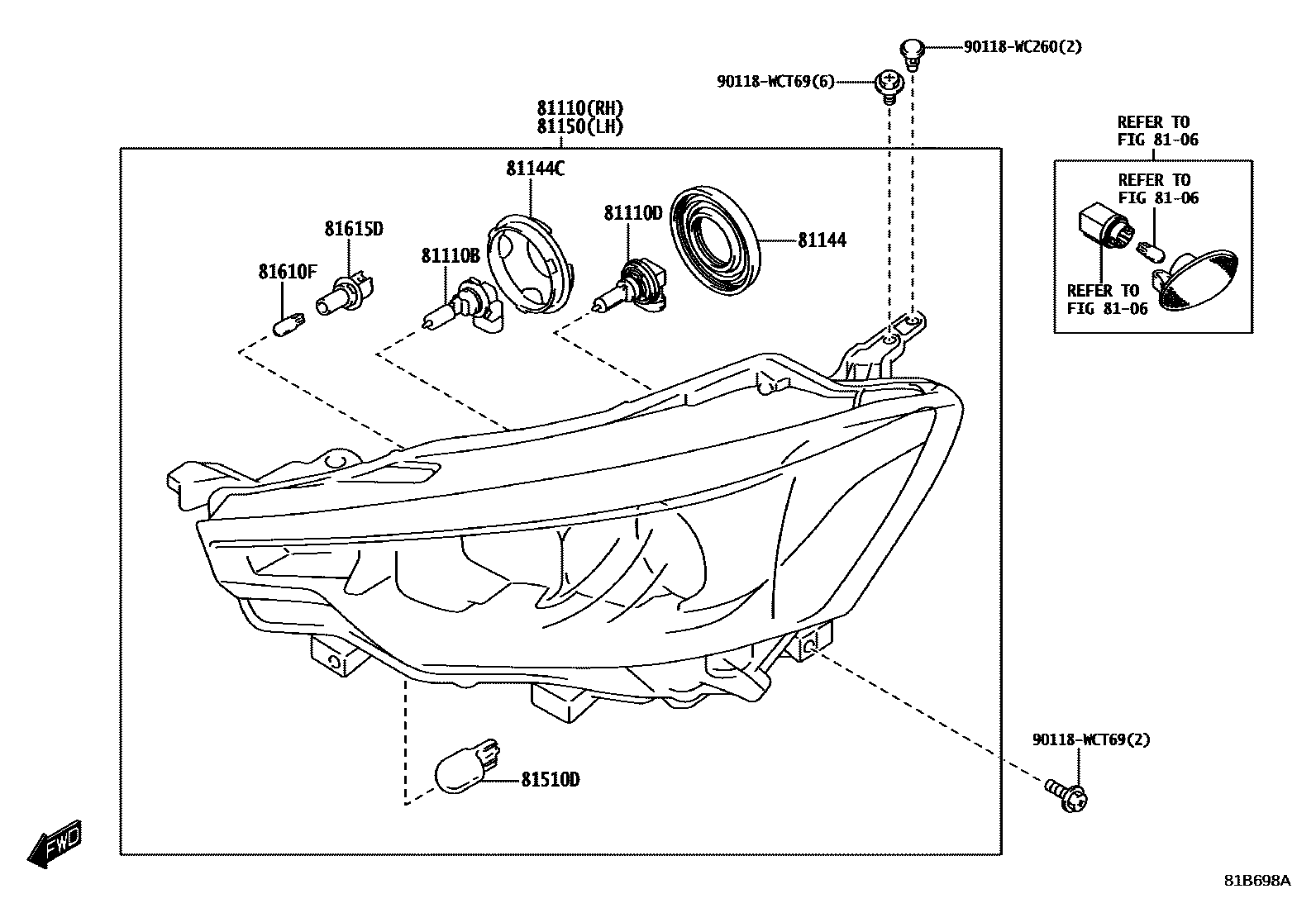

Toyota RUMION — HEADLAMP

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81110HEADLAMP ASSY, RH

main81110-WC020i202308

81110BBULB(FOR HEADLAMP, NO.1)

main90118-WCE79×2i202308

12V 60W

81110DBULB(FOR HEADLAMP, NO.2)

main90118-WCF93×2i202308

12V 55W

81144COVER, HEADLAMP, NO.1

main81615-WC002×2i202308

81144CCOVER, HEADLAMP SOCKET

main81135-WC003×2i202308

81150HEADLAMP ASSY, LH

main81150-WC020i202308

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90118-WCD12×2i202308

12V 21W

81610FBULB(FOR CLEARANCE LAMP)

main90118-WCD08×2i202308

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81128-WC002×2i202308

90118WC260

main90118-WC260

90118WCT69

main90118-WCT69

12 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota RUMION

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota RUMION. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), COVER, HEADLAMP, NO.1.
