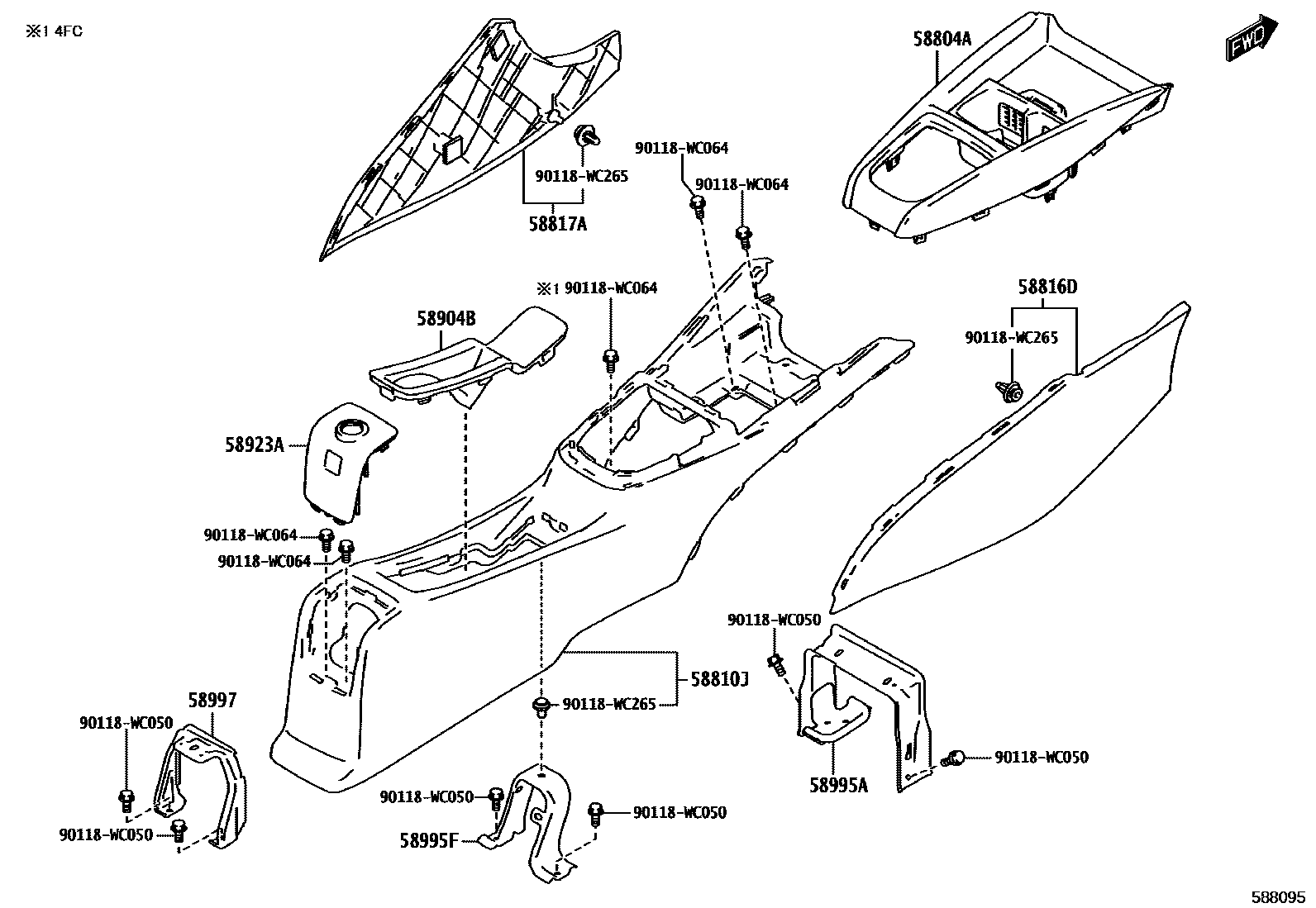

Toyota RUMION — CONSOLE BOX & BRACKET

0001 1W/O(ARMREST) 0002 1W(ARMREST)

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-WC001iK15B..SUD202205-202311

POS.31

58810JBOX ASSY, CONSOLE

main58810-WC016iK15B..4FC..S..AFR202108

POS.38

main58816-WC005iK15B..4FC..S..AFR202108

POS.1

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-WC006iK15B..5F..S..SA202108

POS.6

main58816-WC007iK15B..4FC..S..AFR202108

POS.18

58817AINSERT, CONSOLE BOX, FRONT NO.2

main55604-WC003iK15B..5F..S..SA202108

POS.13

main55604-WC004iK15B..4FC..S..AFR202108

POS.18

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58817-WC003iK15B..4FC..S..AFR202108

POS.13

main58818-WC001iK15B..4FC..S..AFR202108

POS.38

58923APANEL, CONSOLE REAR END

main58917-WC005iK15B..SUD202205-202311

POS.17

main58995-WC004iK15B..4FC..S..AFR202108

POS.1

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-WC006iK15B..SUD202205-202311

POS.17

58995FBRACKET, CONSOLE BOX MOUNTING, NO.2

main58997-WC004iK15B..SUD202205-202311

POS.17

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58995-WC007iK15B..SUD202205-202311

POS.17

main58995-WC008iK15B..4FC..S..AFR202108

POS.1

90118WC050

main90118-WC050

90118WC064

main90118-WC064

90118WC265

main90118-WC265

12 parts on this diagram · 2 diagrams in section
