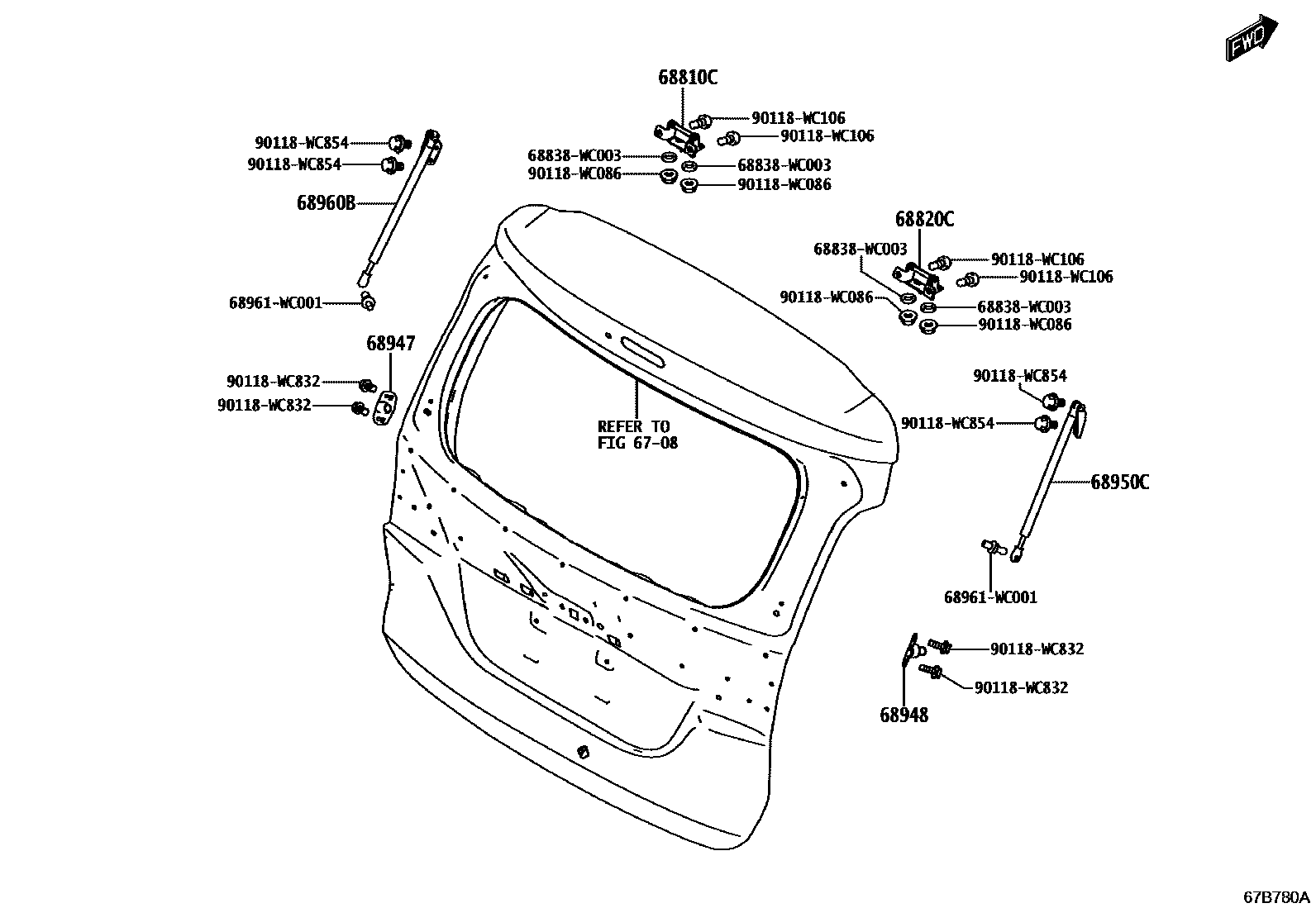

Toyota RUMION — BACK DOOR LOCK & HANDLE
6708BACK DOOR PANEL & GLASS
68810CHINGE ASSY, BACK DOOR, RH
POS.11; POS.17; POS.23; POS.31
68820CHINGE ASSY, BACK DOOR, LH
POS.11; POS.17; POS.23; POS.31
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
POS.11; POS.17; POS.23; POS.31
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
POS.11; POS.17; POS.23; POS.31
68950CSTAY ASSY, BACK DOOR, RH
main68950-WC003iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
68960BSTAY ASSY, BACK DOOR, LH
main68960-WC002iK15B..4FC..R..AFR; K15B..4FC..R..SA; K15B..4FC..S..AFR; K15B..4FC..S..SA; K15B..5F..R..AFR; K15B..5F..R..SA; K15B..5F..S..AFR; K15B..5F..S..SA; K15B..I..AFR; K15B..I..SA202108
POS.1; POS.10; POS.12; POS.13; POS.14; POS.15; POS.16; POS.18; POS.19; POS.2; POS.20; POS.21; POS.22; POS.24; POS.25; POS.26; POS.27; POS.28; POS.29; POS.3; POS.30; POS.32; POS.33; POS.34; POS.35; POS.36; POS.37; POS.38; POS.39; POS.4; POS.5; POS.6; POS.7; POS.8; POS.9
68838WC003PAD, BACK DOOR HINGE, NO.1
main68838-WC003
68961WC001BOLT, BACK DOOR STAY
main68961-WC001
90118WC086
main90118-WC086
90118WC106
main90118-WC106
90118WC832
main90118-WC832
90118WC854
main90118-WC854
13 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota RUMION
This section contains 20 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota RUMION. Key components include: BACK DOOR PANEL & GLASS, HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, LOWER RH, BRACKET, BACK DOOR DAMPER STAY, LOWER LH.
