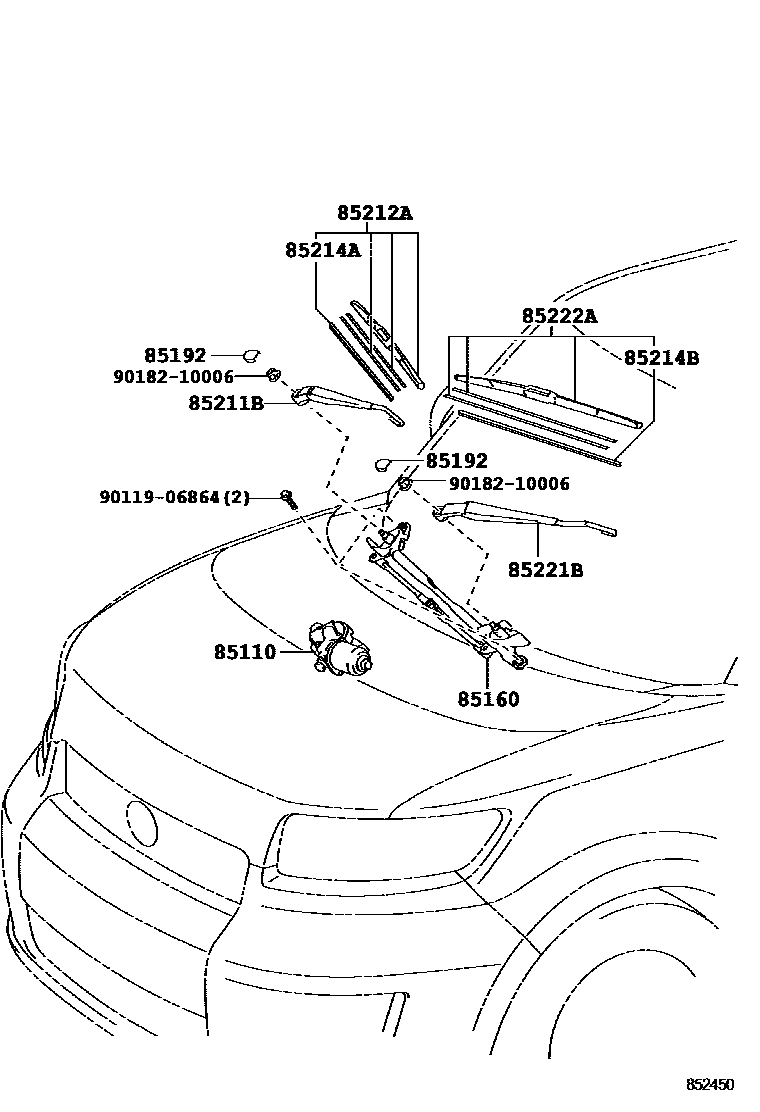

Toyota RUKUS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52261i201003

85160LINK ASSY, WINDSHIELD WIPER

main85150-12B00i201003

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i201003

85211BARM, FRONT WIPER, RH

main85211-12590i201003

85212ABLADE, FR WIPER, RH

main85212-12460i201003

85214ARUBBER, WIPER, RH

main85214-53080i201003

85214BRUBBER, WIPER, LH

main85214-53090i201003

85221BARM, FRONT WIPER, LH

main85221-12530i201003

85222ABLADE, FR WIPER, LH

main85222-12880i201003

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota RUKUS

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota RUKUS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
