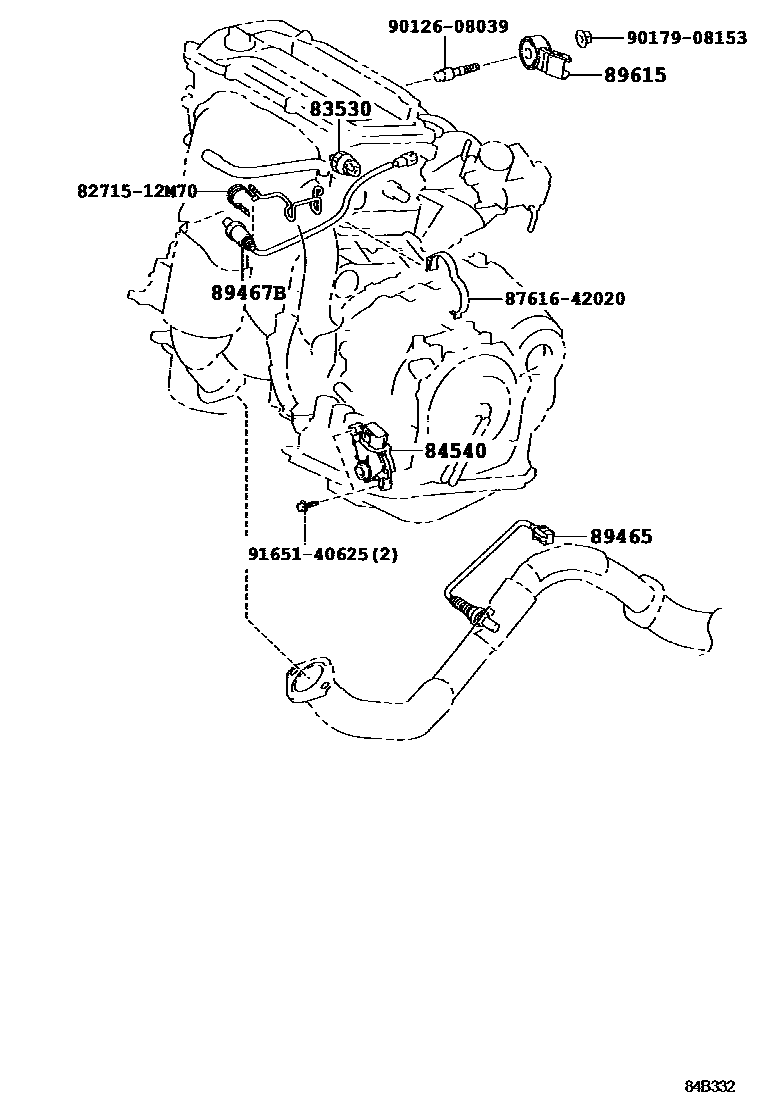

Toyota RUKUS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAZE151201003-201512

84540SWITCH ASSY, NEUTRAL START

main84540-42010iAZE151201310-201512

*346

main84540-48010iAZE151201003-201310

*199

89465SENSOR, OXYGEN

main89465-12A00iAZE151201003-201512

89467BSENSOR, AIR FUEL RATIO

main89467-72010iAZE151201003-201512

89615SENSOR, KNOCK CONTROL

main89615-20090iAZE151201003

8271512M70BRACKET,WIRING HARNESS CLAMP

main82715-12M70

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

9017908153

main90179-08153

9165140625

main91651-40625

10 parts on this diagram · 6 diagrams in section
