Toyota RUKUS — SPEAKER

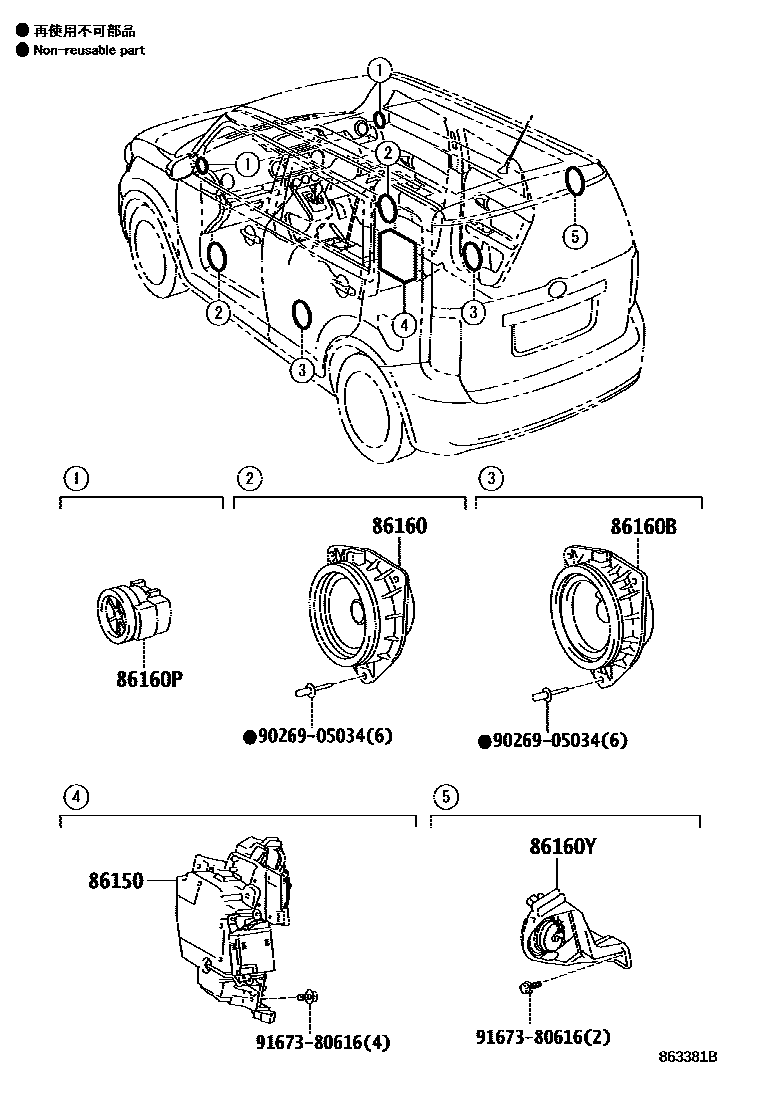

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86150-12200i201003-201210

main86150-12201i201211

86160SPEAKER ASSY, FRONT NO.1

main86160-2B580×2i201003-201107

main86160-33620×2i201003

main86160-52330×2i201108-201505

main86160-52331×2i201506

86160BSPEAKER ASSY, REAR

main86160-13080×2i201003

main86160-52220×2i201003

86160PSPEAKER ASSY, FRONT NO.2

main86160-52340×2i201108

main86160-68010×2i201003-201107

86160YSPEAKER ASSY, REAR NO.2

main86160-1A190i201003

9026905034

main90269-05034

9167380616

main91673-80616

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota RUKUS

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota RUKUS. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
