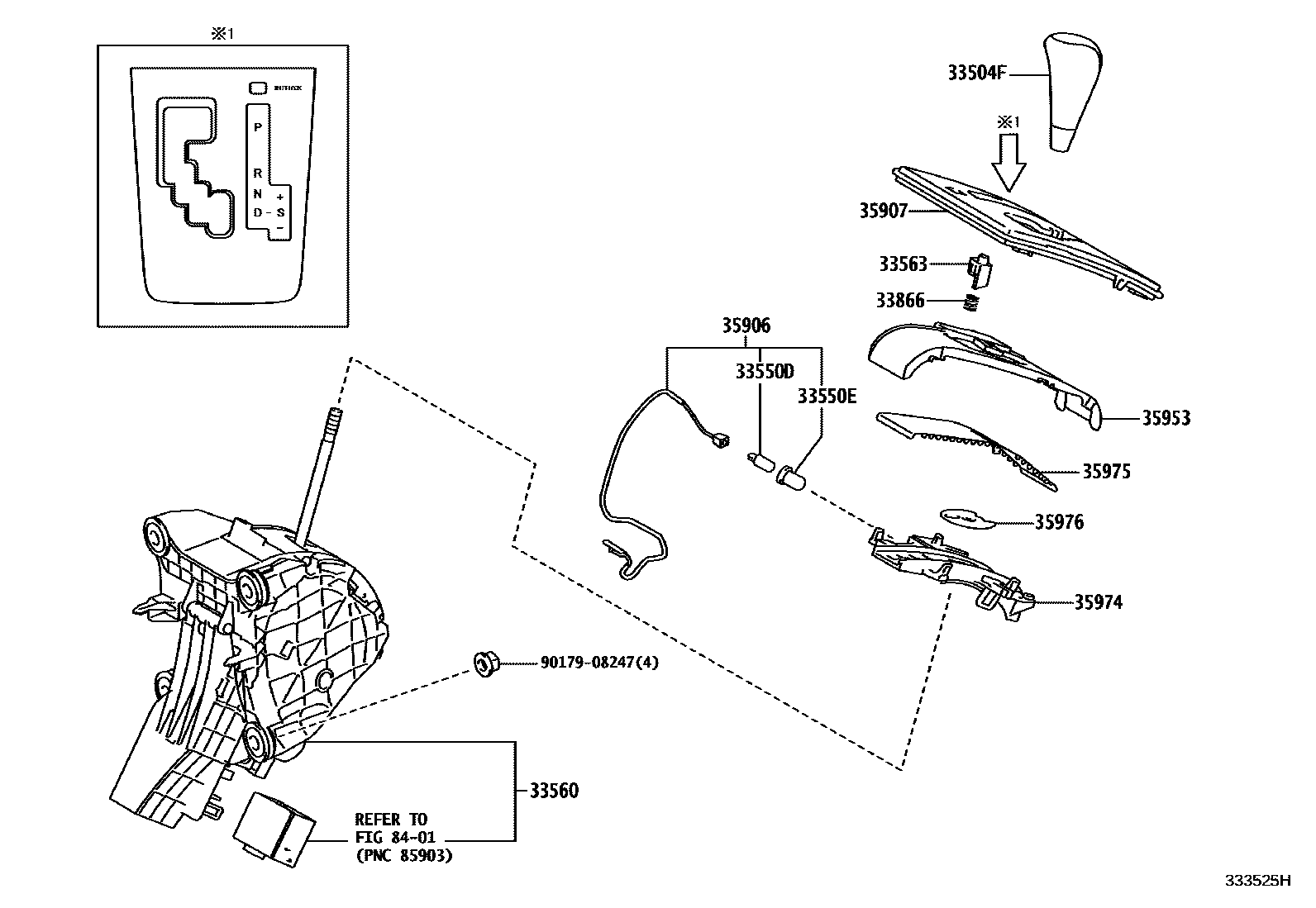

Toyota RUKUS — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-35050-B0i201003-201512

DK.GRAY,TRIM1#

main33504-35060-B0i201003-201512

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i201003-201512

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-12020i201003-201512

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12300i201003

33563BUTTON, SHIFT LOCK RELEASE

main33563-12280i201003

33866SPRING, SHIFT LOCK RELEASE

main33866-12050i201003

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12280i201003

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-12460i201003

35953GUIDE, POSITION INDICATOR LIGHT

main35953-12120i201003

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12290i201003

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52090i201003

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52090i201003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908247

main90179-08247

14 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota RUKUS

This section contains 23 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota RUKUS. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, BUTTON, SHIFT LOCK RELEASE.
