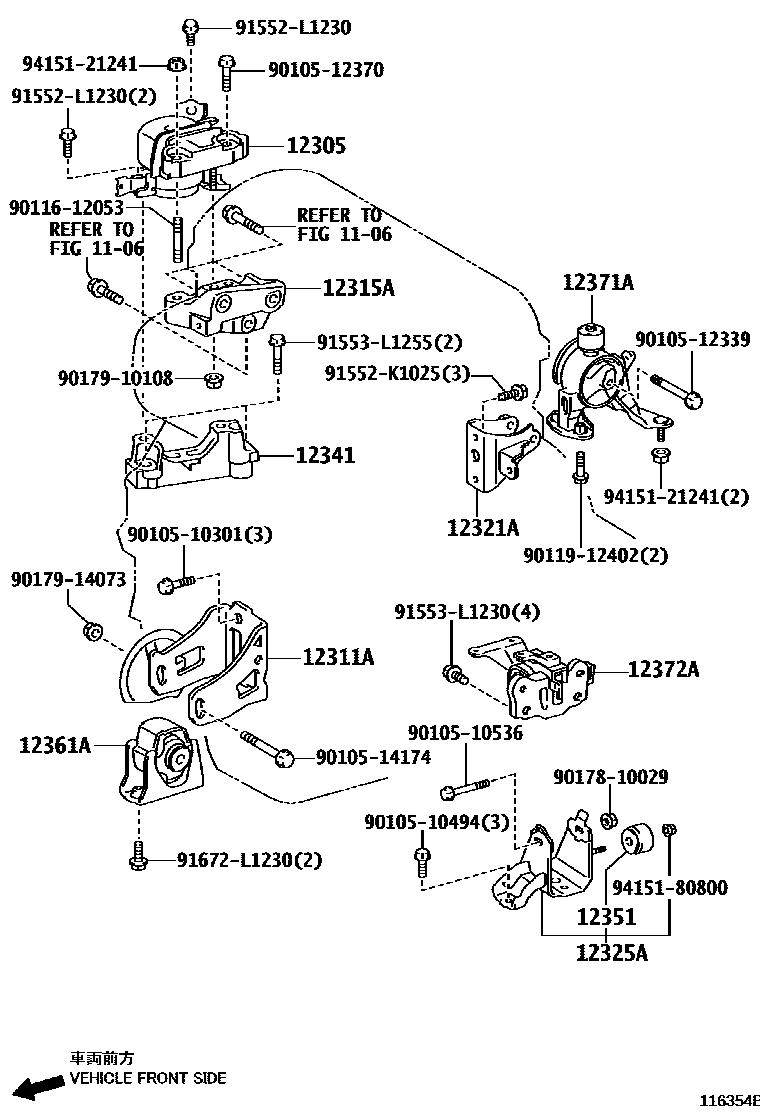

Toyota RUKUS — MOUNTING
1106TIMING GEAR COVER & REAR END PLATE
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
2AZ-FE,*195
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12341SPACER, ENGINE MOUNTING
12351DAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510494
main90105-10494
9010510536
main90105-10536
9010512339
main90105-12339
9010512370
main90105-12370
9010514174
main90105-14174
9011612053
main90116-12053
9011912402
main90119-12402
9017810029
main90178-10029
9017910108
main90179-10108
9017914073
main90179-14073
91552K1025
main91552-K1025
91552L1230
main91552-L1230
91553L1230
main91553-L1230
91553L1255
main91553-L1255
91672L1230
main91672-L1230
9415121241
main94151-21241
9415180800
main94151-80800
29 parts on this diagram · 1 diagram in section
MOUNTING for Toyota RUKUS
This section contains 29 genuine Toyota parts for the MOUNTING system of the Toyota RUKUS. Key components include: TIMING GEAR COVER & REAR END PLATE, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
