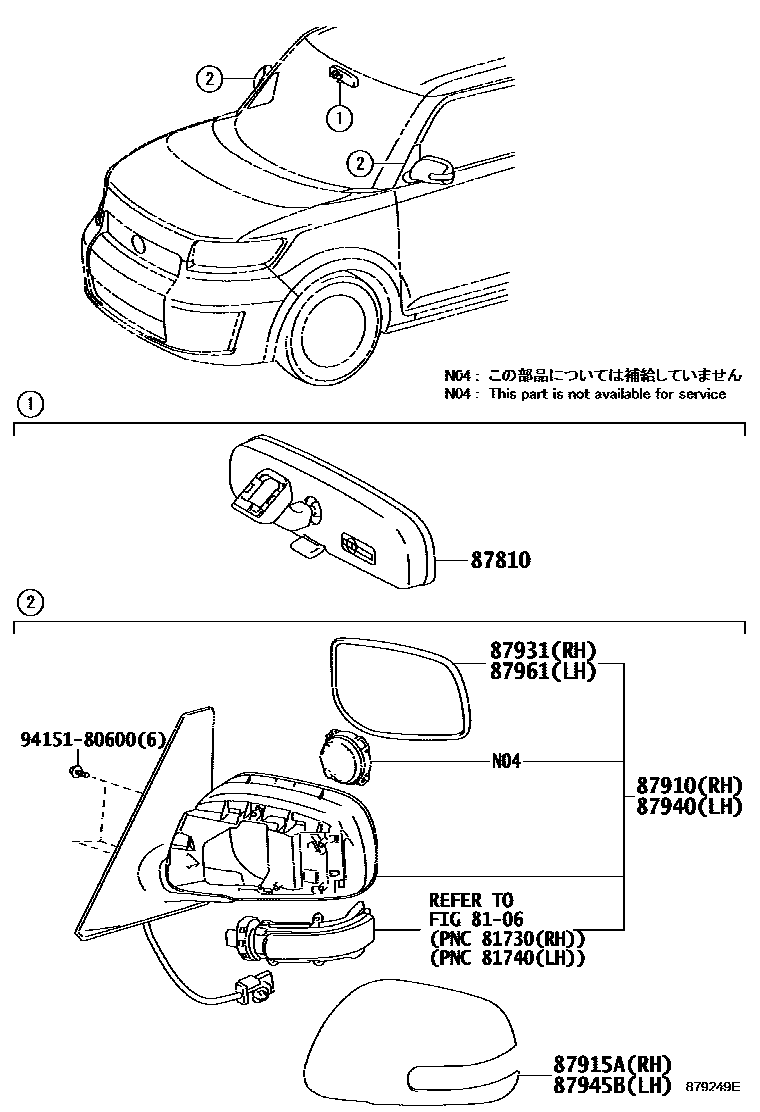

Toyota RUKUS — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041i201003-201512

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-12G60i201003

NO PAINT REQ.

87915ACOVER, OUTER MIRROR, RH

main87915-22050-A1i201003-201512

SUPER WHITE 2,040

main87915-22050-B0i201003-201512

SILVER ME.,1F7

main87915-22050-C1i201003-201512

BLACK MC.,209

main87915-22050-D0i201003-201512

BLACKISH RED MC.,3R0

main87915-22050-D1i201301-201512

SUPER RED 5,3P0

main87915-22050-E1i201003-201512

ARMY ROCK ME.,4V0

main87915-22050-J0i201301-201512

DK.BLUE MC.,8S6

main87915-22050-J2i201003-201301

BLUE ME.,8T4

main87915-22050-J7i201003-201512

COOL SODA ME.,8V7

main87915-22050-J8i201101-201103

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6

87931OUTER MIRROR, RH

main87931-12G60i201003

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12G60i201003

NO PAINT REQ.

87945BCOVER, OUTER MIRROR, LH

main87945-22030-A1i201003-201512

SUPER WHITE 2,040

main87945-22030-B0i201003-201512

SILVER ME.,1F7

main87945-22030-C1i201003-201512

BLACK MC.,209

main87945-22030-D0i201003-201512

BLACKISH RED MC.,3R0

main87945-22030-D1i201301-201512

SUPER RED 5,3P0

main87945-22030-E1i201003-201512

ARMY ROCK ME.,4V0

main87945-22030-J0i201301-201512

DK.BLUE MC.,8S6

main87945-22030-J2i201003-201301

BLUE ME.,8T4

main87945-22030-J7i201003-201512

COOL SODA ME.,8V7

main87945-22030-J8i201101-201103

LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6

87961MIRROR OUTER, LH

main87961-22A20i201003

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota RUKUS

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota RUKUS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, OUTER MIRROR, RH.
