Toyota RUKUS — HEATING & AIR CONDITIONING - COMPRESSOR

88310COMPRESSOR ASSY, W/PULLEY

main88310-1A730i201003-201204

main88310-1A731i201205-201512

88446CBOLT, MAGNET CLUTCH SETTING

main88446-12061×2i201003

9011908B42

main90119-08B42

9415180800

main94151-80800

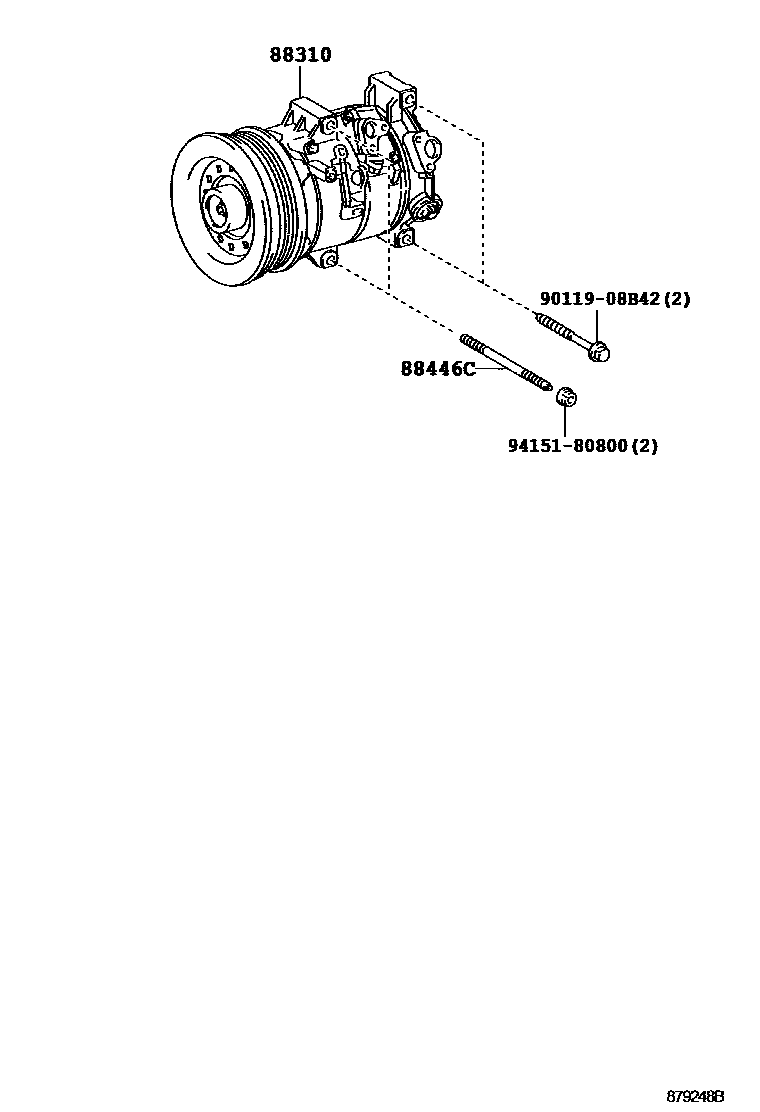

4 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota RUKUS

This section contains 4 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota RUKUS. Key components include: COMPRESSOR ASSY, W/PULLEY, BOLT, MAGNET CLUTCH SETTING.
