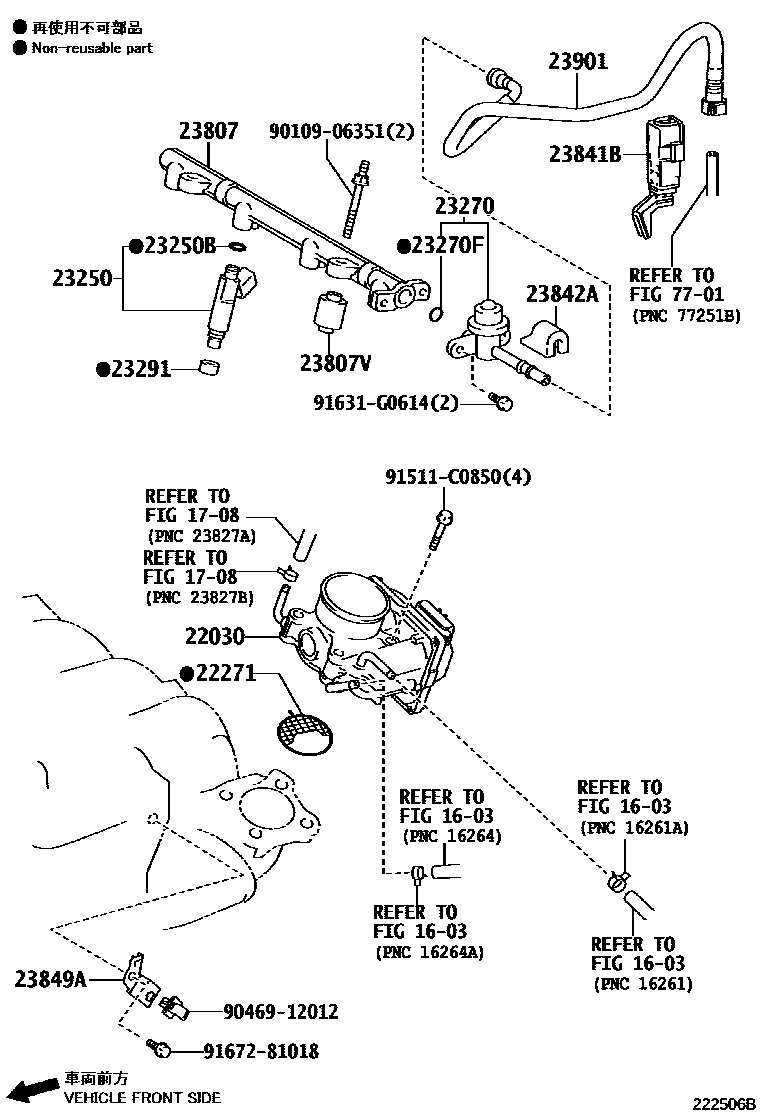

Toyota RUKUS — FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28071i201003

22271GASKET, THROTTLE BODY

main22271-75031i201003

23250INJECTOR ASSY, FUEL

main23209-0H030×4supersedes 23209-28080i201011-201204

2AZ-FE,(L),*195

main23209-28080×4i201011-201204

2AZ-FE,(J),*195

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201011-201204

2AZ-FE,*195

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28052i201011-201412

2AZ-FE,*195

main23270-28070supersedes 23270-28052i201412

2AZ-FE,*195

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i201003

*194; 2AZ-FE,*194

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4supersedes 23291-41010i201208

2AZ-FE,*195

main23291-41010×4i201011-201208

2AZ-FE,*195

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28031i201011-201412

2AZ-FE,*195

main23814-28060supersedes 23814-28031i201412

2AZ-FE,*195

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053×2i201003

*194; 2AZ-FE,*194

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i201003-201210

main23841-37090i201211-201512

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i201003

23849ASUPPORT, FUEL PIPE

main23849-28080i201003

23901TUBE SUB-ASSY, FUEL

main23901-28400i201003-201512

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010906351

main90109-06351

9046912012

main90469-12012

91511C0850

main91511-C0850

91631G0614

main91631-G0614

9167281018

main91672-81018

21 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota RUKUS

This section contains 21 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota RUKUS. Key components include: RADIATOR & WATER OUTLET, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL.
