Toyota RUKUS — FRONT FENDER APRON & DASH PANEL

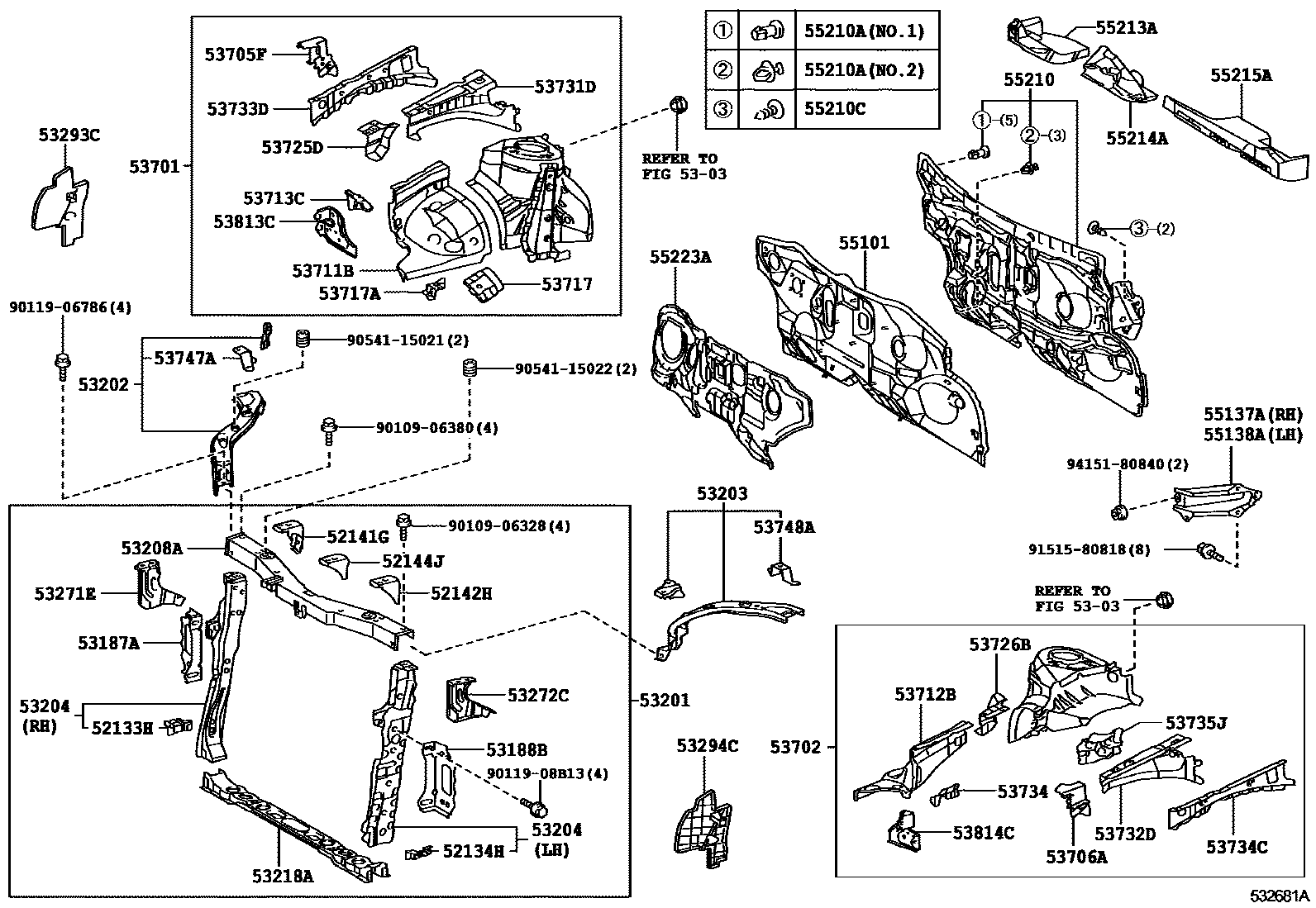

Parts diagram
52133HBRACKET, FRONT BUMPER, RH
main52133-12150i201003
52134HBRACKET, FRONT BUMPER, LH
main52134-12090i201003
52141GSTAY, FRONT BUMPER, RH
main52081-12050i201003
52142HSTAY, FRONT BUMPER, LH
main52082-12050i201003
52144JSTAY, FRONT BUMPER, CENTER
main52085-12040i201003
5303HOOD LOCK & HINGE
→ Go to FIG 53-03
53187ASTAY, RADIATOR SUPPORT, RH
main53187-12030i201003
53188BSTAY, RADIATOR SUPPORT, LH
main53188-12030i201003
53201SUPPORT SUB-ASSY, RADIATOR
main53201-12905i201003
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-12550i201003
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-12480i201003
53204BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER
main53204-12060i201003
LH
main53209-12140i201003
RH
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-12560i201003
53218ASUPPORT, RADIATOR, LOWER
main53218-12901i201003
53271EBRACKET, HEADLAMP MOUNTING, RH
main53271-12090i201003
53272CBRACKET, HEADLAMP MOUNTING, LH
main53272-12060i201003
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-12130i201003
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-12150i201003
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-12A30i201003-201512
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-12A40i201003-201512
53705FBRACE SUB-ASSY, FENDER APRON, RH
main53705-12030i201003
53706ABRACE SUB-ASSY, FENDER APRON, LH
main53706-12050i201003
53711BAPRON, FRONT FENDER, FRONT RH
main53711-12270i201003
53712BAPRON, FRONT FENDER, FRONT LH
main53712-12220i201003-201312
main53712-12221i201401
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
main53713-12160i201003
53717PLATE, FENDER APRON, RH
main53717-12070i201003
53717APLATE, FENDER APRON
main53718-12060i201003
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
main53725-12040i201003
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
main53726-12040i201003
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-12170i201003
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-12150i201003
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
main53733-12070i201003
53734PATCH, FRONT FENDER APRON, NO.4
main53736-12070i201003
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
main53734-12070i201003
53735JPATCH, FRONT FENDER APRON, NO.5
main53735-12070i201003
53747AEXTENSION, APRON FENDER SIDE, RH
main53747-12050i201003
53748AEXTENSION, APRON FENDER SIDE, LH
main53748-12060i201003
53813CEXTENSION, FRONT FENDER, RH
main53813-12150i201003
53814CEXTENSION, FRONT FENDER, LH
main53814-12100i201003
55101PANEL SUB-ASSY, DASH
main55101-12C30i201003-201512
55137ABRACE, DASH TO FRAME, RH
main55137-12050i201003
55138ABRACE, DASH TO FRAME, LH
main55138-12020i201003
55210INSULATOR ASSY, DASH PANEL
main55210-12600i201003-201408
main55210-12601i201408
55210ACLIP
main90467-11122×5i201003
NO.1:REFER ILLUST.
main90467-11127×3i201003
NO.2:REFER ILLUST.
55210CCLIP
main90467-08186-C0×2i201003-201512
BLACK
55213APAD, DASH PANEL SILENCER
main55213-12670i201003-201408
main55213-12671i201408
55214APAD, DASH PANEL INSULATOR, NO.2
main55214-12060i201003
55215APAD, DASH PANEL INSULATOR, NO.3
main55215-12140i201003
55223AINSULATOR, DASH PANEL, OUTER
main55223-12170i201003
9010906328
main90109-06328
9010906380
main90109-06380
9011906786
main90119-06786
9011908B13
main90119-08B13
9054115021
main90541-15021
9054115022
main90541-15022
9151580818
main91515-80818
9415180840
main94151-80840

57 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota RUKUS

This section contains 57 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota RUKUS. Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, STAY, FRONT BUMPER, RH, STAY, FRONT BUMPER, LH, STAY, FRONT BUMPER, CENTER.
