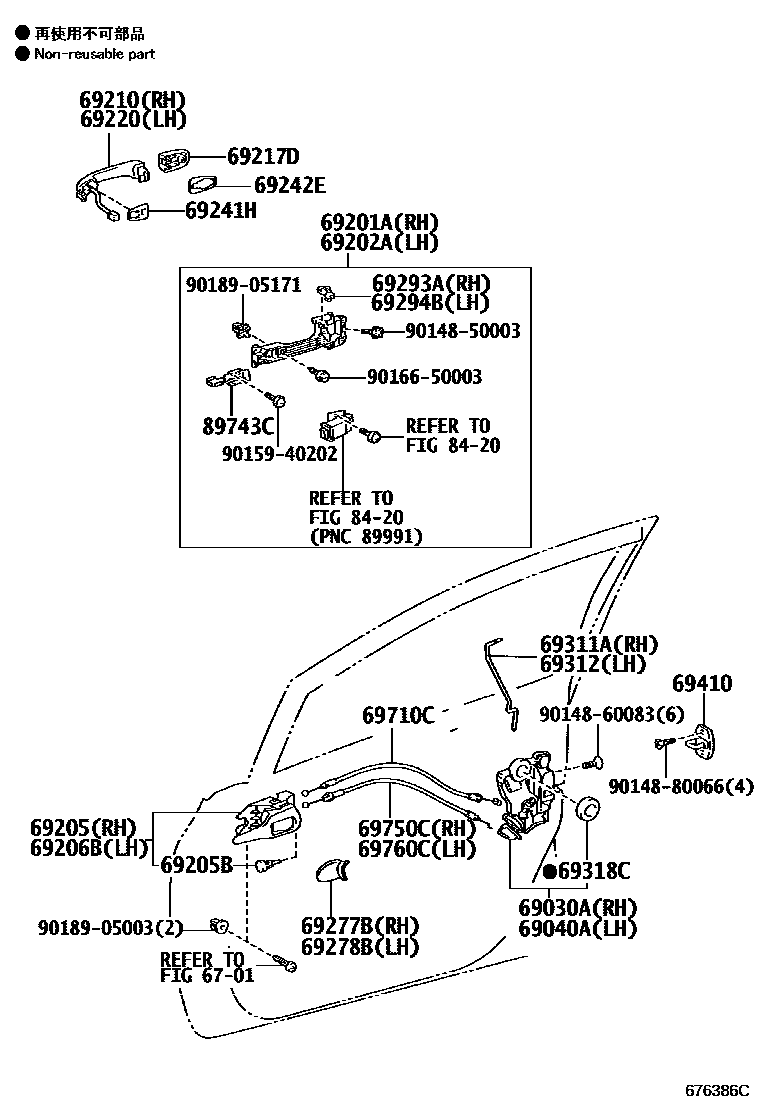

Toyota RUKUS — FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
ORNAMENT SILVER,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
ORNAMENT SILVER,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BLUE ME.,8T4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
COOL SODA ME.,8V7
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
SUPER WHITE 2,040,FRONT PASSENGER SIDE
BLACK MC.,209,FRONT PASSENGER SIDE
SUPER RED 5,3P0,FRONT PASSENGER SIDE
DK.VIOLET M.M.,9AF,FRONT PASSENGER SIDE
ARMY ROCK ME.,4V0,FRONT PASSENGER SIDE
SILVER ME.,1F7,FRONT PASSENGER SIDE
BLUE ME.,8T4,FRONT PASSENGER SIDE
DK.BLUE MC.,8S6,FRONT PASSENGER SIDE
COOL SODA ME.,8V7,FRONT PASSENGER SIDE
BLACKISH RED MC.,3R0,FRONT PASSENGER SIDE
SUPER WHITE 2,040,DRIVER SEAT SIDE
BLACK MC.,209,DRIVER SEAT SIDE
DK.VIOLET M.M.,9AF,DRIVER SEAT SIDE
ARMY ROCK ME.,4V0,DRIVER SEAT SIDE
SILVER ME.,1F7,DRIVER SEAT SIDE
BLUE ME.,8T4,DRIVER SEAT SIDE
DK.BLUE MC.,8S6,DRIVER SEAT SIDE
COOL SODA ME.,8V7,DRIVER SEAT SIDE
SUPER RED 5,3P0,DRIVER SEAT SIDE
BLACKISH RED MC.,3R0,DRIVER SEAT SIDE
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6,PASSENGER SIDE
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6,DRIVER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
SUPER RED 5,3P0
BLUE ME.,8T4
DK.BLUE MC.,8S6
DK.VIOLET M.M.,9AF
ARMY ROCK ME.,4V0
COOL SODA ME.,8V7
BLACKISH RED MC.,3R0
LIMITED PACKAGE-SPECIAL EDITION,BLUE,8T6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH DOOR
LH DOOR
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota RUKUS
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota RUKUS. Key components include: FRONT DOOR PANEL & GLASS, LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH.
