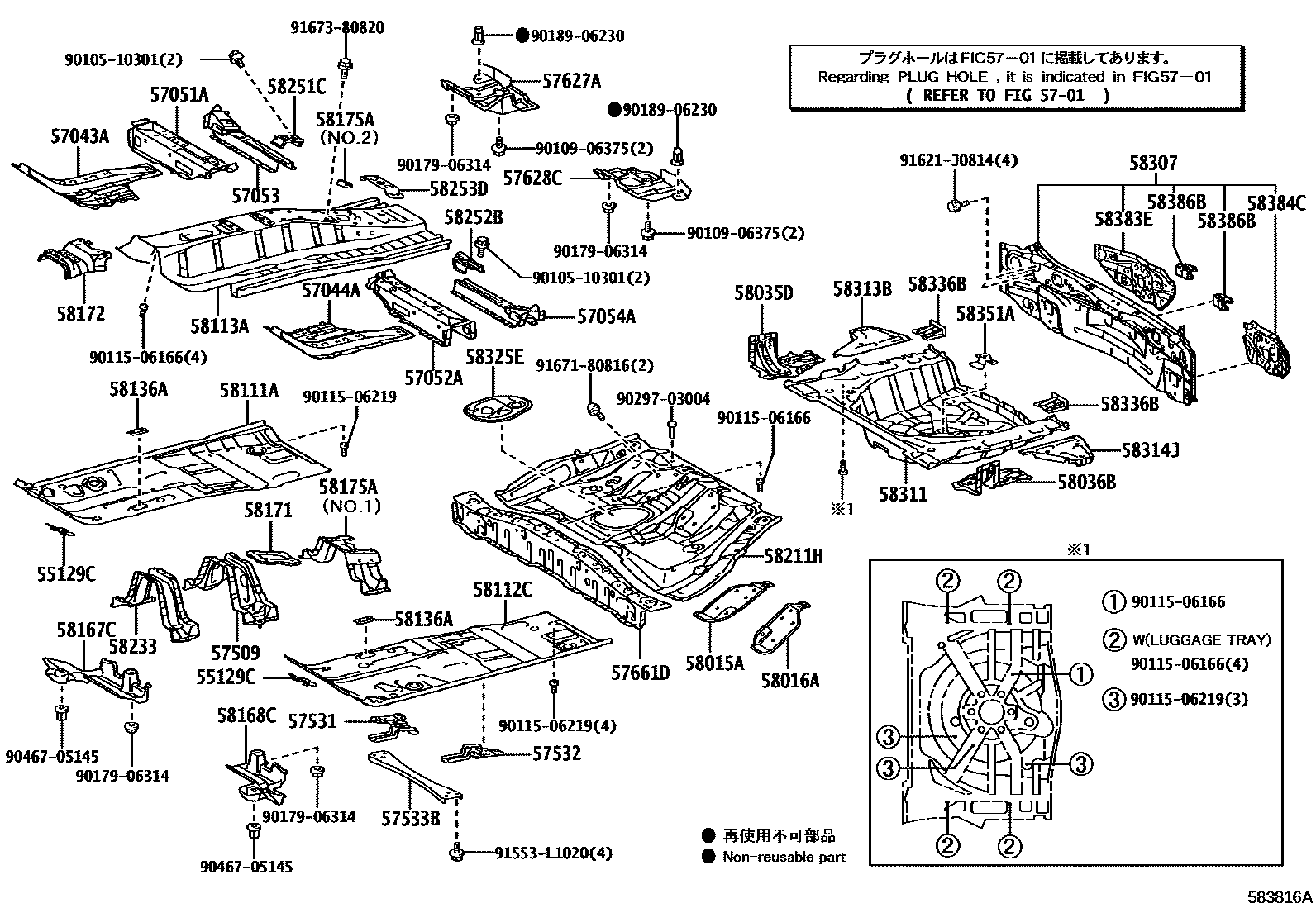

Toyota RUKUS — FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-12040iAZE151201003

RH

main55139-12050iAZE151201003

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iAZE151201003

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iAZE151201003

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060iAZE151201003

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010iAZE151201003

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010iAZE151201003

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010iAZE151201003

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12061iAZE151201003-201108

main58161-12231iAZE151201108

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iAZE151201003

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iAZE151201003

57533BBRACE, FRONT FLOOR, CENTER

main57533-12010iAZE151201003

57627ACOVER, REAR FLOOR SIDE MEMBER, RH

main57627-12051iAZE151201003-201512

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-12081iAZE151201003-201512

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-12101iAZE151201003-201505

main57407-12103iAZE151201505

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-47041iAZE151201003-201401

main58015-47042iAZE151201402

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-47031iAZE151201003

58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH

main58305-12040iAZE151201003

58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH

main58306-12030iAZE151201003

58111APAN, FRONT FLOOR, RH

main58111-12915iAZE151201003

58112CPAN, FRONT FLOOR, LH

main58112-12901iAZE151201003

58113APANEL, FRONT FLOOR, CENTER

main58113-12901iAZE151201003

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2iAZE151201003

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-12010iAZE151201003

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-12010iAZE151201003

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12120iAZE151201003

58172BRACKET, COMPUTER MOUNTING, NO.3

main58173-12020iAZE151201003

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main57805-12150iAZE151201003-201207

NO.1

main57805-12151iAZE151201208

NO.1

main58176-12020iAZE151201003

NO.2

58211HPAN, CENTER FLOOR

main58211-12936iAZE151201003

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iAZE151201003

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iAZE151201003

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iAZE151201003

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060iAZE151201003

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12B10iAZE151201003

58311PAN, REAR FLOOR

main58311-12280iAZE151201003-201107

main58311-12370iAZE151201108-201201

main58311-12371iAZE151201202

58313BPANEL, REAR FLOOR SIDE, RH

main58313-12310iAZE151201003-201512

58314JPANEL, REAR FLOOR SIDE, LH

main58314-12310iAZE151201003-201512

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12130iAZE151201003

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12090×2iAZE151201003

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12060iAZE151201003

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-12140iAZE151201003

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-12200iAZE151201003

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020×2iAZE151201003

9010510301

main90105-10301

9010906375

main90109-06375

9011506166

main90115-06166

9011506219

main90115-06219

9017906314

main90179-06314

9018906230

main90189-06230

9029703004

main90297-03004

9046705145

main90467-05145

91553L1020

main91553-L1020

91621J0814

main91621-J0814

9167180816

main91671-80816

9167380820

main91673-80820

55 parts on this diagram · 1 diagram in section
