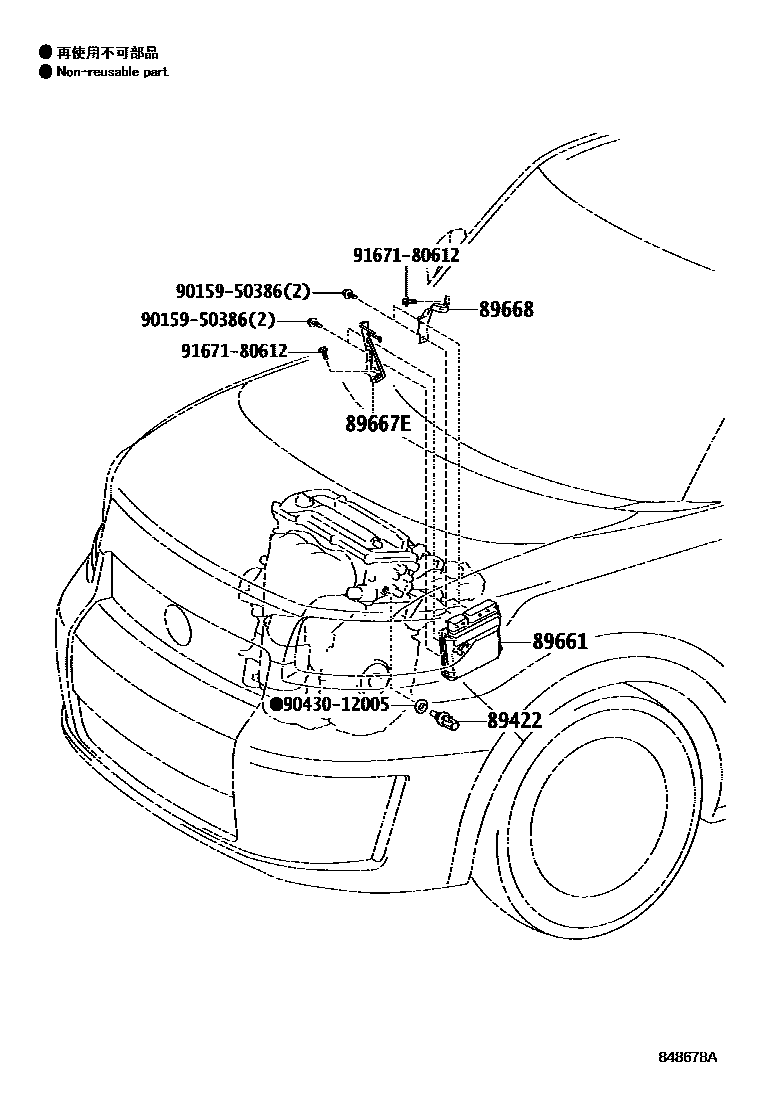

Toyota RUKUS — ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010i201408-201512

(L)

main89422-33030i201003-201408

89661COMPUTER, ENGINE CONTROL

main89661-12N20i201003-201408

main89661-12Q10i201408

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12210i201003

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12190i201003

9015950386

main90159-50386

9043012005

main90430-12005

9167180612

main91671-80612

7 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota RUKUS

This section contains 7 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota RUKUS. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, NO.1, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
