Toyota RUKUS — CRANKSHAFT & PISTON

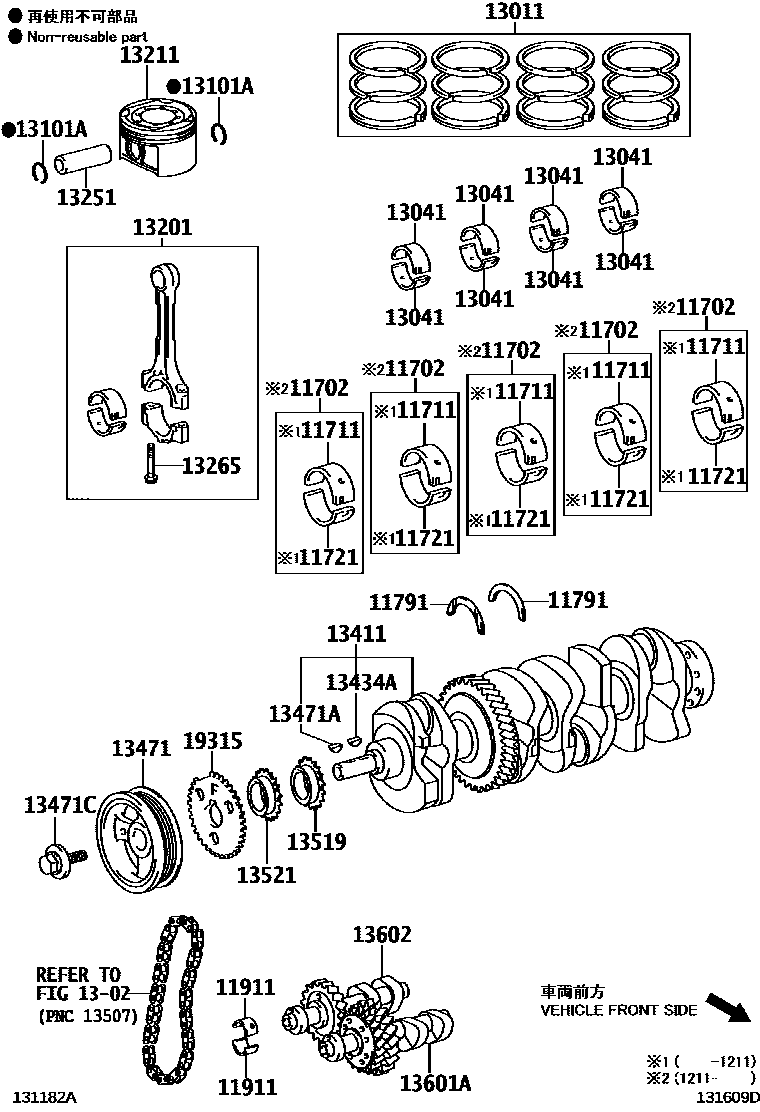

Parts diagram
11702BEARING SET, CRANKSHAFT
main11701-28010-01×5supersedes 11701-0H040-04i201211
2AZ-FE,MARK 1,*195:REFER R/M
main11701-28010-02×5supersedes 11701-0H040-04i201211
2AZ-FE,MARK 2,*195:REFER R/M
main11701-28010-03×5supersedes 11701-0H040-04i201211
2AZ-FE,MARK 3,*195:REFER R/M
main11701-28010-04×5supersedes 11701-0H040-04i201211
2AZ-FE,MARK 4,*195:REFER R/M
11711BEARING, CRANKSHAFT
main11711-28021-01×5supersedes 11711-0H041-04i201011-201211
2AZ-FE,MARK 1,*195:REFER R/M
main11711-28021-02×5supersedes 11711-0H041-04i201011-201211
2AZ-FE,MARK 2,*195:REFER R/M
main11711-28021-03×5supersedes 11711-0H041-04i201011-201211
2AZ-FE,MARK 3,*195:REFER R/M
main11711-28021-04×5supersedes 11711-0H041-04i201011-201211
2AZ-FE,MARK 4,*195:REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-28021-01×5supersedes 11721-0H041-04i201011-201211
2AZ-FE,MARK 1,*195:REFER R/M
main11721-28021-02×5supersedes 11721-0H041-04i201011-201211
2AZ-FE,MARK 2,*195:REFER R/M
main11721-28021-03×5supersedes 11721-0H041-04i201011-201211
2AZ-FE,MARK 3,*195:REFER R/M
main11721-28021-04×5supersedes 11721-0H041-04i201011-201211
2AZ-FE,MARK 4,*195:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-28020×2i201011
STD,2AZ-FE,*195
11911BEARING, BALANCESHAFT, NO.1
main11911-28011-01×8supersedes 11911-28011-03i201011
2AZ-FE,MARK 1,*195:REFER R/M
main11911-28011-02×8supersedes 11911-28011-03i201011
2AZ-FE,MARK 2,*195:REFER R/M
main11911-28011-03×8i201011
2AZ-FE,MARK 3,*195:REFER R/M
13011RING SET, PISTON
main13011-28161supersedes 13011-28260i201003-201501
STD,*194; STD,2AZ-FE,*194
main13011-28260i201501
STD,*194,*195; STD,2AZ-FE,*194
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
13041BEARING, CONNECTING ROD
main13281-28011-01×8supersedes 13281-0H041-03i201011
2AZ-FE,MARK 1,*195:REFER R/M
main13281-28011-02×8supersedes 13281-0H041-03i201011
2AZ-FE,MARK 2,*195:REFER R/M
main13281-28011-03×8supersedes 13281-0H041-03i201011
2AZ-FE,MARK 3,*195:REFER R/M
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×8i201003
*194; 2AZ-FE,*194
13201ROD SUB-ASSY, CONNECTING
main13201-09791-A0×4supersedes 13201-29686-C0i201011-201204
2AZ-FE,MARK A,*195,(L):REFER R/M
main13201-09791-B0×4supersedes 13201-29686-C0i201011-201204
2AZ-FE,MARK B,*195,(L):REFER R/M
main13201-09791-C0×4supersedes 13201-29686-C0i201011-201204
2AZ-FE,MARK C,*195,(L):REFER R/M
main13201-29686-A0×4supersedes 13201-29686-C0i201204
2AZ-FE,MARK A,*195:REFER R/M
main13201-29686-B0×4supersedes 13201-29686-C0i201204
2AZ-FE,MARK B,*195:REFER R/M
main13201-29686-C0×4i201204
2AZ-FE,MARK C,*195:REFER R/M
13211PISTON
main13211-0H052-A0×4supersedes 13211-28141-C0i201003-201501
2AZ-FE,MARK A,*194:REFER R/M; MARK A,*194:REFER R/M
main13211-0H052-B0×4supersedes 13211-28141-C0i201003-201501
2AZ-FE,MARK B,*194:REFER R/M; MARK B,*194:REFER R/M
main13211-0H052-C0×4supersedes 13211-28141-C0i201003-201501
2AZ-FE,MARK C,*194:REFER R/M; MARK C,*194:REFER R/M
main13211-28112-A0×4supersedes 13211-28141-C0i201011-201501
2AZ-FE,MARK A,*195:REFER R/M
main13211-28112-B0×4supersedes 13211-28141-C0i201011-201501
2AZ-FE,MARK B,*195:REFER R/M
main13211-28112-C0×4supersedes 13211-28141-C0i201011-201501
2AZ-FE,MARK C,*195:REFER R/M
main13211-28141-A0×4supersedes 13211-28141-C0i201501
2AZ-FE,MARK A,*194:REFER R/M; 2AZ-FE,MARK A,*195:REFER R/M; MARK A,*194:REFER R/M
main13211-28141-B0×4supersedes 13211-28141-C0i201501
2AZ-FE,MARK B,*194:REFER R/M; 2AZ-FE,MARK B,*195:REFER R/M; MARK B,*194:REFER R/M
main13211-28141-C0×4i201501
2AZ-FE,MARK C,*194:REFER R/M; 2AZ-FE,MARK C,*195:REFER R/M; MARK C,*194:REFER R/M
13251PIN, PISTON
main13251-0H040-A0×4supersedes 13251-28020-C0i201003
2AZ-FE,MARK A,*194,(L):REFER R/M; MARK A,*194,(L):REFER R/M
main13251-0H040-B0×4supersedes 13251-28020-C0i201003
2AZ-FE,MARK B,*194,(L):REFER R/M; MARK B,*194,(L):REFER R/M
main13251-0H040-C0×4supersedes 13251-28020-C0i201003
2AZ-FE,MARK C,*194,(L):REFER R/M; MARK C,*194,(L):REFER R/M
main13251-28020-A0×4supersedes 13251-28020-C0i201011
2AZ-FE,MARK A,*195:REFER R/M
main13251-28020-B0×4supersedes 13251-28020-C0i201011
2AZ-FE,MARK B,*195:REFER R/M
main13251-28020-C0×4i201011
2AZ-FE,MARK C,*195:REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010×8i201011
2AZ-FE,*195
13411CRANKSHAFT
main13401-0H010supersedes 13401-28010i201011-201204
2AZ-FE,(L),*195
main13401-28010i201011
2AZ-FE,(J),*195
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i201011
2AZ-FE,*195
13471PULLEY, CRANKSHAFT
main13470-28020i201011
2AZ-FE,*195
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30416i201011
2AZ-FE,*195
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106supersedes 90119-C0499i201011-201504
2AZ-FE,*195
main90119-14175supersedes 90119-C0499i201505
2AZ-FE,*195
main90119-C0124supersedes 90119-C0499i201003-201505
*194; 2AZ-FE,*194
main90119-C0499i201505
*194; 2AZ-FE,*194
13519GEAR, OIL PUMP DRIVE
main13519-28010i201011
2AZ-FE,*195
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-28030i201011
2AZ-FE,*195
13601ABALANCESHAFT SUB-ASSY, NO.1
main13601-28020i201011-201402
2AZ-FE,*195
main13601-28021supersedes 13601-28020i201402
2AZ-FE,*195
13602BALANCESHAFT SUB-ASSY, NO.2
main13602-28020i201011
2AZ-FE,*195
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-28010i201011
2AZ-FE,*195

23 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota RUKUS

This section contains 23 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota RUKUS. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER, BEARING, BALANCESHAFT, NO.1.
