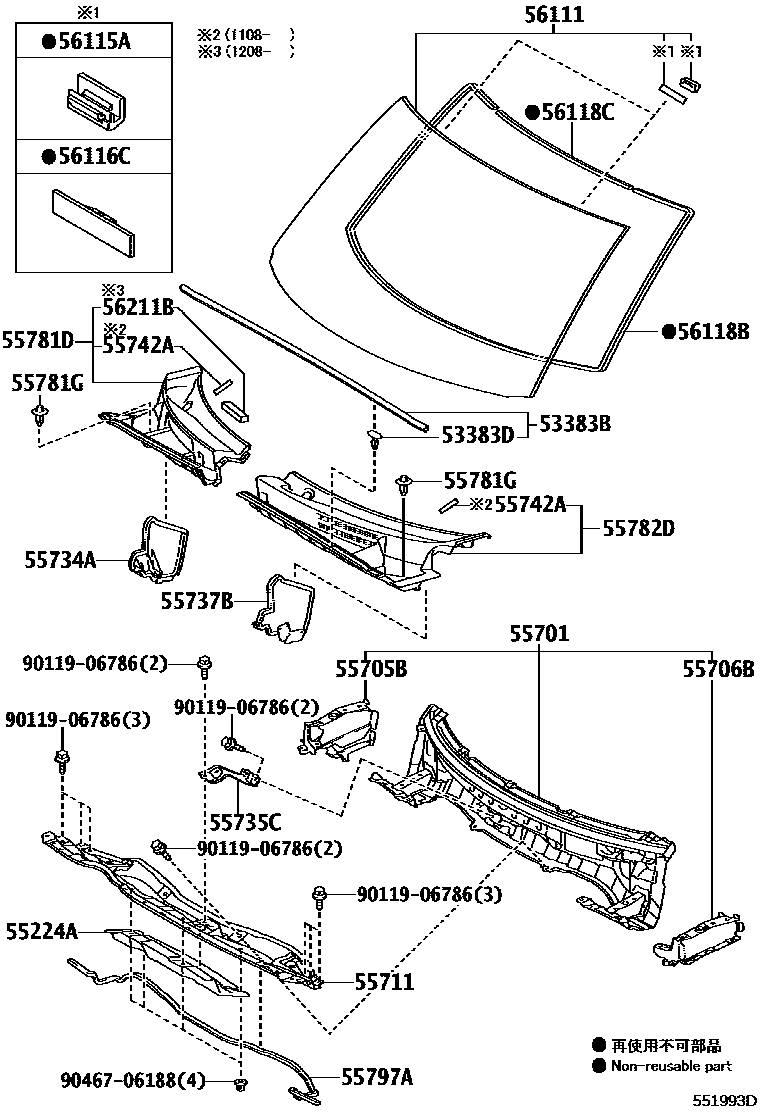

Toyota RUKUS — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12180i201003

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×5i201003

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-12040i201003

55701PANEL SUB-ASSY, COWL

main55700-12B40i201003

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12120i201003

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12130i201003

55711PANEL, COWL TOP, OUTER

main55701-12A90i201003

55734APLATE, WATER GUARD, RH

main55734-12190i201003

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-12080i201003

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-12120i201003

55742ASHEET, COWL TOP INSULATOR

main55743-12070×11i201108

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12380i201003

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i201003-201512

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12152i201003

55797ASEAL, COWL WATER EXTRACT

main55797-12070i201003

56111GLASS, WINDSHIELD

main56101-12480i201003

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i201003

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201003

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12320i201003

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-12080i201003

L=643

56211BCUSHION, WINDSHIELD

main75129-21010i201208

9011906786

main90119-06786

9046706188

main90467-06188

23 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota RUKUS

This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota RUKUS. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), INSULATOR, DASH PANEL, OUTER NO.2, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH.
