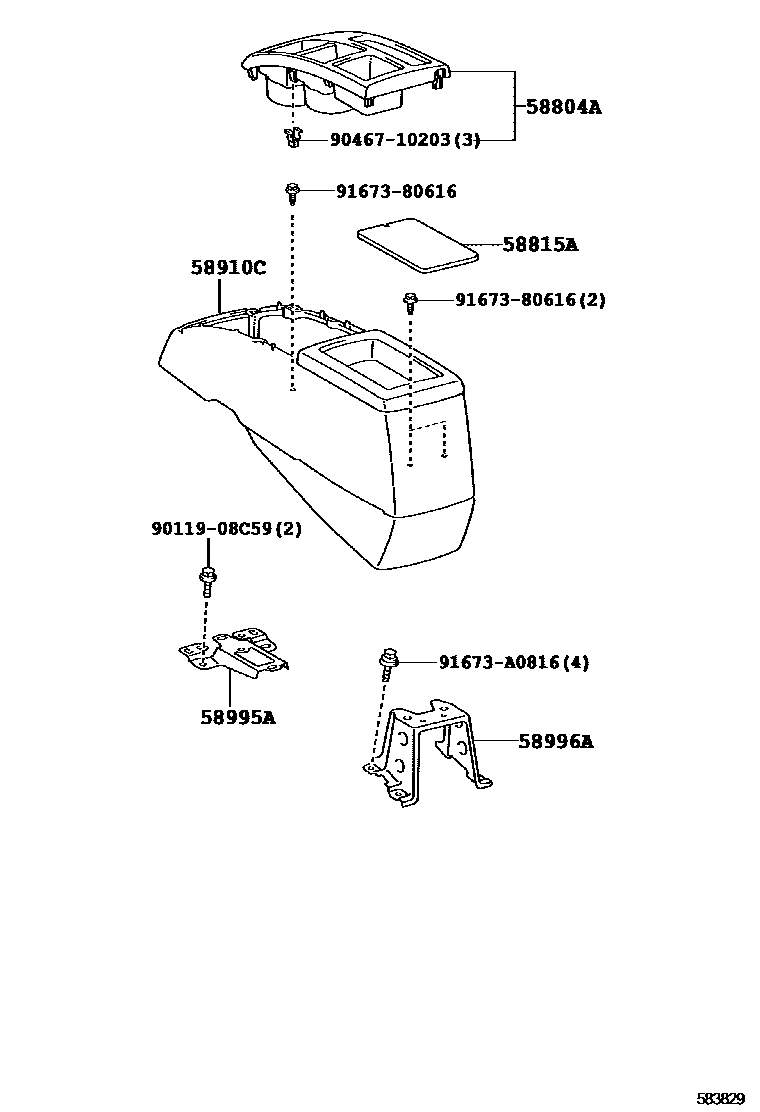

Toyota RUKUS — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12091-B0iAZE151..N201003-201512

DK.GRAY,TRIM1#

main58804-12100-B0iAZE151..S201003-201512

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-12170iAZE151..N201003

58910CBOX ASSY, CONSOLE, REAR

main58910-12520-B0iAZE151..S201003-201107

DK.GRAY,TRIM1#

main58910-12570-B0iAZE151..N201003-201512

DK.GRAY,TRIM1#

main58910-12680-B0iAZE151..S201108-201512

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12110iAZE151201003

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12180iAZE151..N201003

main58996-12210iAZE151..S201003

9011908C59

main90119-08C59

9046710203

main90467-10203

9167380616

main91673-80616

91673A0816

main91673-A0816

9 parts on this diagram · 3 diagrams in section
