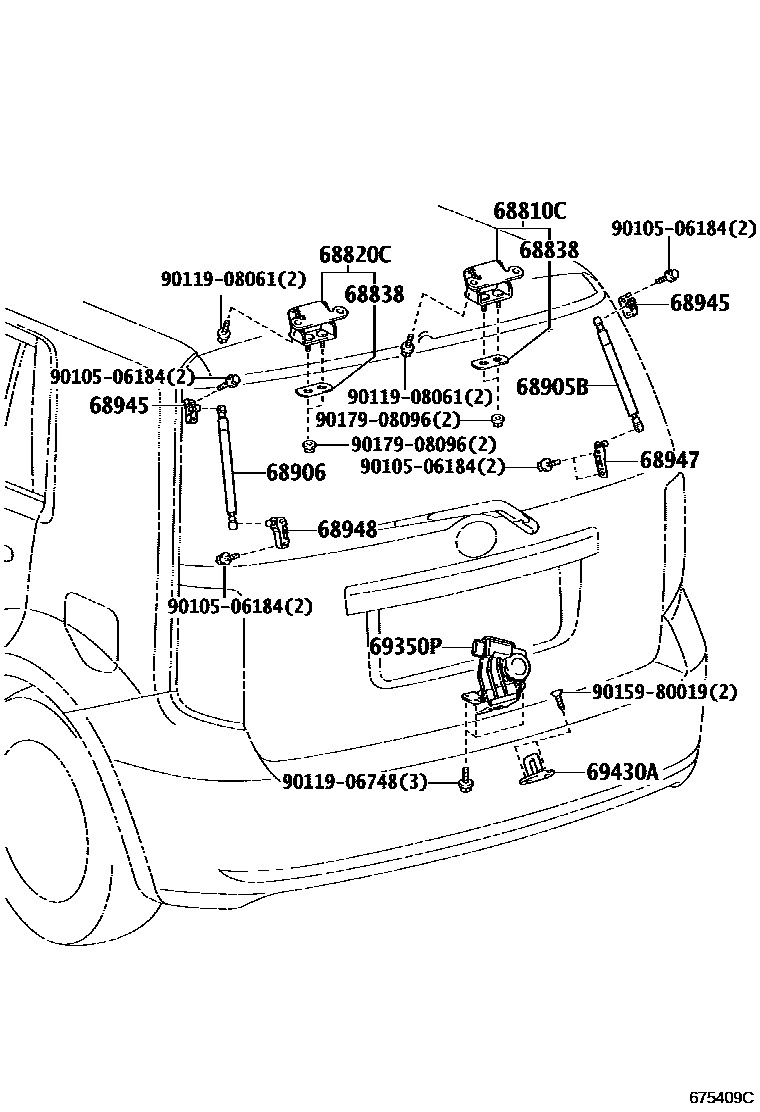

Toyota RUKUS — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
9010506184
main90105-06184
9011906748
main90119-06748
9011908061
main90119-08061
9015980019
main90159-80019
9017908096
main90179-08096
15 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota RUKUS
This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota RUKUS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, STAY SUB-ASSY, BACK DOOR, RH, STAY SUB-ASSY, BACK DOOR, LH.
