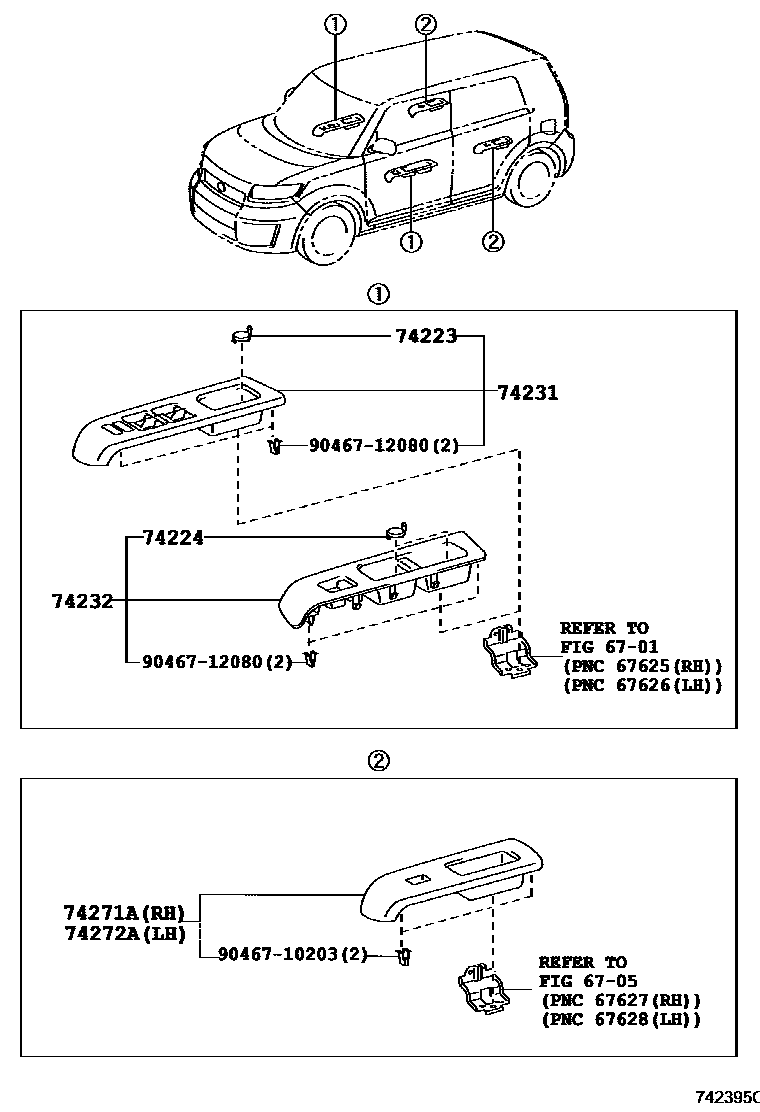

Toyota RUKUS — ARMREST & VISOR

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

74223CAP, DOOR ARMREST, RH

main74223-12130-B0i201003-201512

DK.GRAY,TRIM1#

74224CAP, DOOR ARMREST, LH

main74223-12130-B0×2i201003-201512

DK.GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12C00-C0i201003-201512

BLACK/DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12880-C0i201003-201512

BLACK/DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12410-C0i201003-201512

BLACK,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12420-C0i201003-201512

BLACK,TRIM1#

9046710203

main90467-10203

9046712080

main90467-12080

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota RUKUS

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota RUKUS. Key components include: FRONT DOOR PANEL & GLASS, REAR DOOR PANEL & GLASS, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH.
