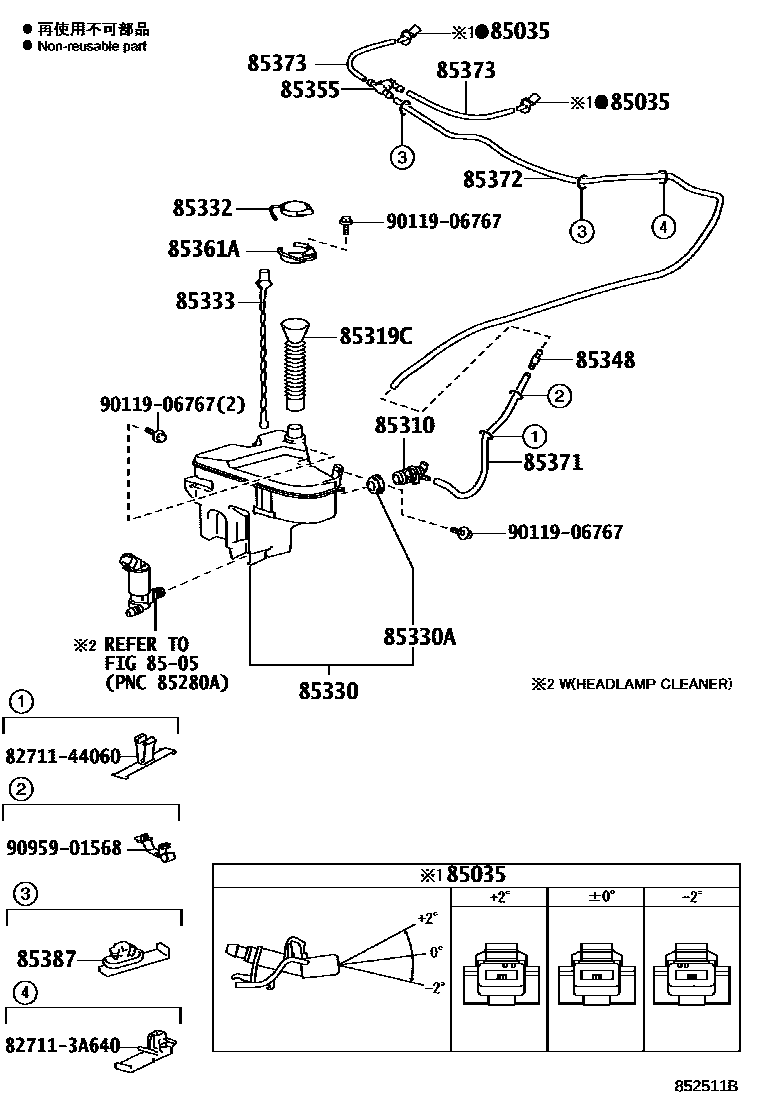

Toyota REIZ — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i201309

ANGLE 0

main85381-12310×2i201009-201309

ANGLE -2,ANGLE -2

main85381-12320×2i201309

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201009-201309

85319CHOSE, WASHER

main85319-0N010i201009-201309

85330JAR ASSY, WINDSHIELD WASHER

main85315-0N010i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main85315-0P010i201009-201309

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201309

85332CAP, WINDSHIELD WASHER JAR

main85316-0P010i201309

85333FILTER, WINDSHIELD WASHER JAR

main85312-0P010i201009-201309

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D030i201309

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201009-201309

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-0P010i201009-201309

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33070i201309

L=500

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59096i201009-201309

L=1900

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33141×6i201009-201309

L=370

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090×2i201009-201309

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

9011906767

main90119-06767

9095901568

main90959-01568

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota REIZ

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota REIZ. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER, JAR ASSY, WINDSHIELD WASHER.
