Toyota REIZ — WINDSHIELD WASHER

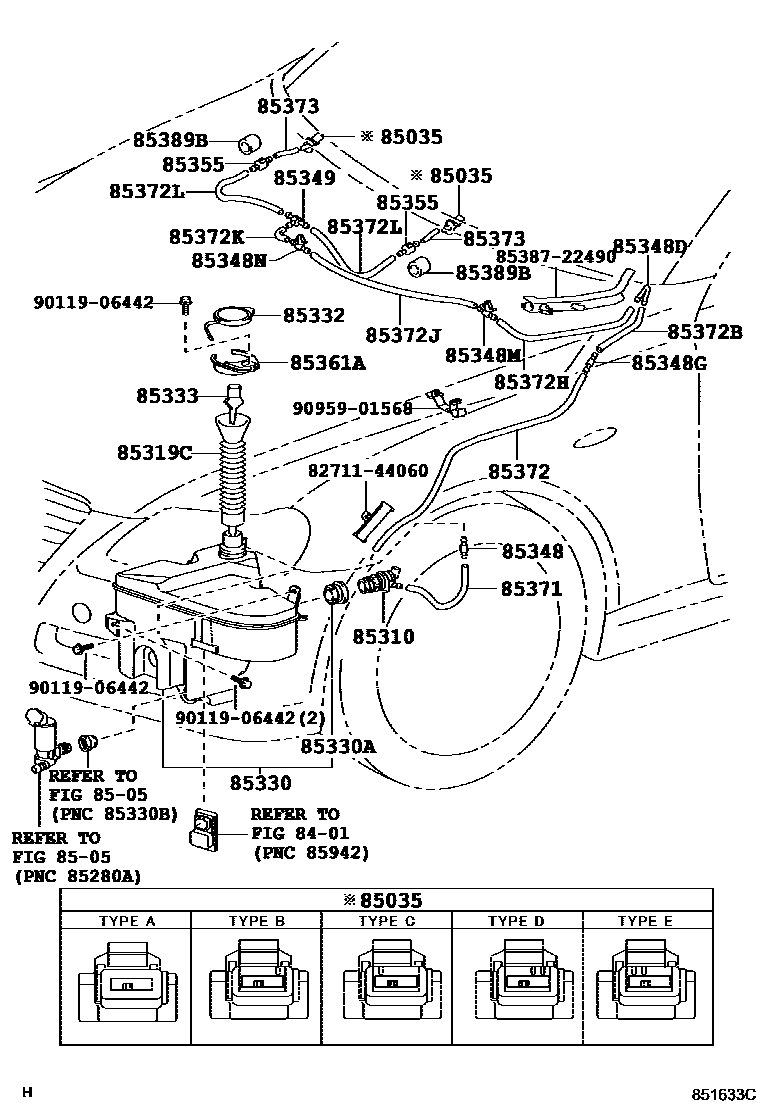

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85035NOZZLE SUB-ASSY, WASHER
main85381-30110×2i200710
TYPE A:REFER ILLUST.
main85381-30130×2i200510-200710
TYPE B:REFER ILLUST.
main85381-30140×2i200710
TYPE C:REFER ILLUST.
main85381-30150×2i200710
TYPE D:REFER ILLUST.
main85381-30160×2i200710
TYPE E:REFER ILLUST.
8505HEADLAMP CLEANER
→ Go to FIG 85-05
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-21010i200510-200710
85319CHOSE, WASHER
main85319-22280i200510-200710
85330JAR ASSY, WINDSHIELD WASHER
main85315-0N010supersedes 85315-30360i200510-200710
2.5S SPECIAL VERSION
85330ABUSH, WINDSHIELD WASHER JAR
main85336-60300i200710
85332CAP, WINDSHIELD WASHER JAR
main85316-48060i200510-200710
85333FILTER, WINDSHIELD WASHER JAR
main85312-30080i200510-200710
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i200510-200710
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-12360i200510-200710
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i200510-200710
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-20800i200510-200710
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85375-17050i200510-200710
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-28110i200510-200710
85355VALVE, WINDSHIELD WASHER HOSE
main85321-26020×2i200510-200710
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85337-48060i200510-200710
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i200510-200710
L=1450(*H,L=150); L=1450(*H,L=150),2.5S SPECIAL VERSION
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-07001i200510-200710
L=1800(*H,L=1160)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90446-07001i200510-200710
L=1800(*H,L=200)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90446-07001i200510-200710
L=1800(*H,L=270)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001i200510-200710
L=1800(*H,L=700)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main85355-14481i200510-200710
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90099-33080×10i200510-200710
L=1450(*H,L=500)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×10i200510-200710
L=1450(*H,L=50)
85389BPROTECTOR, WINDSHIELD WASHER
main85389-26080×2i200510-200710
8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-44060
8538722490CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-22490
9011906442
main90119-06442
9095901568
main90959-01568

30 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota REIZ

This section contains 30 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota REIZ. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER.
