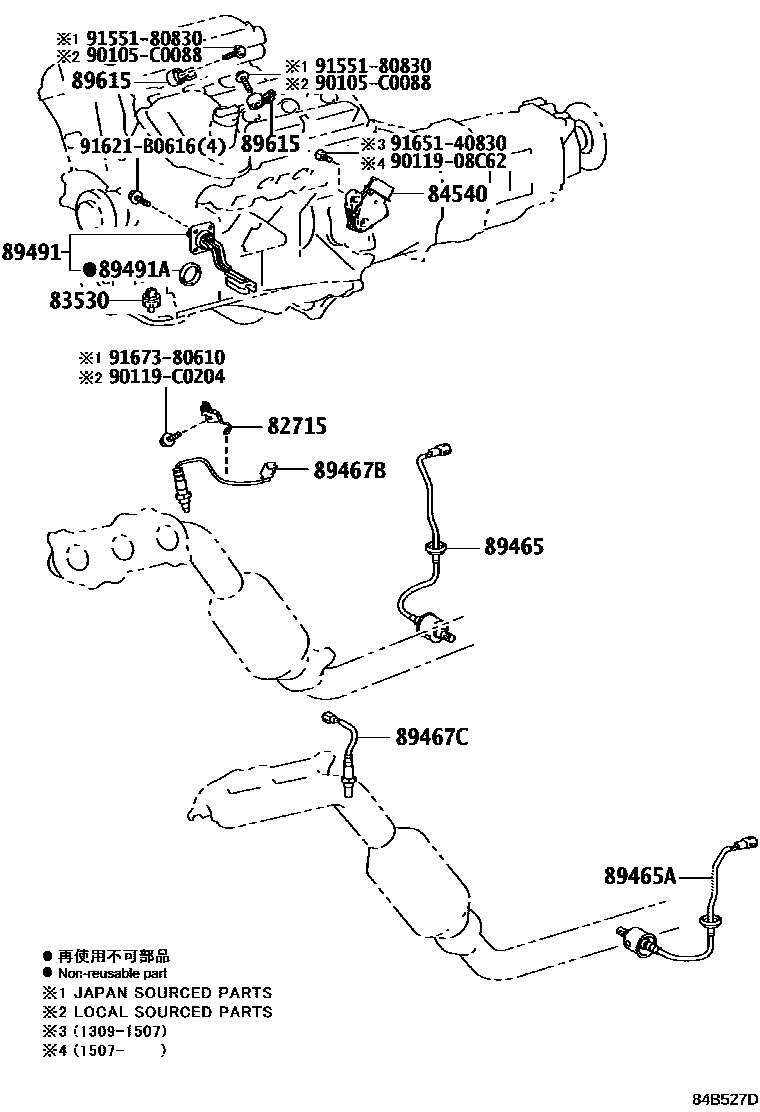

Toyota REIZ — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 2/2 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1STEERING 0010 1SEAT 0011 1DOOR,ROOF,FLOOR & LUGGAGE 0012 1DOOR,ROOF,FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-22850iGRX131201009-201309

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRX13#201009-201309

DENSO

main83530-60020iGRX13#201309

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-04010iGRX132201609-201709

P/N LABEL=8454004010

main84540-71010iGRX13#201309-201709

P/N LABEL=8454071010

89465SENSOR, OXYGEN

main89465-0P020iGRX131201009-201309

89465ASENSOR, OXYGEN NO.2

main89465-0P020iGRX131201009-201309

89467BSENSOR, AIR FUEL RATIO

main89467-0P010iGRX132201309

main89467-0P020iGRX131201309-201609

main89467-22040iGRX132201009-201309

main89467-22050iGRX131201009-201309

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0P010iGRX13#201309

main89467-22040iGRX13#201009-201309

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRX13#201009-201110

main89491-30061iGRX13#201111-201309

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRX13#201009-201309

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRX13#201009-201309

90105C0088

main90105-C0088

9011908C62

main90119-08C62

90119C0204

main90119-C0204

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

9167380610

main91673-80610

17 parts on this diagram · 12 diagrams in section
