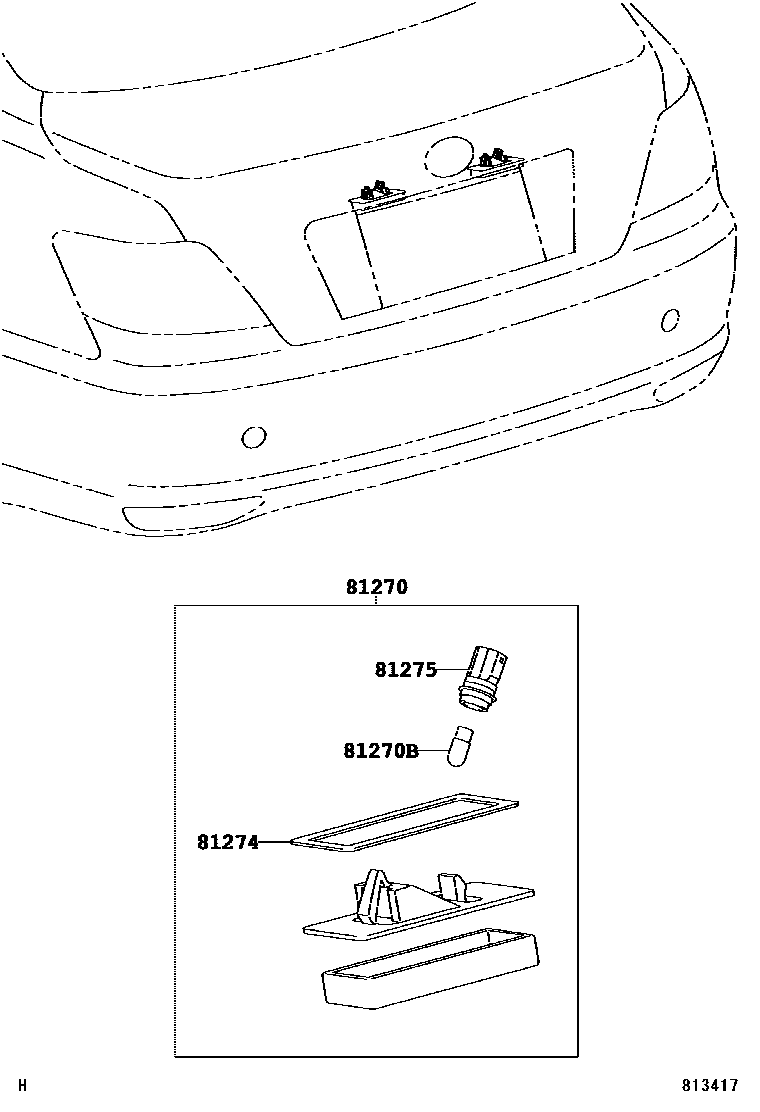

Toyota REIZ — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-0P010×2i200510-200610

main81270-0P011×2i200611-200710

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i200510-200610

12V 5W

81274GASKET, LICENSE PLATE LAMP BODY

main81274-0P010×2i200510-200610

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81278-0P010×2i200510-200610

4 parts on this diagram · 1 diagram in section

REAR LICENSE PLATE LAMP for Toyota REIZ

This section contains 4 genuine Toyota parts for the REAR LICENSE PLATE LAMP system of the Toyota REIZ. Key components include: LAMP ASSY, LICENSE PLATE, BULB (FOR LICENSE PLATE LAMP), GASKET, LICENSE PLATE LAMP BODY, SOCKET AND WIRE, LICENSE PLATE LAMP.
