Toyota REIZ — REAR COMBINATION LAMP

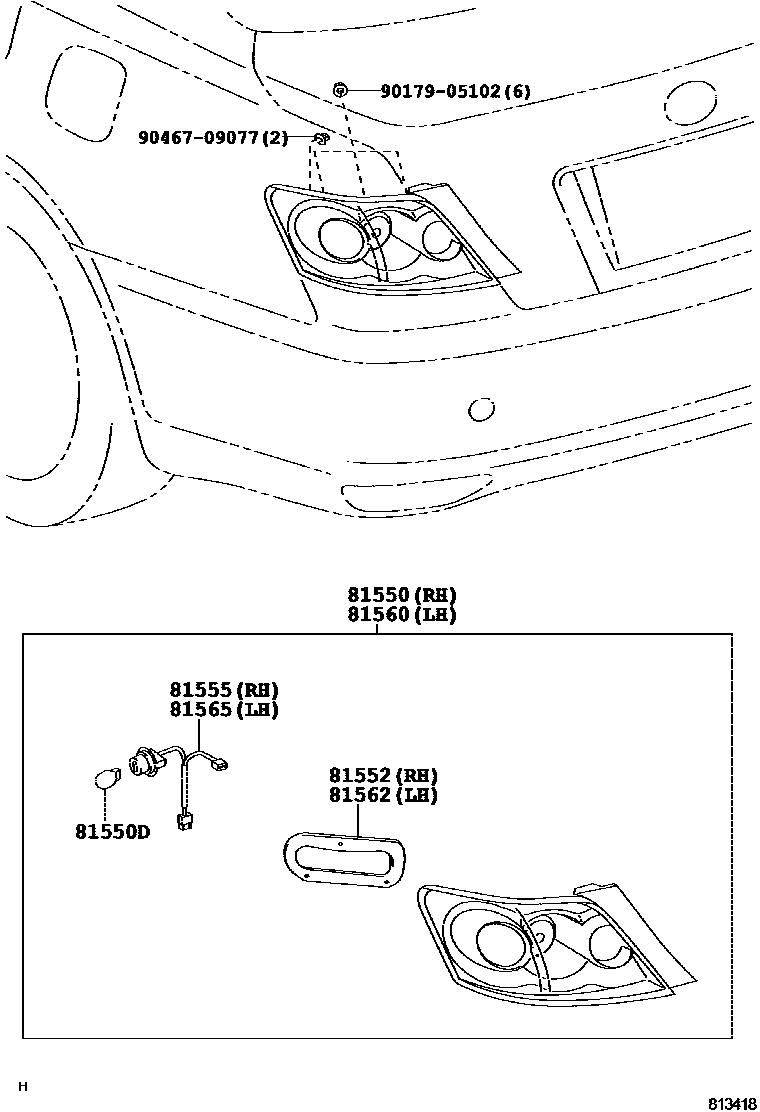

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-0P010i200510-200610
main81550-0P011i200611-200710
main81550-0P020i200710
81550DBULB(FOR REAR COMBINATION LAMP)
main90981-15011×2i200510-200610
12V 21W,AMBER
main90981-15021×2i200710
12V 21W,AMBER
81552GASKET, REAR COMBINATION LAMP LENS, RH
main81552-0P010i200510-200710
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-0P010i200510-200710
main81555-0P020i200710
81560LAMP ASSY, REAR COMBINATION, LH
main81560-0P010i200510-200610
main81560-0P011i200611-200710
main81560-0P020i200710
81562GASKET, REAR COMBINATION LAMP LENS, LH
main81562-0P010i200510-200710
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-0P010i200510-200710
main81555-0P020i200710
9017905102
main90179-05102
9046709077
main90467-09077

9 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota REIZ

This section contains 9 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota REIZ. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), GASKET, REAR COMBINATION LAMP LENS, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LAMP ASSY, REAR COMBINATION, LH.
