Toyota REIZ — PARTIAL ENGINE ASSEMBLY

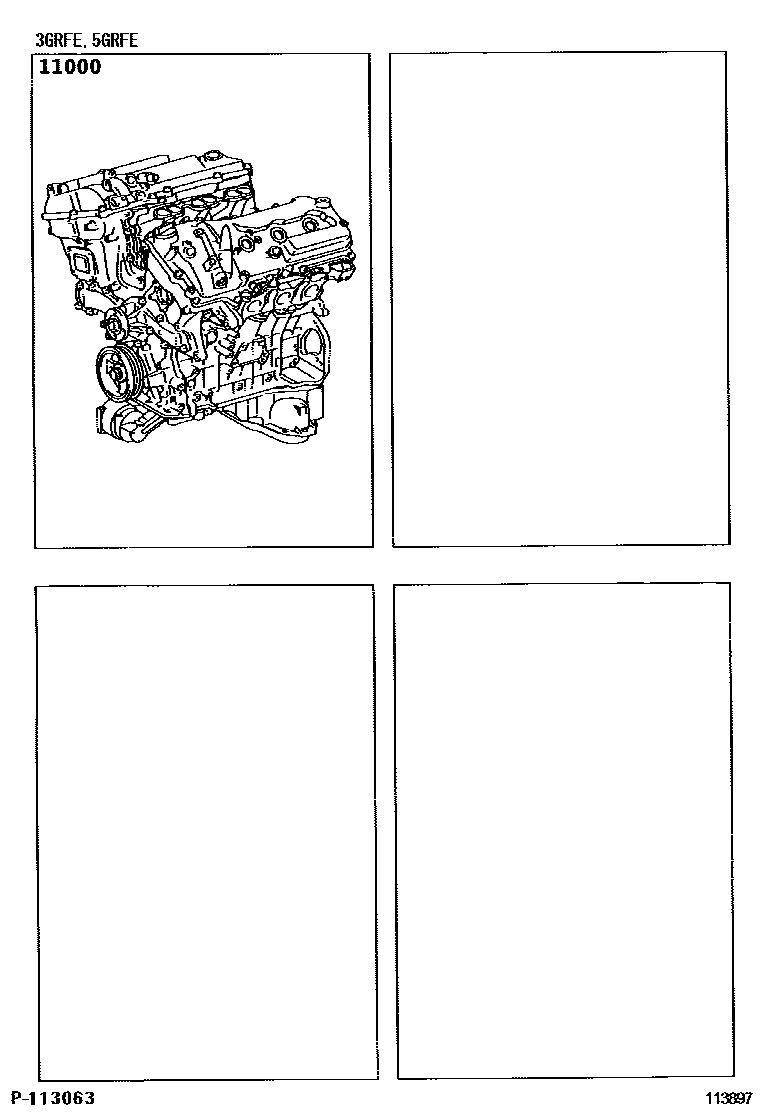

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-0P020i200510-200710
main19000-0P030i200510-200710
main19000-0P160i200710-200901
main19000-0P161i200902
main19000-0P170i200710-200901
main19000-0P171i200902

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota REIZ

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota REIZ. Key components include: ENGINE ASSY, PARTIAL.
