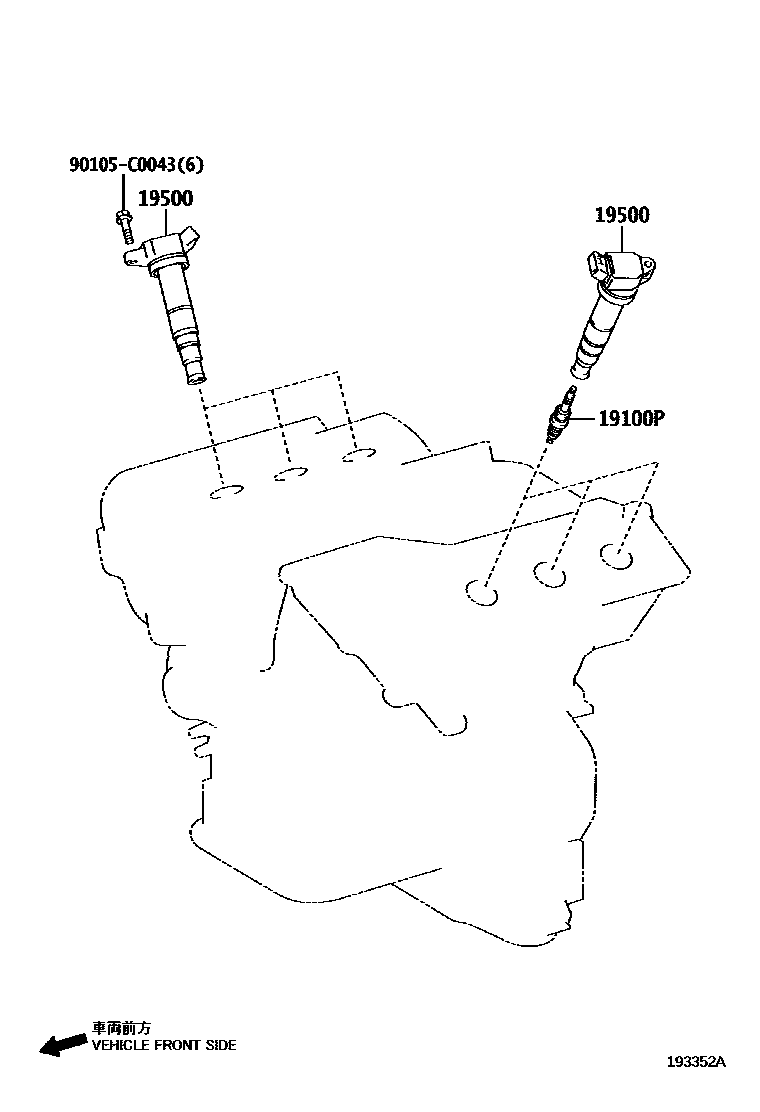

Toyota REIZ — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01247×6i200510-200710

FK20HR11

19500COIL ASSY, IGNITION

main90919-02250×6i200510-200710

(J)

main90919-C2001×6i200510-200710

(L)

main90919-C2004×6i200912-201009

90105C0043

main90105-C0043

3 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota REIZ

This section contains 3 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota REIZ. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
