Toyota REIZ — HEATING & AIR CONDITIONING - WATER PIPING

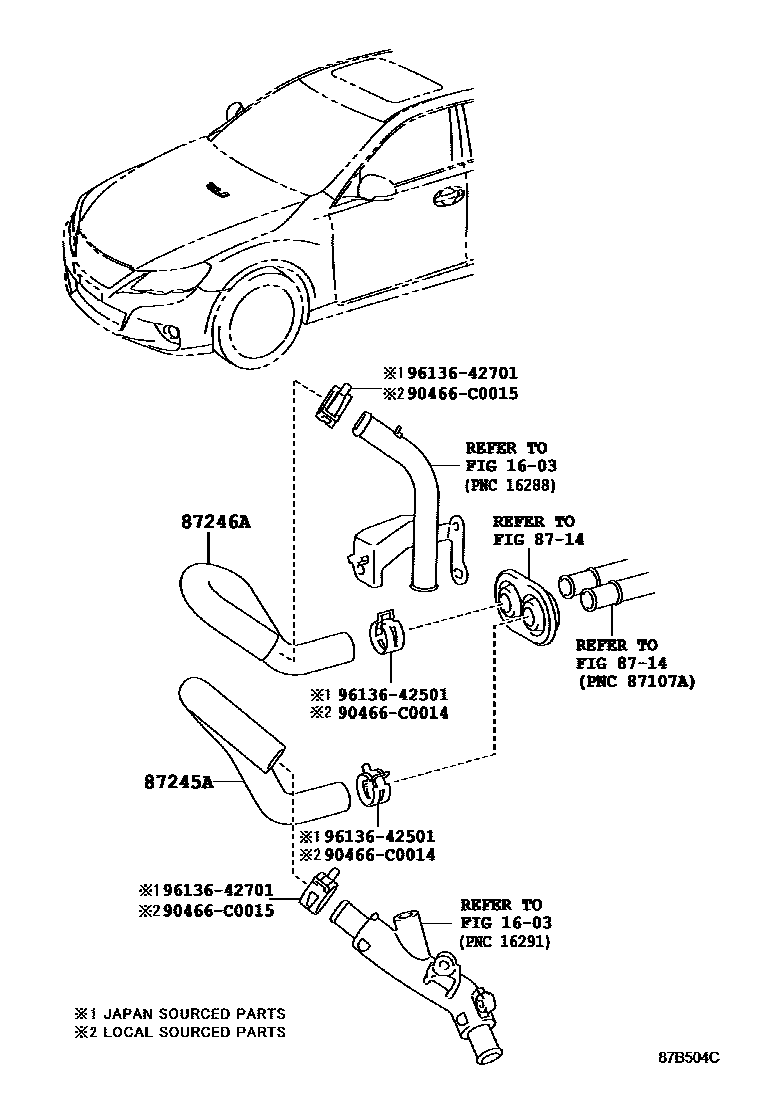

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-0N010i201009-201309

87246AHOSE, HEATER WATER, OUTLET A

main87245-0N020i201009-201309

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9613642501

main96136-42501

9613642701

main96136-42701

8 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota REIZ

This section contains 8 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota REIZ. Key components include: RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - COOLER UNIT, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, OUTLET A.
