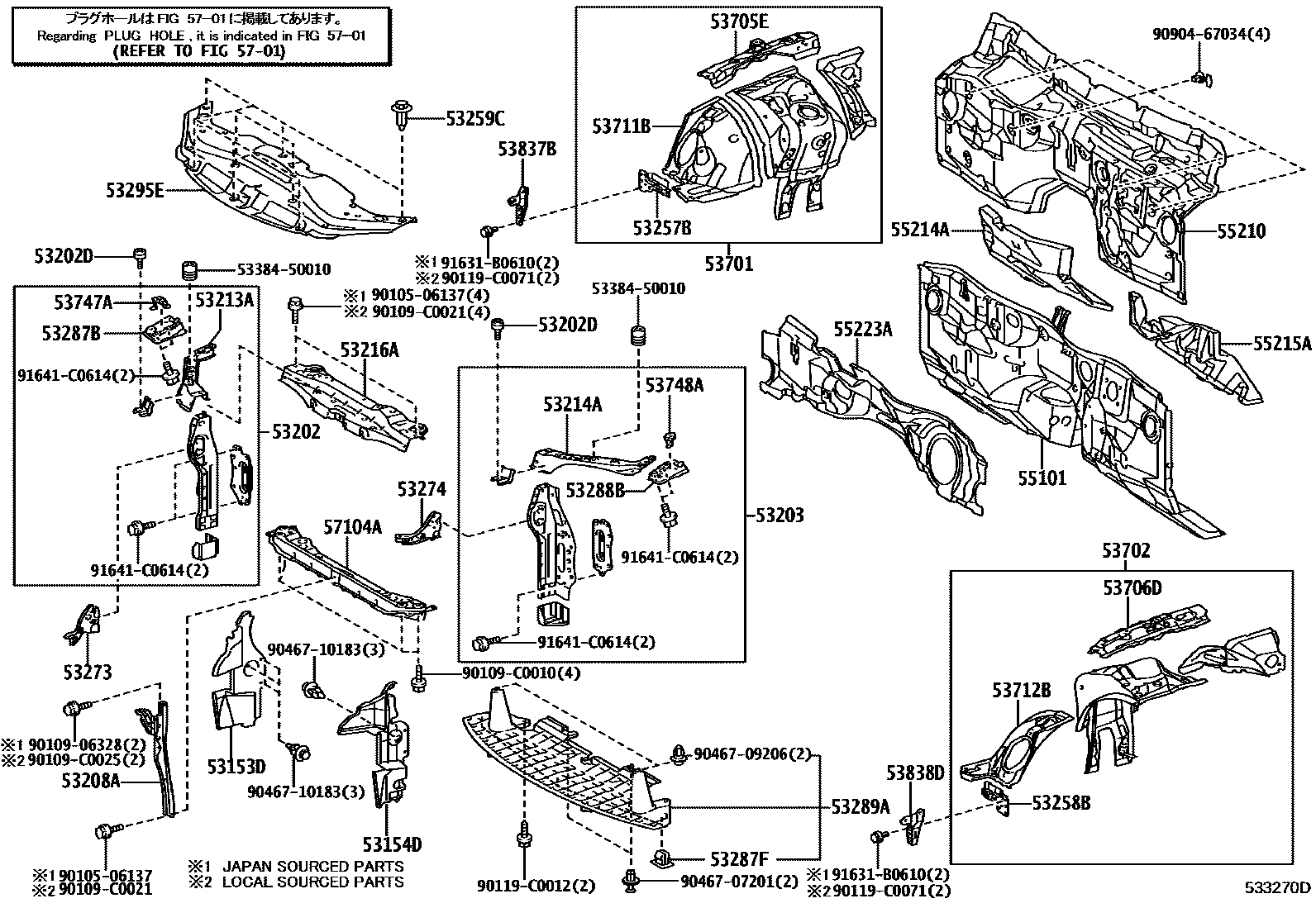

Toyota REIZ — FRONT FENDER APRON & DASH PANEL
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
5701HOLE PLUG
57104AMEMBER SUB-ASSY, FRONT CROSS
5338450010BAR, HOOD SILENCER SUPPORT
main53384-50010
9010506137
main90105-06137
9010906328
main90109-06328
90109C0010
main90109-C0010
90109C0021
main90109-C0021
90109C0025
main90109-C0025
90119C0012
main90119-C0012
90119C0071
main90119-C0071
9046707201
main90467-07201
9046709206
main90467-09206
9046710183
main90467-10183
9090467034
main90904-67034
91631B0610
main91631-B0610
91641C0614
main91641-C0614
50 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota REIZ
This section contains 50 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota REIZ. Key components include: GUIDE, RADIATOR GRILLE SIDE AIR, RH, GUIDE, RADIATOR GRILLE SIDE AIR, LH, SUPPORT SUB-ASSY, RADIATOR, RH, CUSHION, RADIATOR SUPPORT, SUPPORT SUB-ASSY, RADIATOR, LH.
