Toyota REIZ — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7; SPORT & WITH(*MR&*NS),SILVER ME.,1F7; SPORT & WITH(*MR),SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7; SPORT & WITH(*MR&*NS),SILVER ME.,1F7; SPORT & WITH(*MR),SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7; SPORT & WITH(*MR&*NS),SILVER ME.,1F7; SPORT & WITH(*MR),SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014860022
main90148-60022
90148C0006
main90148-C0006
90159C0001
main90159-C0001
9017905114
main90179-05114
90189C0014
main90189-C0014
30 parts on this diagram · 1 diagram in section

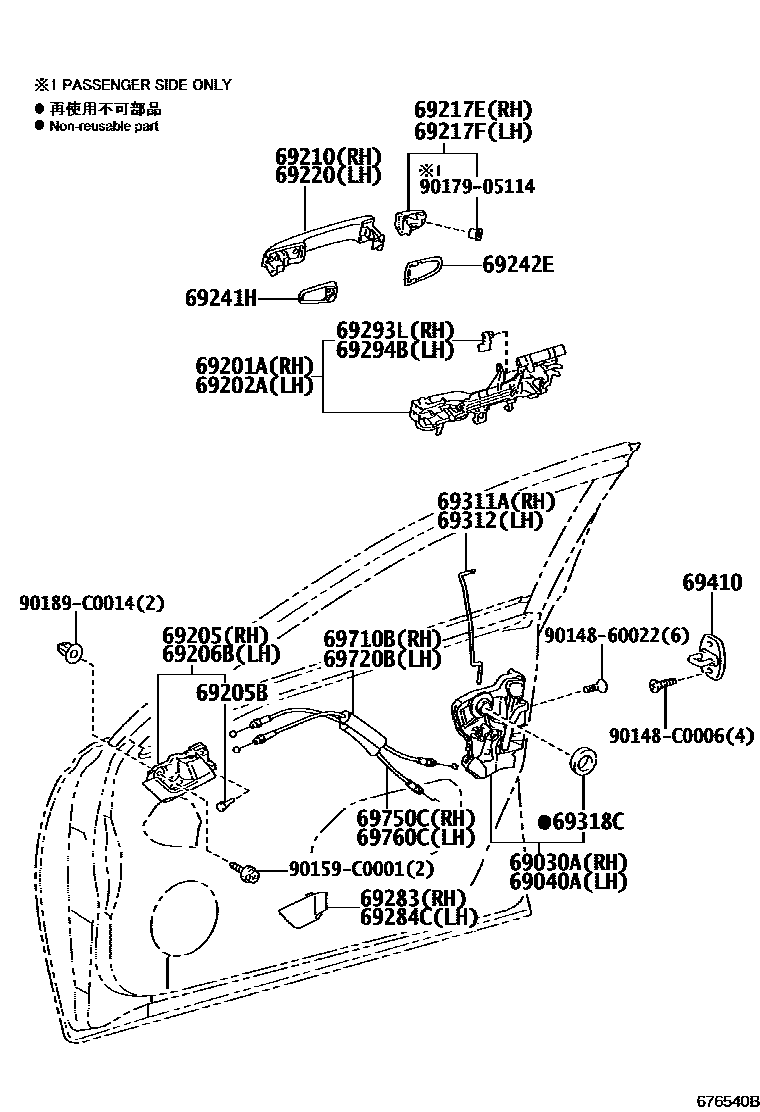

FRONT DOOR LOCK & HANDLE for Toyota REIZ
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota REIZ. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
