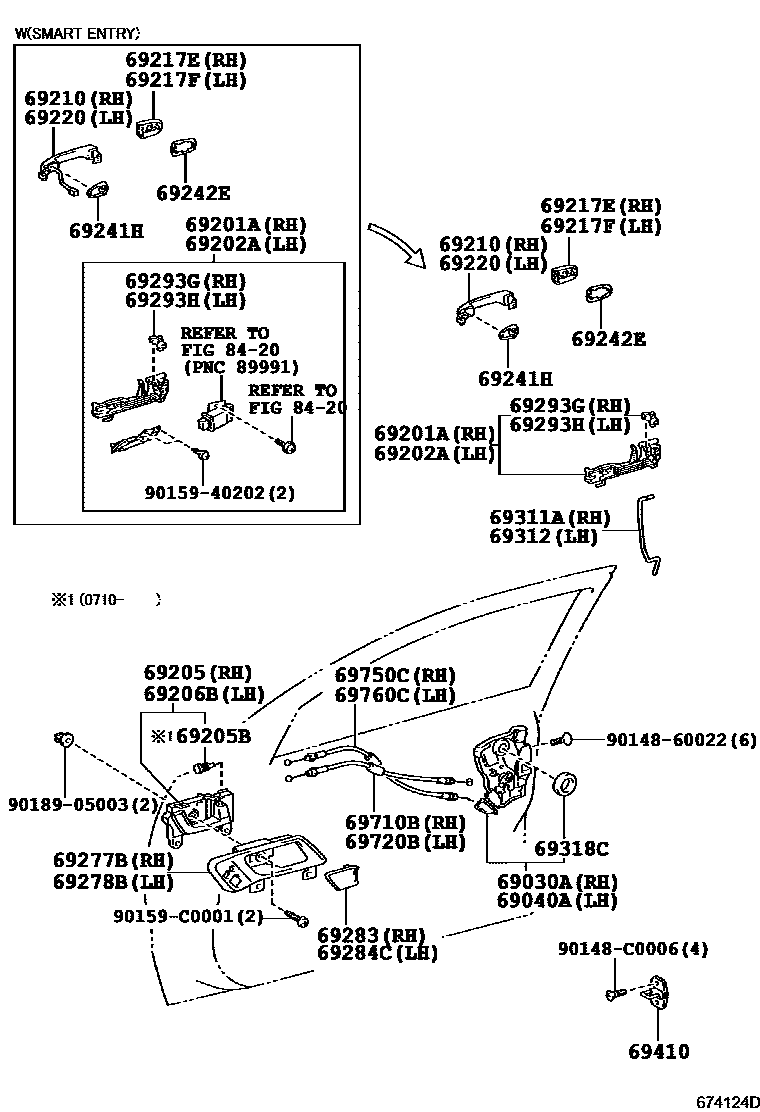

Toyota REIZ — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
TURQUOISE M.M.,776
DARK BLUE MC.,8P8
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
TURQUOISE M.M.,776
DARK BLUE MC.,8P8
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
TURQUOISE M.M.,776
DARK BLUE MC.,8P8
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
WHITE PEARL CS.,062
SILVER ME.,1F7
BLACK,202
DK. RED M.M.,3Q3
BEIGE ME.,4R4
TURQUOISE M.M.,776
DARK BLUE MC.,8P8
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
EMV & NAVIGATION SYSTEM-WITH(DVD)
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
9014860022
main90148-60022
90148C0006
main90148-C0006
9015940202
main90159-40202
90159C0001
main90159-C0001
9018905003
main90189-05003
33 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota REIZ
This section contains 33 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota REIZ. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
