Toyota REIZ — FLOOR PAN & LOWER BACK PANEL

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0P010i201009-201309

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0P020i201309

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30071i201309

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30071i201009-201309

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-0N010i201405

main57257-0P010i201009-201309

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-0P010i201009-201309

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-0N010i201009-201309

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-30080i201009-201309

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-30080i201009-201309

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-0P010i201309

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-0P010i201009-201309

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30030i201009-201309

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30030i201009-201309

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0P010i201309

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-0P010i201309

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-0N010i201009-201309

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-22030i201009-201309

57666CREINFORCEMNT, REAR FLOOR CROSSMEMBER

main57666-22030i201009-201309

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-0P010i201212-201309

main58105-30040i201009-201211

58111APAN, FRONT FLOOR, RH

main58111-30450i201309-201310

main58111-30451i201310-201405

main58111-30460i201405

58112APANEL, FRONT FLOOR, LH

main58112-30161i201009-201309

main58112-30162i201310

58113APANEL, FRONT FLOOR, CENTER

main58113-0N010i201009-201309

58136COVER, FRONT FLOOR HOLE

main58136-51010×2i201009-201309

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050i201009-201309

58211HPAN, CENTER FLOOR

main58211-0N010i201009-201309

58212CPAN, CENTER FLOOR, FRONT

main58202-0N010i201009-201309

58245ABRACKET, REAR SEAT HINGE, CENTER NO.1

main58245-0P010i201009-201309

58261ACOVER, TRANSMISSION

main58261-30231i201009-201309

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-0P010i201009-201309

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-0P010i201309

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-0N010i201009-201309

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0P020i201009-201309

58311PAN, REAR FLOOR

main58311-0P010i201009-201309

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-0P010i201009-201309

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-0P020i201009-201309

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-0P020i201009-201309

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-0P021i201009-201309

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0N010i201009-201309

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-0N010i201009-201309

58798CCUSHION, JACK CARRIER

main58798-0N020i201009-201309

FRONT

main58798-0P010i201309

REAR

9010508088

main90105-08088

90105C0271

main90105-C0271

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506301

main90115-06301

90119C0411

main90119-C0411

9033905027

main90339-05027

91621G0816

main91621-G0816

50 parts on this diagram · 2 diagrams in section

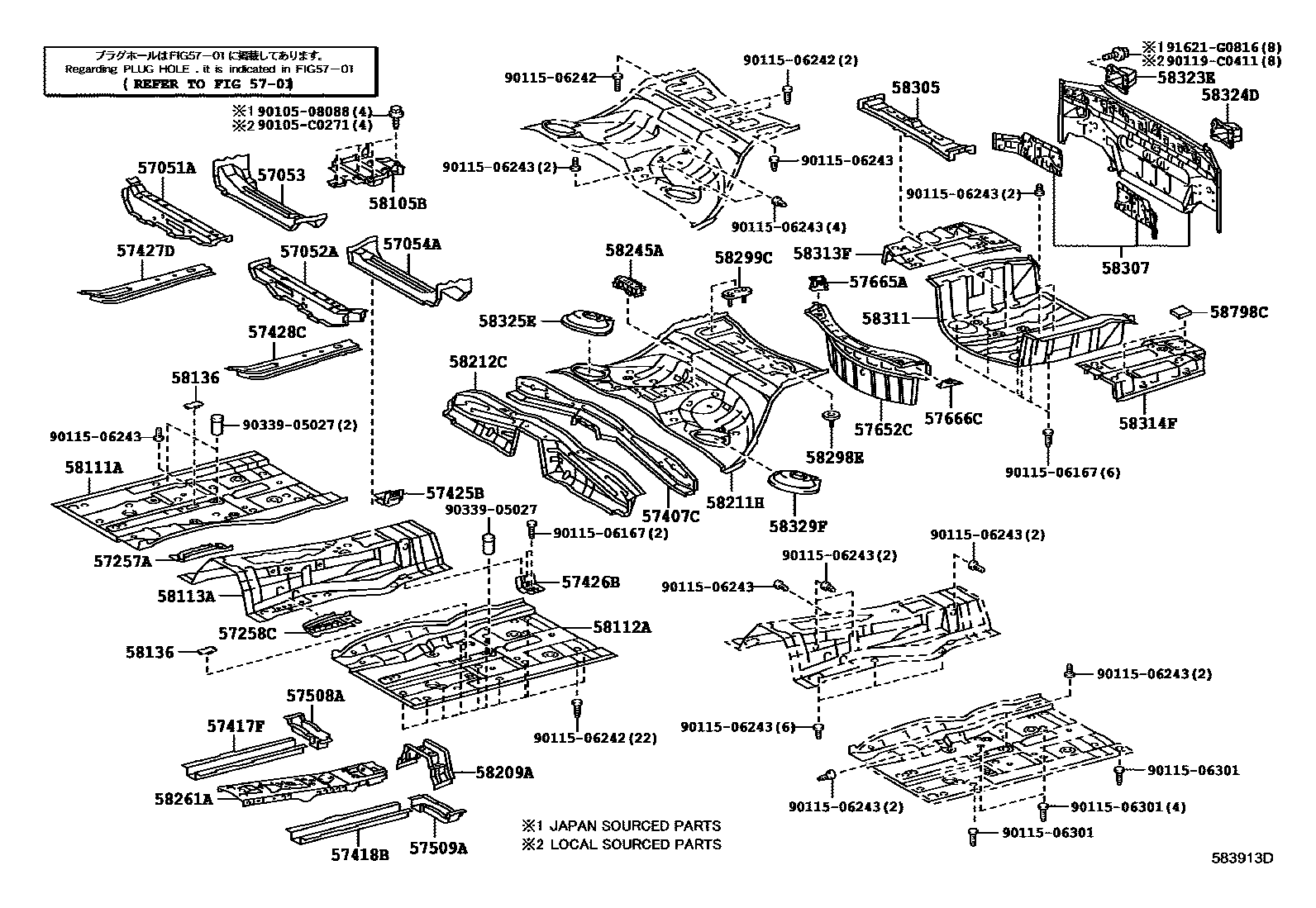

FLOOR PAN & LOWER BACK PANEL for Toyota REIZ

This section contains 77 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota REIZ. Key components include: PROTECTOR, DIFFERENTIAL SUPPORT, NO.1, PROTECTOR, DIFFERENTIAL SUPPORT, NO.2, HOLE PLUG, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH.
